OpenShift X.509 Authentication with Keycloak
- Authors
- Name
- Shane Boulden
- @shaneboulden
I think there's three things you can't escape in life - death, taxes, and X.509 certificates.
X.509 certificates are everywhere. Everytime you access a website protected by HTTPS you're presented with an X.509 certificate establishing the site's identity, and establishing identity is one of the core uses for X.509 certificates. X.509 certificates are used to establish identity because they provide a trusted, verifiable binding between a cryptographic key and an entity. The entity could be the identity of a server (like in this example), a software artifact (like a container image), a hardware manufacturer, or even a person / user (which we'll look at later). Let's take a look at a few examples.
NASA's high performance space flight computing project is a great example. The aim of this project is to develop a next-generation flight computing system that addresses computational performance, power management, fault tolerance, and connectivity needs of NASA missions through 2040 and beyond. The white paper is a really interesting read, and makes specific reference to X.509 certificates:
HPSC is manufactured using secure manufacturing techniques, which include the use of Hardware Security Modules (HSMs) during fabrication process to ensure authenticity of wafer, die and packaged parts. Every HPSC device has a factory inserted, unique X.509 certificates traceable to a trusted certificate authority (CA).
In this instance, X.509 certificates are not identifying a server, but the identity of the hardware manufacturer. It provides a way of verifying the software supply-chain for high-performance computing hardware.
X.509 certificates are also core to Sigstore artifact signing, which I've covered in a couple of blogs previously:
In this case X.509 certificates are used to identify the signer of an artifact. Sigstore also uses a novel mechanism to do this using short-lived X.509 certificates.
X.509 certificates have a time period that they are valid for. This is designed to enforce trust boundaries and limit risk. For example, if a private key associated with an X.509 certificate is stolen, the attacker could impersonate the certificate holder, and a validity period ensures the key can't be used forever. Certificate expiration also encourages rotation; as algorithms and key sizes become obsolete over time (e.g. SHA-1, RSA-1024), expiration forces regular updates to newer, safer cryptographic algorithms.

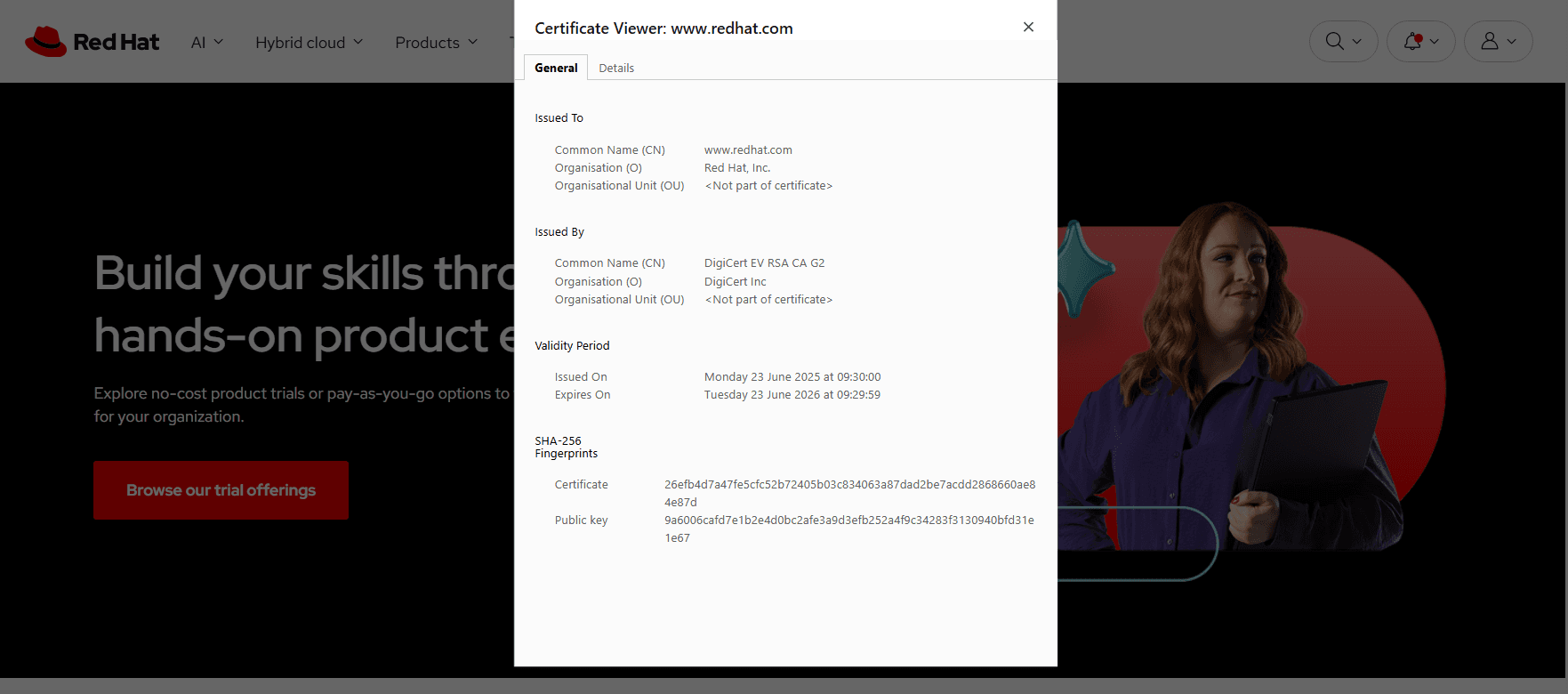

You can see an example of this here, for redhat.com:
Note that this certificate was only recently rotated - it was re-issued 23 June 2025, and expires 23 June 2026.
Sigstore uses X.509 certificates and this validity period in a novel way to support its keyless signing workflow. Specifically, the Fulcio component of Sigstore signs X.509 certificates that are valid for only 10 minutes, and embeds these in a transparency ledger, Rekor. This ensures that the user identity was valid at the time that the container image was signed, but also ensures that the certificates can no longer be used for signing other artifacts.

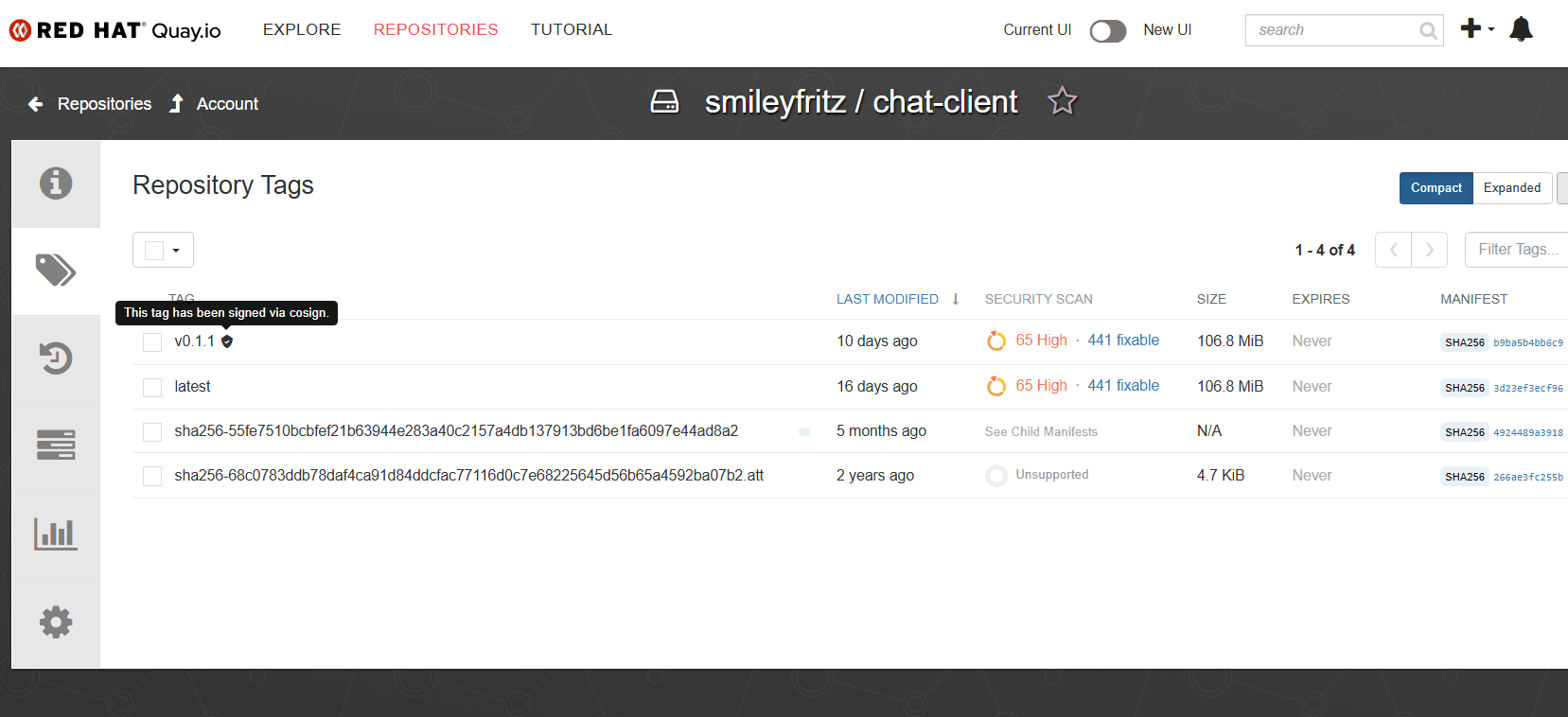

You can see this by inspecting a Rekor entry. I've signed the image quay.io/smileyfritz/chat-client@sha256:b9ba5b4bb6c9b8793edd17196682912afca2b59b559fd1c3326b382f90489d79 (it's best practice to sign images by digest with Sigstore). You can see that the image is signed at quay.io:
If I take a look at the rekor entry directly we can see the embedded X.509 certificates. Firstly let's search for the rekor entry:
$ rekor-cli get --log-index 356023054 --format json | jq
{
"Attestation": "",
"AttestationType": "",
"Body": {
"HashedRekordObj": {
"data": {
"hash": {
"algorithm": "sha256",
"value": "aacf700ada3bac8186eb749b143c328e00e7a92e81953ea5427cdc6107bbaa3b"
}
},
"signature": {
"content": "MEQCICajk2dOGirg2FT3WGIdMzKWvcSM6CFaDV1siM9/o+uhAiAEk2uBnS9Rg0nOX40ky+WvgLq5nWK9aE108CZi/Zwhrg==",
"publicKey": {
"content": "LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUMxVENDQWx5Z0F3SUJBZ0lVSW1BbzNuYW1uYUJHbVVPNFhXNjhUNVNaRTFBd0NnWUlLb1pJemowRUF3TXcKTnpFVk1CTUdBMVVFQ2hNTWMybG5jM1J2Y21VdVpHVjJNUjR3SEFZRFZRUURFeFZ6YVdkemRHOXlaUzFwYm5SbApjbTFsWkdsaGRHVXdIaGNOTWpVd09EQTJNRGd4TlRNMldoY05NalV3T0RBMk1EZ3lOVE0yV2pBQU1Ga3dFd1lICktvWkl6ajBDQVFZSUtvWkl6ajBEQVFjRFFnQUVLbEtmU3ZqajlVUlY4dUpYcU8vcktWdVNrS3Z6bUFXSWk0eDQKT05qMTFkcnRXMjk3T3d1elFOTi9BeU5ybW5hR3FrMUwrNVd0TXdMdjQyS1NLaFIxOGFPQ0FYc3dnZ0YzTUE0RwpBMVVkRHdFQi93UUVBd0lIZ0RBVEJnTlZIU1VFRERBS0JnZ3JCZ0VGQlFjREF6QWRCZ05WSFE0RUZnUVVGdFE5ClRzMS9jUjhOR3A0MmFCb3dFbTZSbjVrd0h3WURWUjBqQkJnd0ZvQVUzOVBwejFZa0VaYjVxTmpwS0ZXaXhpNFkKWkQ4d0pRWURWUjBSQVFIL0JCc3dHWUVYYzJoaGJtVXVZbTkxYkdSbGJrQm5iV0ZwYkM1amIyMHdMQVlLS3dZQgpCQUdEdnpBQkFRUWVhSFIwY0hNNkx5OW5hWFJvZFdJdVkyOXRMMnh2WjJsdUwyOWhkWFJvTUM0R0Npc0dBUVFCCmc3OHdBUWdFSUF3ZWFIUjBjSE02THk5bmFYUm9kV0l1WTI5dEwyeHZaMmx1TDI5aGRYUm9NSUdLQmdvckJnRUUKQWRaNUFnUUNCSHdFZWdCNEFIWUEzVDB3YXNiSEVUSmpHUjRjbVdjM0FxSktYcmplUEszL2g0cHlnQzhwN280QQpBQUdZZm5NMXFBQUFCQU1BUnpCRkFpQW8vVk5Db3VDaUV0dExJR0dBN3o1VEw3RUt2YU5jT1dZVUpkMjVVM2JCCm5nSWhBTVJRWmltTFFqTE44eHVyMHJNdjAvNXlQZndIcHBtY1dhRThKOHZrTVZONE1Bb0dDQ3FHU000OUJBTUQKQTJjQU1HUUNNR3BHZ1IyOERublpBRHJVdlhPODBmU3R5Z3c4MHpOWTZOMWliTjFhaUpOTUxRVDlIbGFPWXBLaQo0cGJmbXQ2aWVnSXdJV3VpanlyWEFVKzgzWW9DZmVmZ0I2ZHdyQkVPSVBUK0lPMXA1VDZUbEIreU1mM0htNHJRCmdtcEZ1UmtwSyt0NgotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg=="
}
}
}
},
"LogIndex": 356023054,
"IntegratedTime": 1754468139,
"UUID": "108e9186e8c5677ac1a9f6f1fc5783526f687932f20ebfaf8f53cfbbe5d78bf671d675c59c48bcc4",
"LogID": "c0d23d6ad406973f9559f3ba2d1ca01f84147d8ffc5b8445c224f98b9591801d"
}
The certificates we want are in the content, so let's extract and display with openssl:
$ rekor-cli get --log-index 356023054 --format json | jq -r '.Body.HashedRekordObj.signature.publicKey.content' | base64 -d | openssl x509 -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
22:60:28:de:76:a6:9d:a0:46:99:43:b8:5d:6e:bc:4f:94:99:13:50
Signature Algorithm: ecdsa-with-SHA384
Issuer: O=sigstore.dev, CN=sigstore-intermediate
Validity
Not Before: Aug 6 08:15:36 2025 GMT
Not After : Aug 6 08:25:36 2025 GMT
Subject:
Subject Public Key Info:
Public Key Algorithm: id-ecPublicKey
Public-Key: (256 bit)
pub:
04:2a:52:9f:4a:f8:e3:f5:44:55:f2:e2:57:a8:ef:
eb:29:5b:92:90:ab:f3:98:05:88:8b:8c:78:38:d8:
f5:d5:da:ed:5b:6f:7b:3b:0b:b3:40:d3:7f:03:23:
6b:9a:76:86:aa:4d:4b:fb:95:ad:33:02:ef:e3:62:
92:2a:14:75:f1
ASN1 OID: prime256v1
NIST CURVE: P-256
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature
X509v3 Extended Key Usage:
Code Signing
X509v3 Subject Key Identifier:
16:D4:3D:4E:CD:7F:71:1F:0D:1A:9E:36:68:1A:30:12:6E:91:9F:99
X509v3 Authority Key Identifier:
DF:D3:E9:CF:56:24:11:96:F9:A8:D8:E9:28:55:A2:C6:2E:18:64:3F
X509v3 Subject Alternative Name: critical
email:shane.boulden@gmail.com
1.3.6.1.4.1.57264.1.1:
https://github.com/login/oauth
1.3.6.1.4.1.57264.1.8:
..https://github.com/login/oauth
CT Precertificate SCTs:
Signed Certificate Timestamp:
Version : v1 (0x0)
Log ID : DD:3D:30:6A:C6:C7:11:32:63:19:1E:1C:99:67:37:02:
A2:4A:5E:B8:DE:3C:AD:FF:87:8A:72:80:2F:29:EE:8E
Timestamp : Aug 6 08:15:36.360 2025 GMT
Extensions: none
Signature : ecdsa-with-SHA256
30:45:02:20:28:FD:53:42:A2:E0:A2:12:DB:4B:20:61:
80:EF:3E:53:2F:B1:0A:BD:A3:5C:39:66:14:25:DD:B9:
53:76:C1:9E:02:21:00:C4:50:66:29:8B:42:32:CD:F3:
1B:AB:D2:B3:2F:D3:FE:72:3D:FC:07:A6:99:9C:59:A1:
3C:27:CB:E4:31:53:78
Signature Algorithm: ecdsa-with-SHA384
Signature Value:
30:64:02:30:6a:46:81:1d:bc:0e:79:d9:00:3a:d4:bd:73:bc:
d1:f4:ad:ca:0c:3c:d3:33:58:e8:dd:62:6c:dd:5a:88:93:4c:
2d:04:fd:1e:56:8e:62:92:a2:e2:96:df:9a:de:a2:7a:02:30:
21:6b:a2:8f:2a:d7:01:4f:bc:dd:8a:02:7d:e7:e0:07:a7:70:
ac:11:0e:20:f4:fe:20:ed:69:e5:3e:93:94:1f:b2:31:fd:c7:
9b:8a:d0:82:6a:45:b9:19:29:2b:eb:7a
There it is - an X.509 certificate, embedded in the Rekor entry. You can see the novel X.509 usage here; the certificate is only valid for 10 minutes:
Validity
Not Before: Aug 6 08:15:36 2025 GMT
Not After : Aug 6 08:25:36 2025 GMT
So, we can use X.509 certificates to verify the identity of a server, or the identity of an entity that signed an artifact (like a container image), or a hardware manufacturer. One of the other use cases for X.509 certificates is establishing the identity of a client. If you've ever worked at a bank, or for a government organisation, you may have come across this. It provides a high-degree of assurance that you are the user accessing a website, and extracts your username from your own X.509 certificate - essentially, an X.509 certificate tied to your username. This is typically called 'mutual TLS', as it requires the client to establish the identity of the server, but also the server to establish the identity of the client.
You can think of this as an earlier implementation of passkeys. Passkeys don't use X.509 certificates, but FIDO2 credentials. Passkeys and the associated WebAuthn standard are quickly gaining traction, and I wrote an article on how you can use WebAuthn with OpenShift and Keycloak to support phishing-resistant multifactor authentication for OpenShift. But, X.509 client authentication is still used in many places.
In this article I'll show how you can configure X.509 client authentication for OpenShift, using Keycloak. Let's take a look!
Creating certificates
Before we get started and installing and configuring Keycloak, we need a valid domain and TLS certificate. I'm going to use my own domain for this and Letsencrypt to generate certificates.
You can use certbot to generate certificates using Letsencrypt. I've created a Python virtual environment:
python3 -m venv certbot-venv
source ~/certbot-venv/bin/activate
pip3 install certbot certbot_dns_route53
Because my domain is hosted via Route53, I've created an IAM role for certbot to use to generate certificates, and can create these via the client:
AWS_PROFILE=certbot certbot certonly --logs-dir /home/user/certbot/log --config-dir /home/user/certbot/config --work-dir /home/user/certbot/work -d keycloak.blueradish.net --dns-route53 -m shane.boulden@gmail.com --agree-tos --non-interactive
Now I have a TLS certificate and key available:
Successfully received certificate.
Certificate is saved at: /home/user/certbot/config/live/keycloak.blueradish.net/fullchain.pem
Key is saved at: /home/user/certbot/config/live/keycloak.blueradish.net/privkey.pem
I also need to point my CNAME record for keycloak.blueradish.net to the OpenShift router, so that the route works once Keycloak is deployed to OpenShift. You can get the canonical hostname for OpenShift via:
$ oc get route/console -n openshift-console -o json | jq -r '.status.ingress[0].routerCanonicalHostname'
router-default.apps.cluster1.sandbox247.opentlc.com

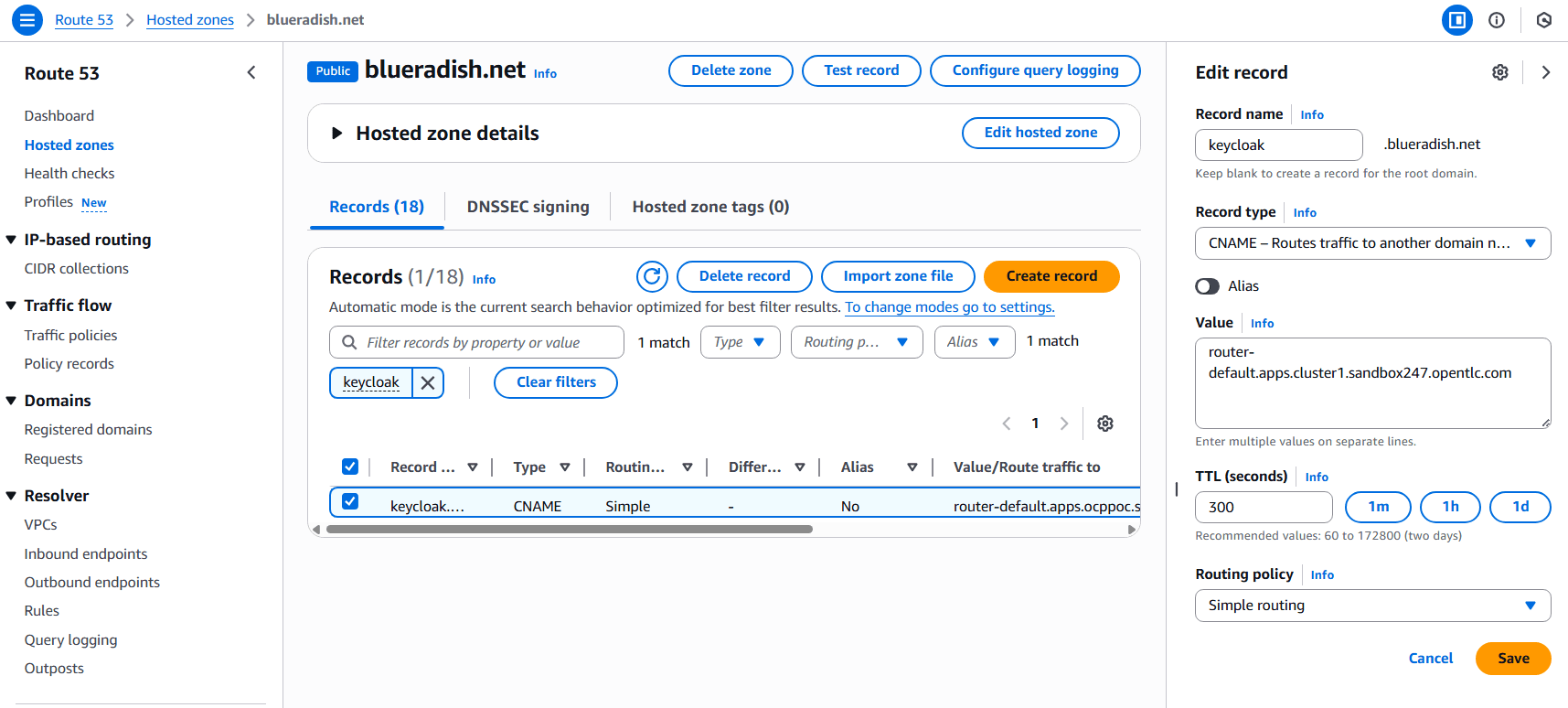

And now create a CNAME record for router-default.apps.cluster1.sandbox247.opentlc.com to keycloak.blueradish.net:
We also need a secret created in OpenShift to hold the TLS certificates. I'm going to install Keycloak into the keycloak project, and create a secret like this:
oc create secret tls keycloak-tls --cert /home/user/certbot/config/live/keycloak.blueradish.net/fullchain.pem --key /home/user/certbot/config/live/keycloak.blueradish.net/privkey.pem -n keycloak
Setting up PostgreSQL
I'm going to use the Red Hat Build of Keycloak for this article. This is an enterprise-grade product created from the Keycloak open source project.
RHBK uses PostgreSQL for a database. Firstly, let's create a secret for the database credentials:
oc create secret generic keycloak-db-secret \
--from-literal=username=keycloak-user \
--from-literal=password=keycloak-password
Now create a PostgreSQL instance using a StatefulSet:
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: postgresql-db
spec:
serviceName: postgresql-db-service
selector:
matchLabels:
app: postgresql-db
replicas: 1
template:
metadata:
labels:
app: postgresql-db
spec:
containers:
- name: postgresql-db
image: postgres:15
volumeMounts:
- mountPath: /data
name: cache-volume
env:
- name: POSTGRES_USER
valueFrom:
secretKeyRef:
name: keycloak-db-secret
key: username
- name: POSTGRES_PASSWORD
valueFrom:
secretKeyRef:
name: keycloak-db-secret
key: password
- name: PGDATA
value: /data/pgdata
- name: POSTGRES_DB
value: keycloak
volumes:
- name: cache-volume
emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
name: postgres-db
spec:
selector:
app: postgresql-db
type: LoadBalancer
ports:
- port: 5432
targetPort: 5432

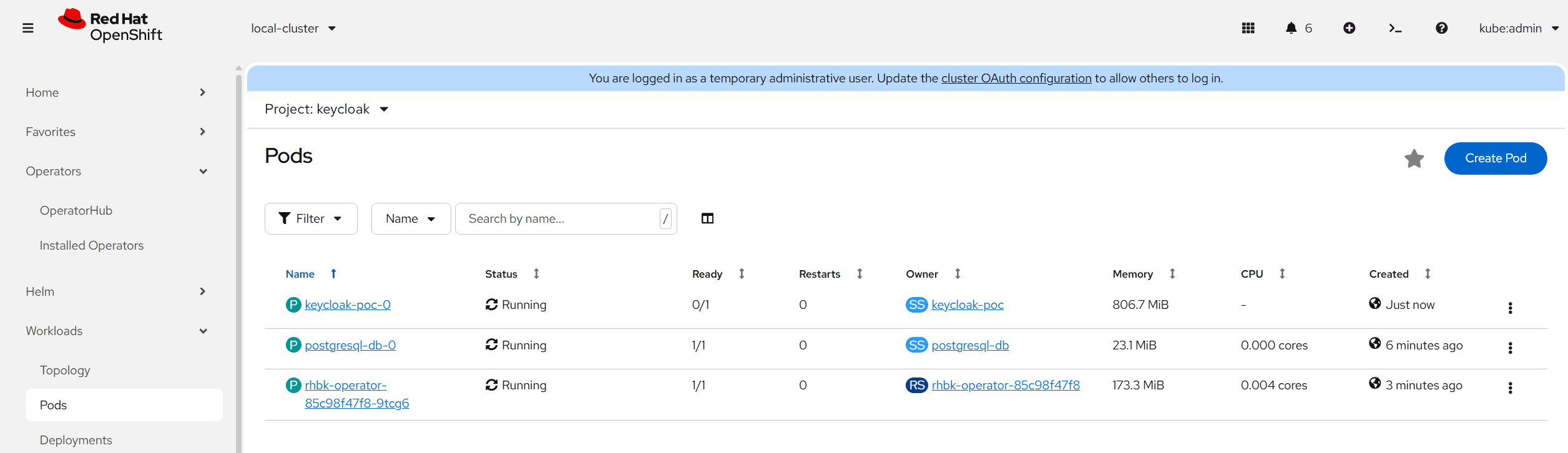

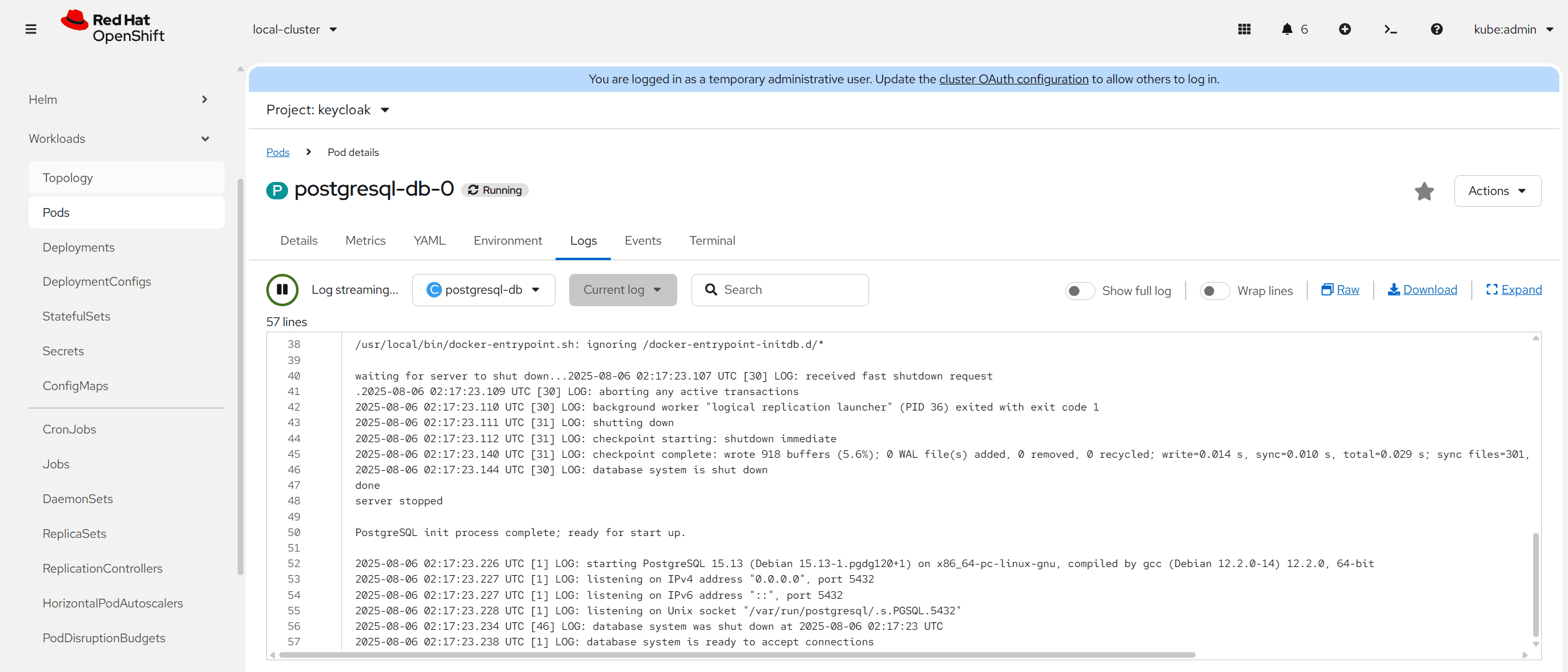

Once the pods are deployed, check that PostgreSQL is happy:
Installing Keycloak

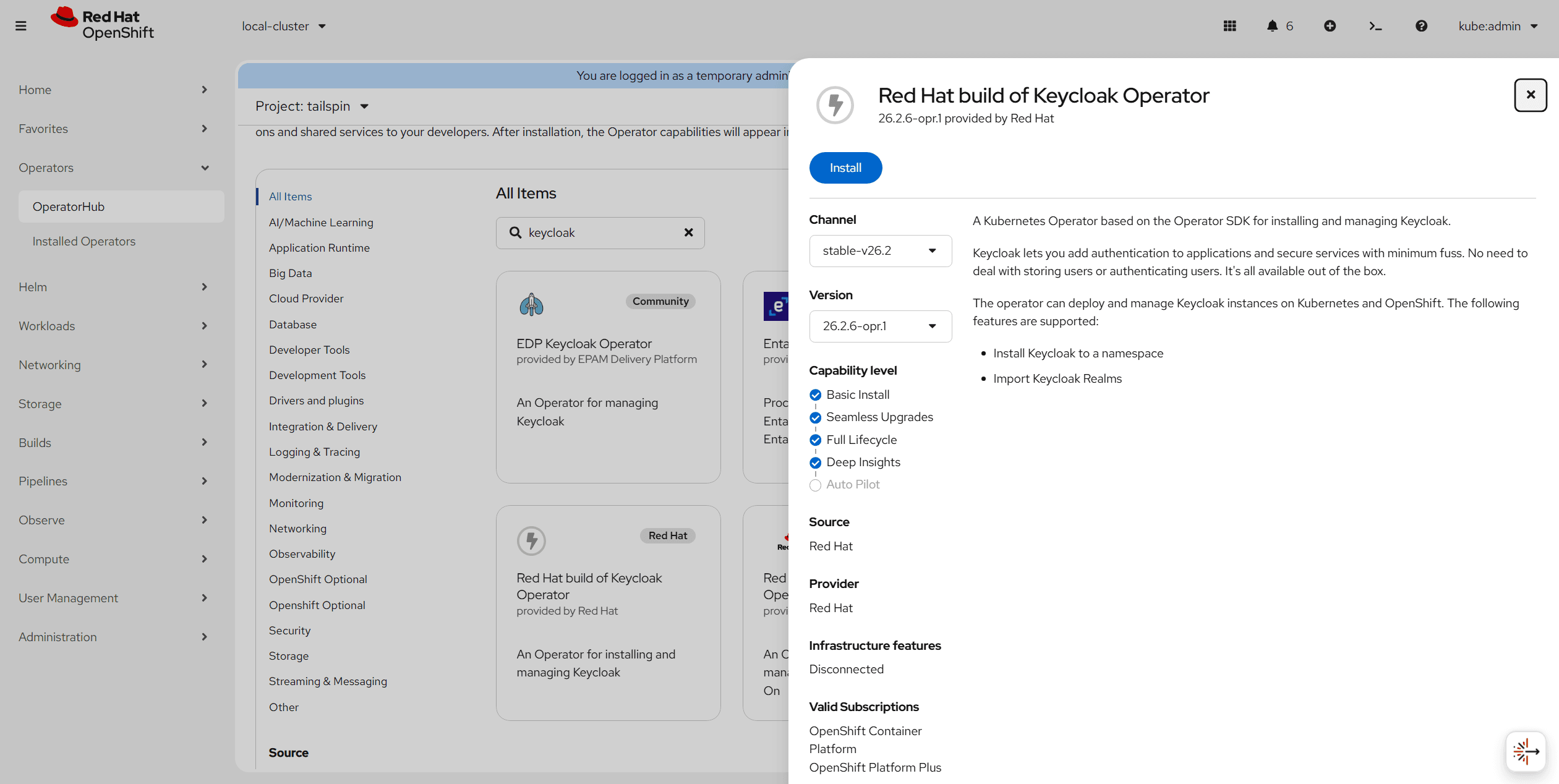

Now we're ready to install the Red Hat Build of Keycloak. The first thing to do is install the Red Hat build of Keycloak operator on OpenShift. You can find this in the OperatorHub:

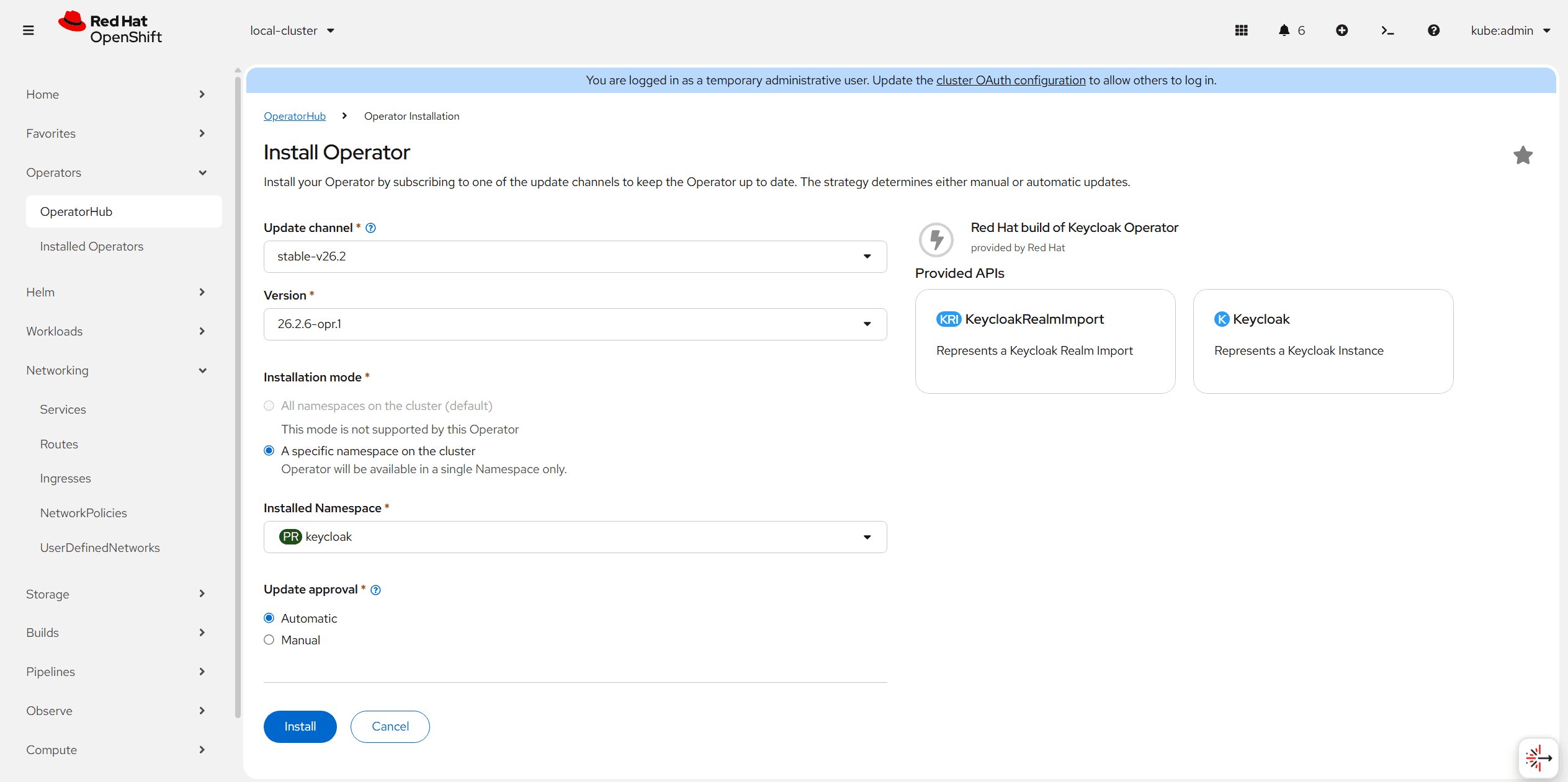

Install the operator into the keycloak namespace:

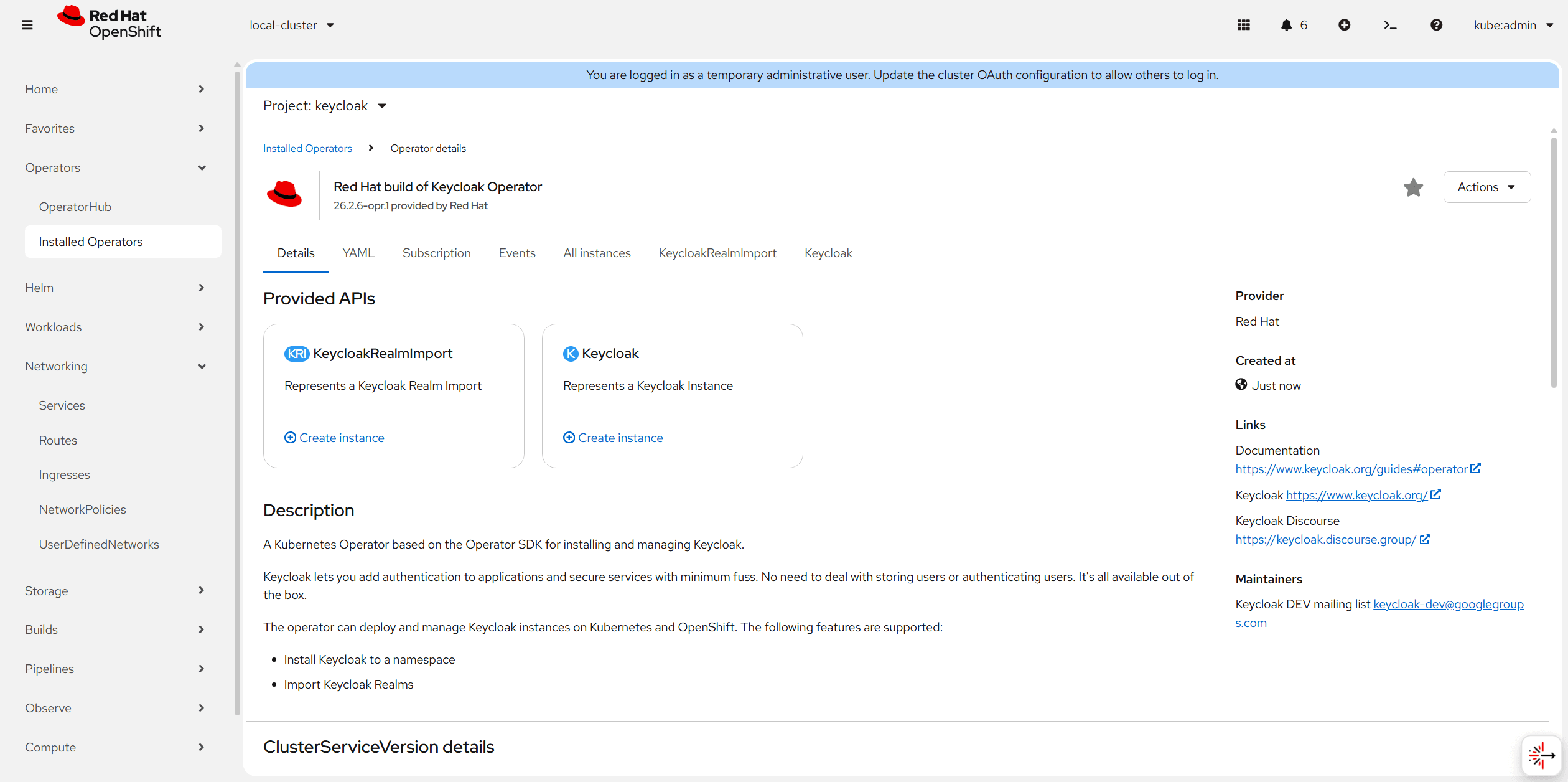

Once the operator is installed you can see the available APIs:
Let's create a new Keycloak instance. Now that the APIs are available, I can simply define this as YAML, specifying the keycloak-db-secret and keycloak-tls secrets created earlier:
apiVersion: k8s.keycloak.org/v2alpha1
kind: Keycloak
metadata:
name: keycloak-poc
spec:
instances: 1
db:
vendor: postgres
host: postgres-db
usernameSecret:
name: keycloak-db-secret
key: username
passwordSecret:
name: keycloak-db-secret
key: password
http:
tlsSecret: keycloak-tls
hostname:
hostname: keycloak.blueradish.net
proxy:
headers: xforwarded

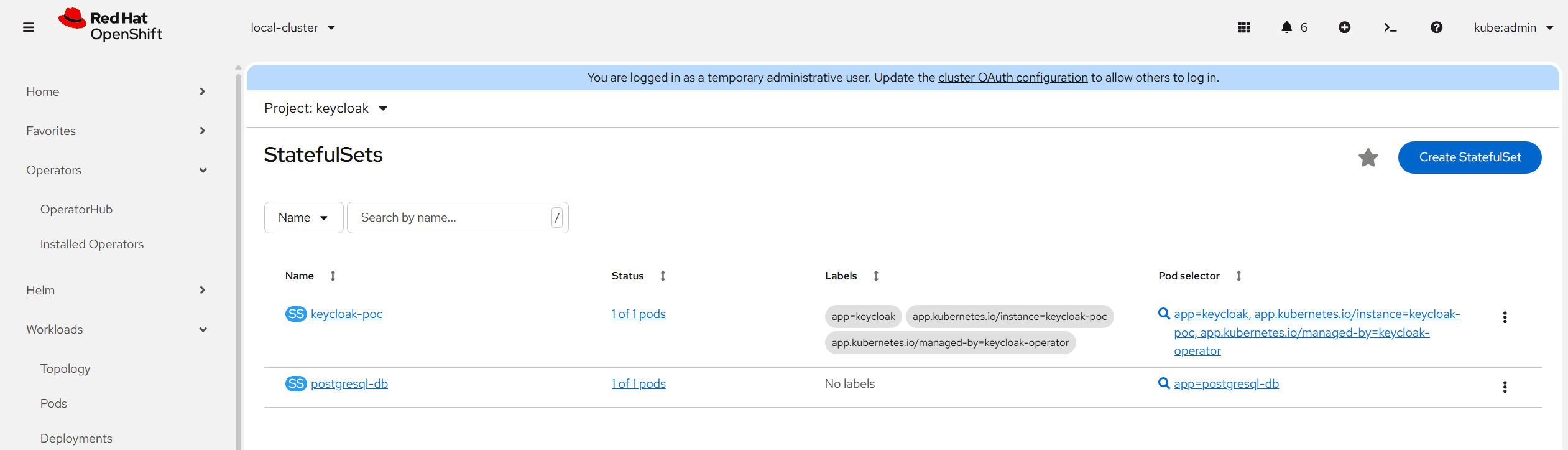

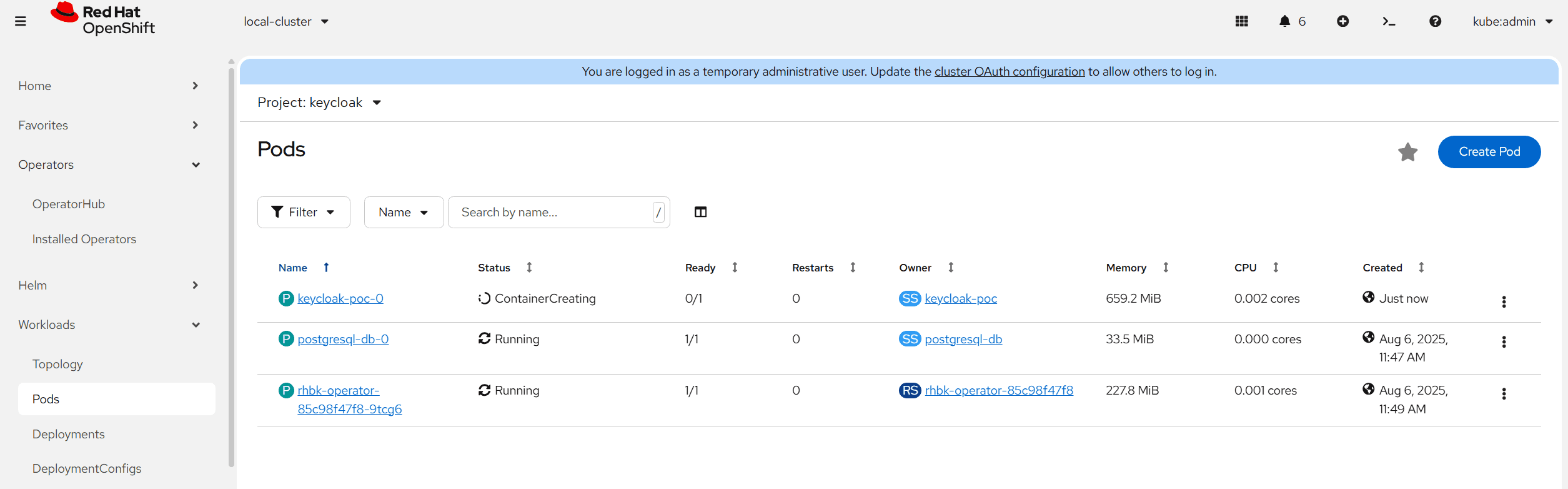

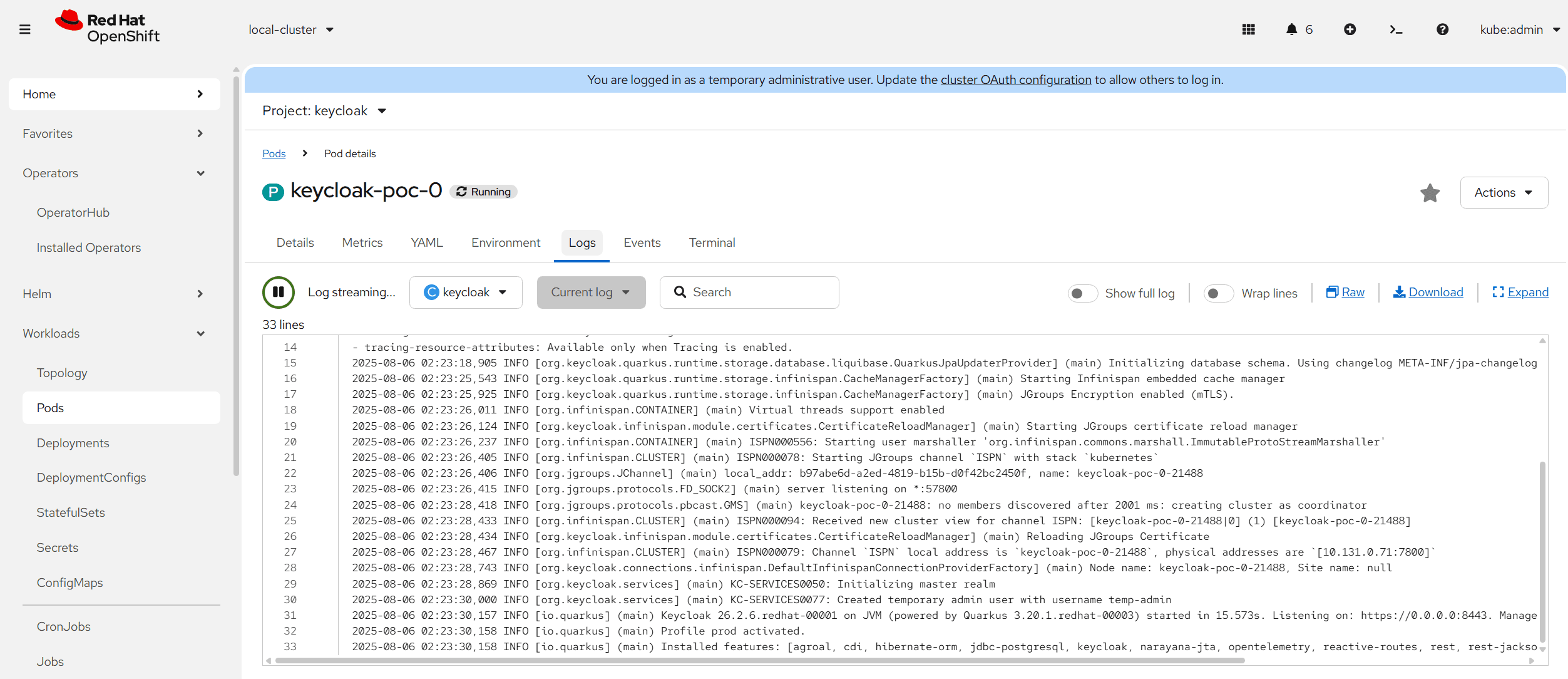

Once the instance is created you should see a new StatefulSet created, and pods deploying:

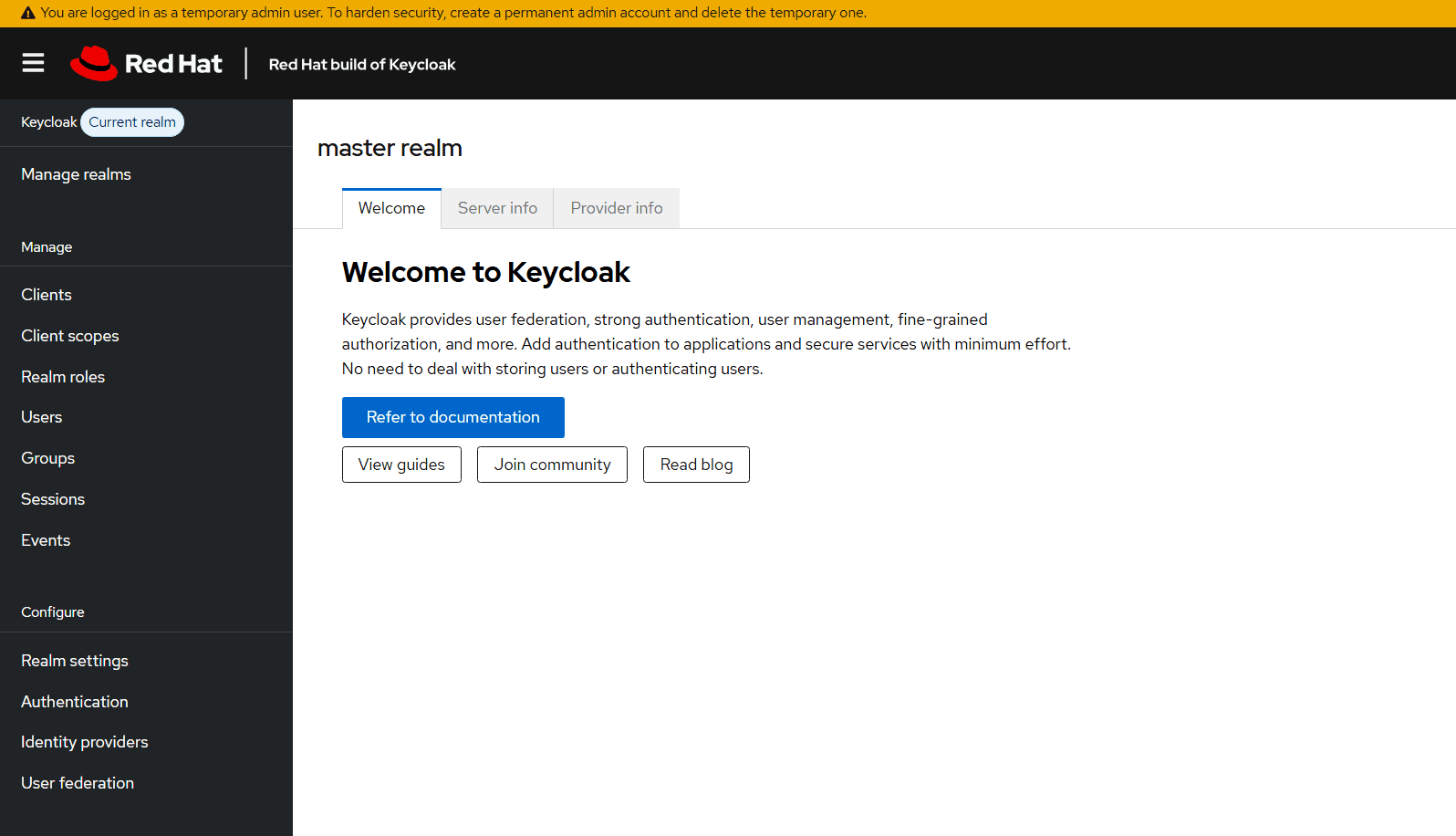

Finally, verify that Keycloak is running by accessing the domain from above. There's a secret created for the temp-admin user in the keycloak namespace, created by the operator:
$ oc get secrets -n keycloak | grep keycloak-poc-initial-admin
keycloak-poc-initial-admin kubernetes.io/basic-auth 2 5m21s
Creating client X.509 certificates
Now that we have Keycloak up and running we can start creating certificates for our users to authenticate. If your own PKI already available, you can simply request user certificates. But for this article, I'm going to roll my own certificate authority (CA):
I can do this using openssl. Note that you'll need to provide a password for the CA key. OpenSSL will prompt you for values for the CA identity, but for this article it doesn't really matter.
PW=my-super-secret-password
openssl req -x509 -passin pass:$PW -sha256 -days 3650 -newkey rsa:4096 -keyout rootCA.key -out rootCA.crt
I'm going to be using Firefox to access OpenShift, and it requires certain V3 extensions in certificates to support client authentication. A little background - X.509 v3 extensions are fields added to X.509 digital certificates to provide extra information and control how certificates are used. These were introduced in X.509 version 3, defined by the ITU-T recommendation X.509 (03/2000) and earlier drafts in the 1990s. They allow X.509 certificates to be more flexible and usable in a wide range of real-world scenarios, such as web server authentication, certificate authority chaining, and code signing.
Let's create a config file to specify these V3 extensions:
[ req ]
default_bits = 2048
default_keyfile = client.key
distinguished_name = req_distinguished_name
attributes = req_attributes
X509_extensions = v3_client_cert
[ req_distinguished_name ]
countryName_default = AU
organizationalUnitName_default = ClientCertificates
commonName_default = user3
emailAddress_default = user3@blueradish.net
[ req_attributes ]
challengePassword_default = A_strong_password
[ v3_client_cert ]
basicConstraints = CA:FALSE
keyUsage = digitalSignature, keyEncipherment
extendedKeyUsage = clientAuth
subjectAltName = @alt_names
[ alt_names ]
DNS.1 = blueradish.net
email.1 = user3@blueradish.net
Now we can create a key together with a certificate signing request (CSR) for user3:
openssl req -new -newkey rsa:4096 -nodes -keyout user3.key -subj "/CN=user3" -out user3.csr -config openssl.cnf
And sign it with the CA key:
openssl x509 -req -CA rootCA.crt -CAkey rootCA.key -in user3.csr -out user3.crt -days 365 -CAcreateserial -days 365 -sha256 -extfile openssl.cnf -extensions v3_client_cert
The last step here is to create a PKCS12 file for the user certificate, which can be imported into Firefox. You'll need to provide a password for this operation also:
openssl pkcs12 -export -out user3.p12 -name "user3" -inkey user3.key -in user3.crt

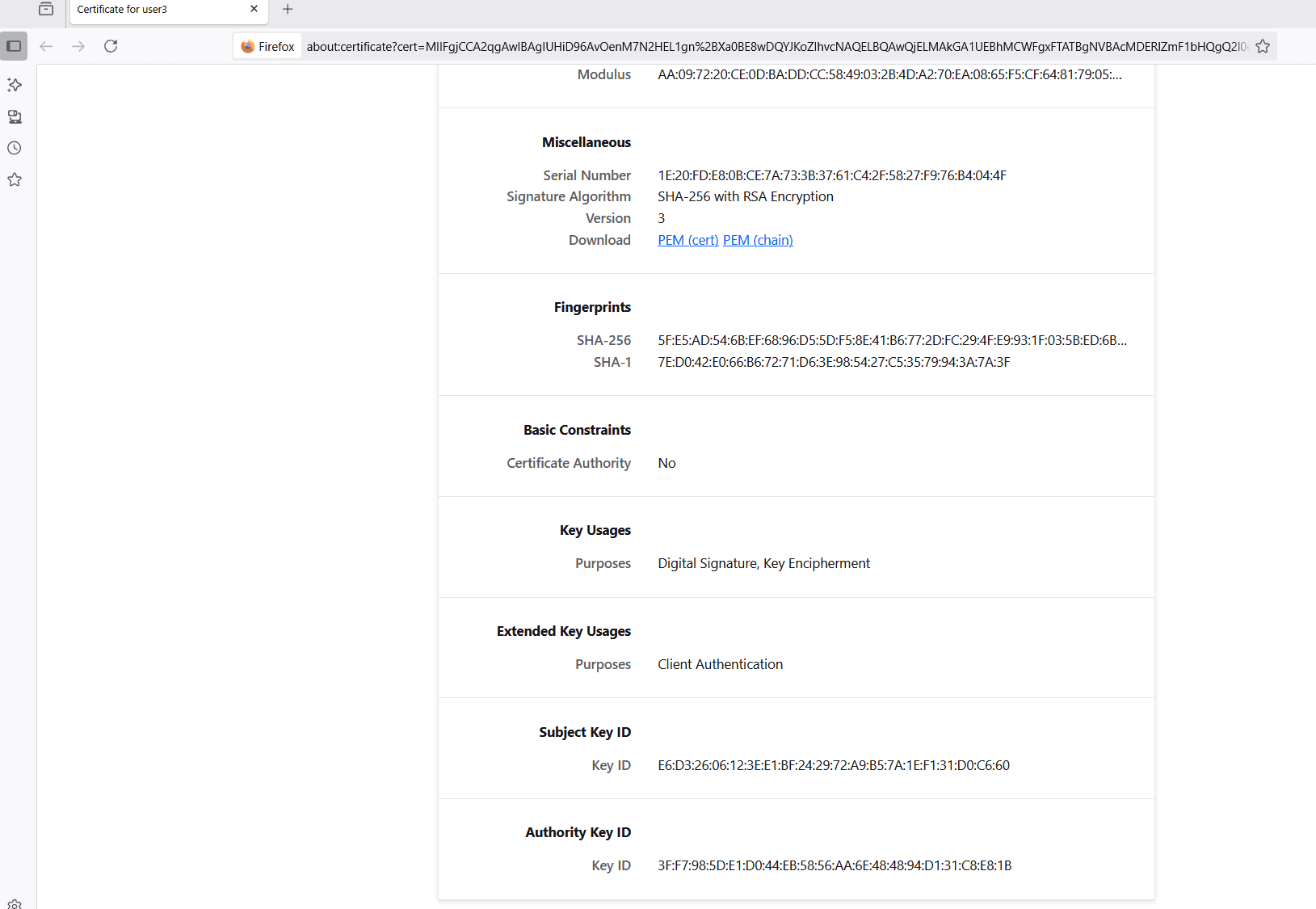

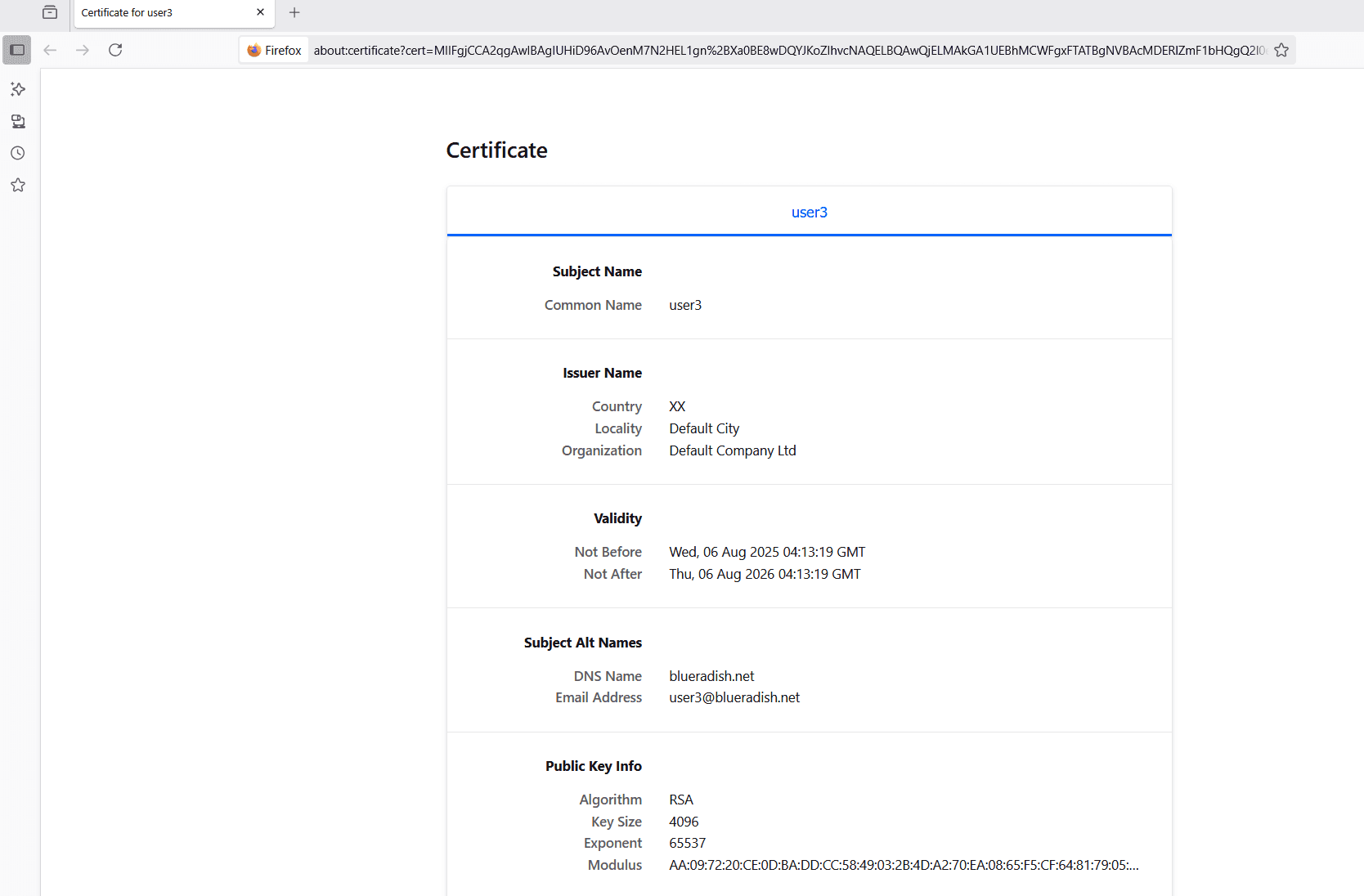

Great! I've imported this key into my Firefox browser. You can see that the user name is listed as the certificate common name, which we'll use for login to OpenShift. Because I didn't specify thbe country / locality / organization when creating the CA, they're simply listed as defaults.
Importantly, you can see that the Extended Key Usages for this certificate is set to 'Client Authentication', meaning we can use this X.509 certificate to authenticate with Keycloak (and OpenShift).
Keycloak - revisited
There's a little more configuration required before this is working for client authentication. Keycloak trusts a number of certificate authorities by default, but because we created our own, we need to explicitly add this to the Keycloak trust configuration.
Keycloak can use PKCS12 or PEM files for trusted certificates. A PKCS12 file requires both the key and certificate - and I don't really want to have to expose the CA key. Really there's no difference in the content between a .crt and .pem file though - it's just a convention. So let's rename the rootCA.crt file to root.pem:
cp rootCA.crt root.pem
Now we can create a secret to hold the file:
oc create secret generic --from-file=root.pem x509-trust-secret
Now let's update the Keycloak configuration to reflect that this file should be trusted:
apiVersion: k8s.keycloak.org/v2alpha1
kind: Keycloak
metadata:
name: keycloak-poc
spec:
instances: 1
db:
vendor: postgres
host: postgres-db
usernameSecret:
name: keycloak-db-secret
key: username
passwordSecret:
name: keycloak-db-secret
key: password
http:
tlsSecret: keycloak-tls
hostname:
hostname: keycloak.blueradish.net
proxy:
headers: xforwarded
truststores:
userCA:
secret:
name: x509-trust-secret
additionalOptions:
- name: https-client-auth
value: "request"
- name: https-trust-store-file
value: "/opt/keycloak/conf/truststores/secret-x509-trust-secret/root.pem"
You should see the Keycloak pod recreated:
And if you check the logs, it will reflect the new certificate authority is trusted:
2025-08-06 04:46:19,279 INFO [org.keycloak.truststore.TruststoreBuilder] (main) Found the following truststore files under directories specified in the truststore paths [/opt/keycloak/bin/../conf/truststores/secret-X.509-trust-secret/root.pem, /opt/keycloak/bin/../conf/truststores/secret-X.509-trust-secret/..data/root.pem, /opt/keycloak/bin/../conf/truststores/secret-X.509-trust-secret/..2025_08_06_04_46_07.2946640639/root.pem]
Creating a client and authentication flow
Now we need to create a new authentication flow in Keycloak, so that it knows how to authenticate users presenting X.509 client certificates.

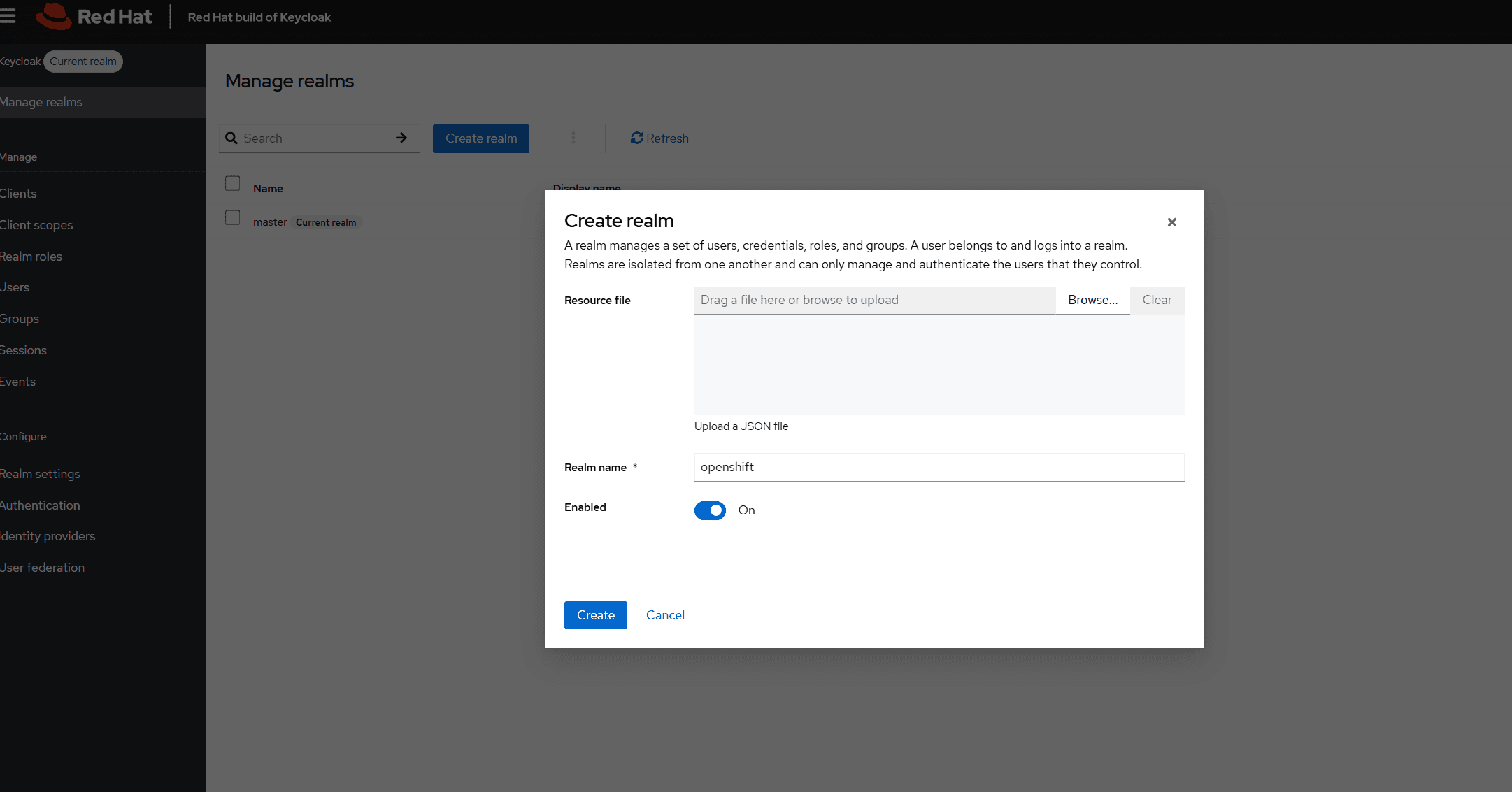

Login to Keycloak and select 'Realms'. Select 'Create Realm':
I'm just going to call this new realm openshift:

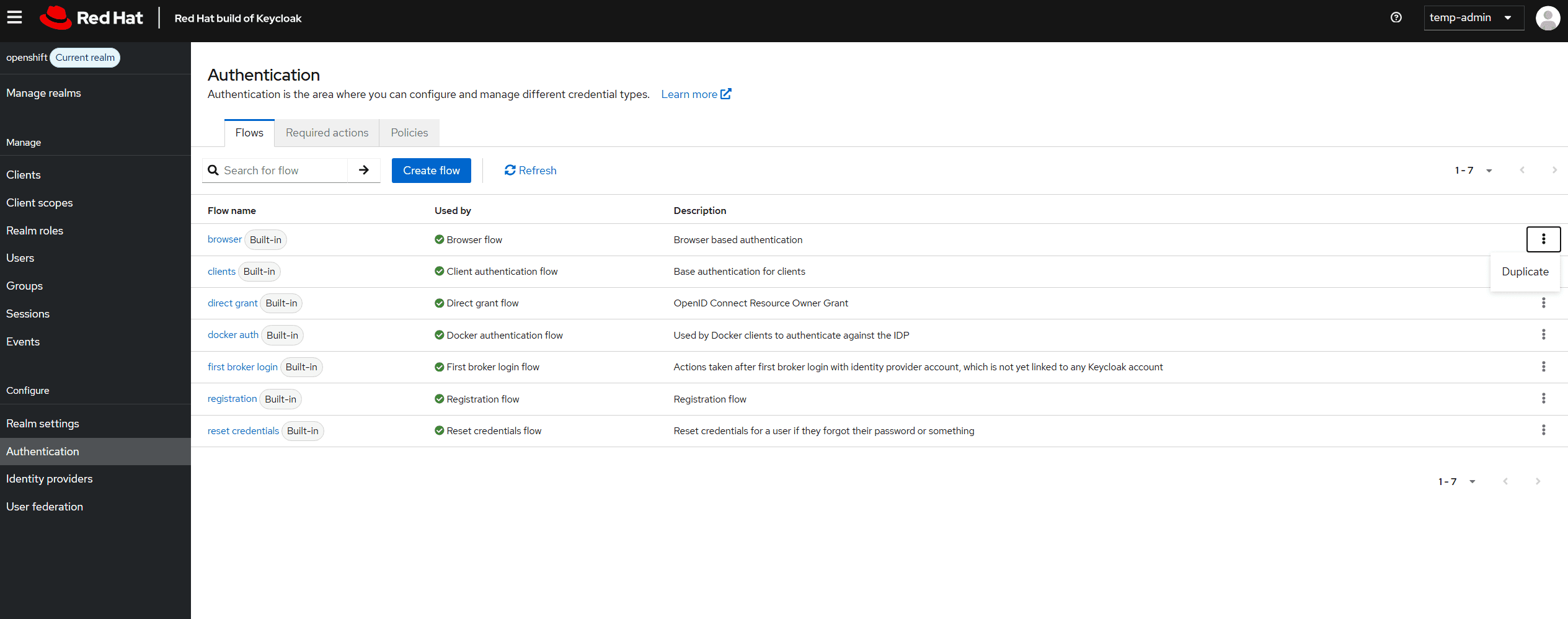

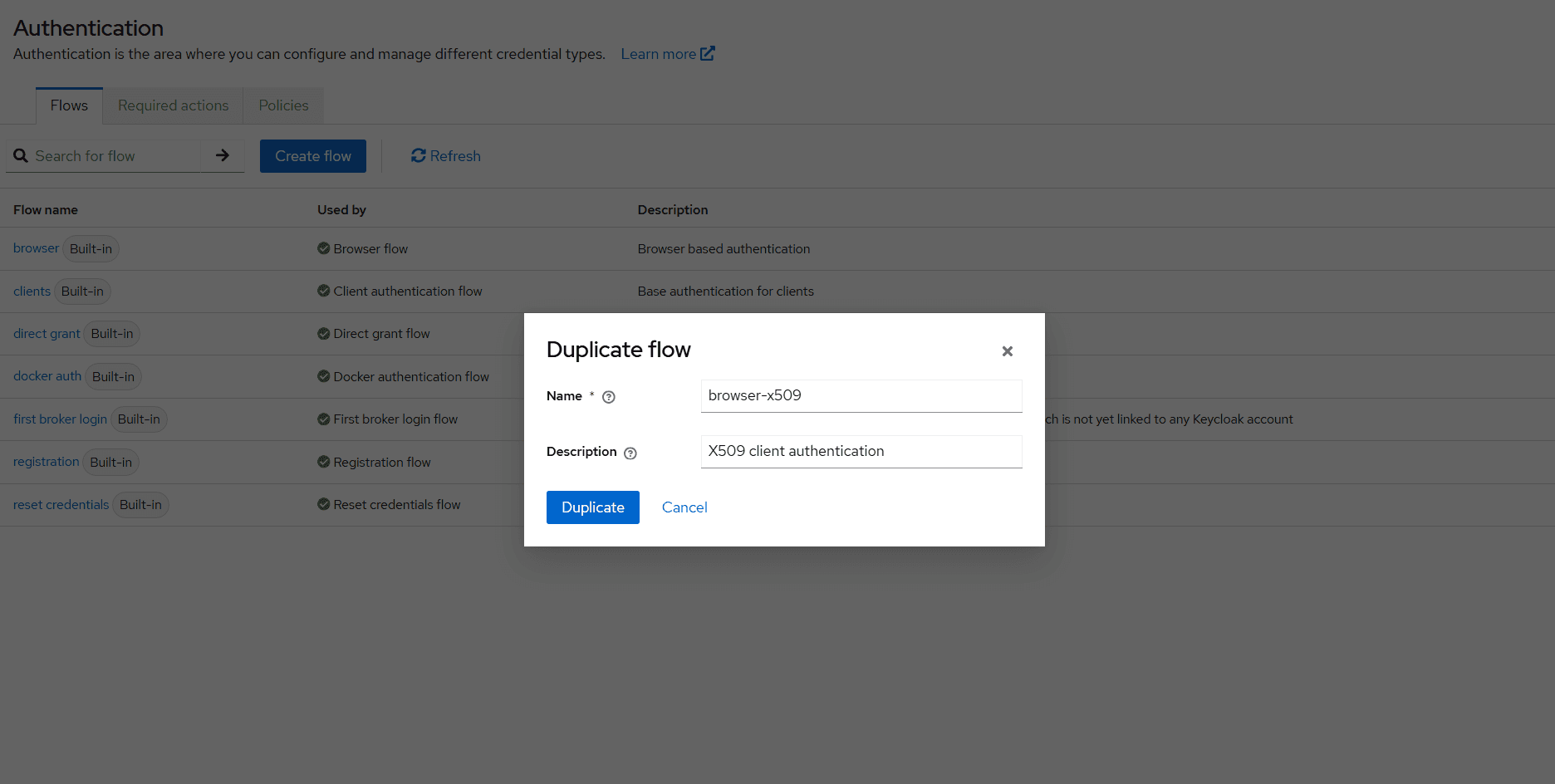

Select Authentication, and next to the browser flow select Duplicate.
I'm going to call this new flow browser-X.509:

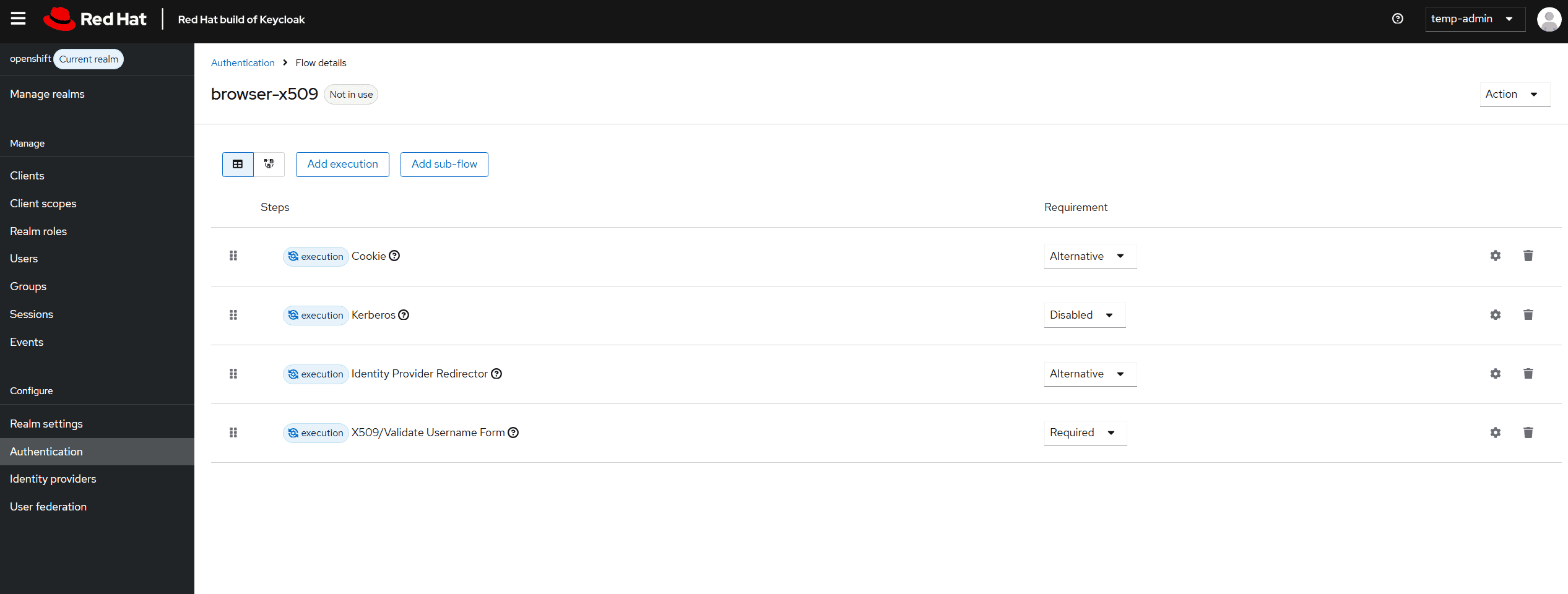

Delete all of the steps from the flow except for Cookie, Kerberos and Identity Provider Redirector:

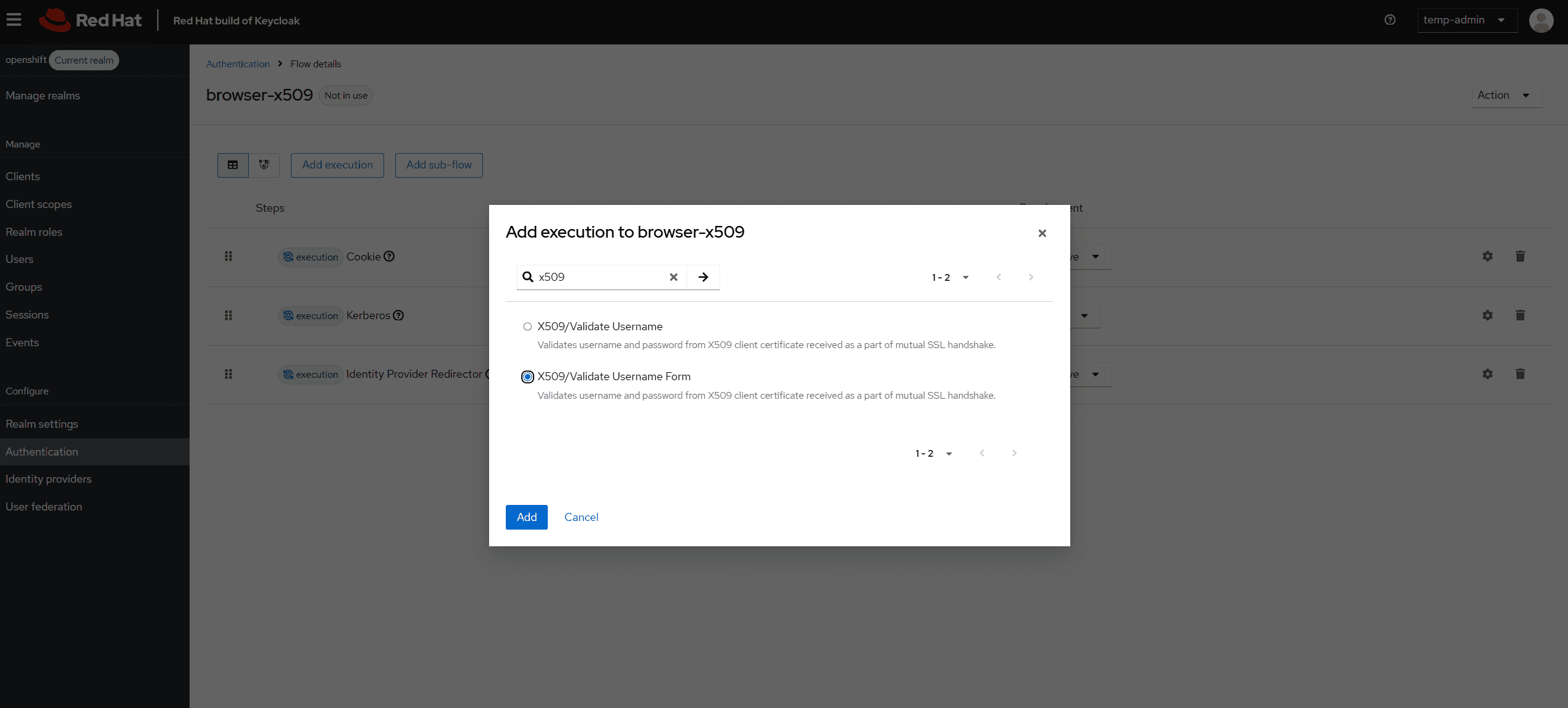

Click Add execution, and search for X509. From the list, select X509/Validate Username Form, and add it. Set this flow to Required.
Select the settings next to the X509/Validate Username Form and make the following changes:
- User Identity Source: Subject's Common Name
- User Mapping Method: Username or Email
- A name of user attribute: username
Select 'Save'.
Now that our X.509 authentication flow is setup, we need to assign it to the openshift client. Navigate to the openshift client settings and select the Advanced tab:

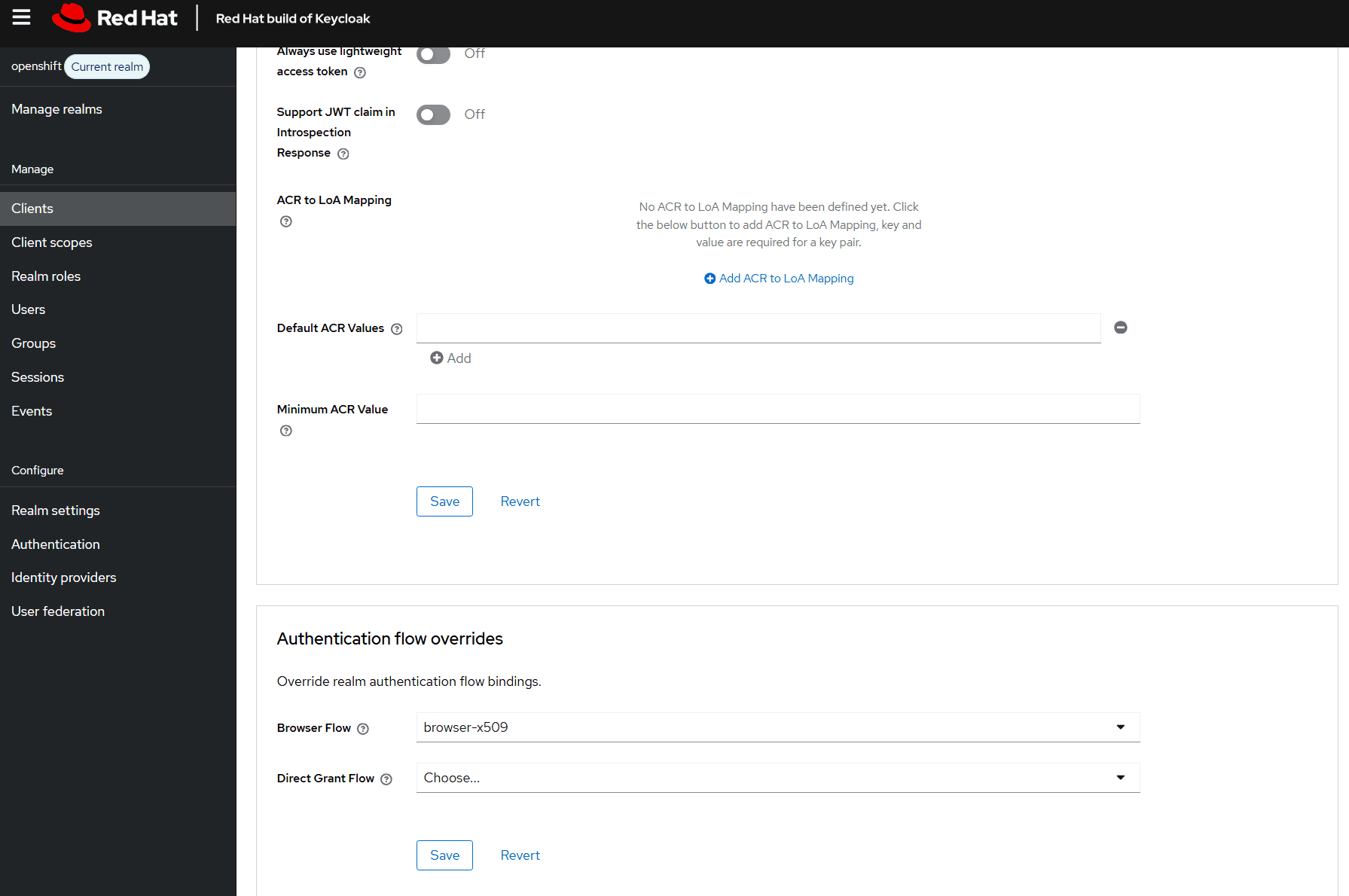

Right at the bottom is an option for Authentication flow overrides. Change the Browser flow to browser-x509:
Configuring an OpenShift OpenID Connect (OIDC) provider
The last step here is to configure a client for OpenShift in the Keycloak realm.

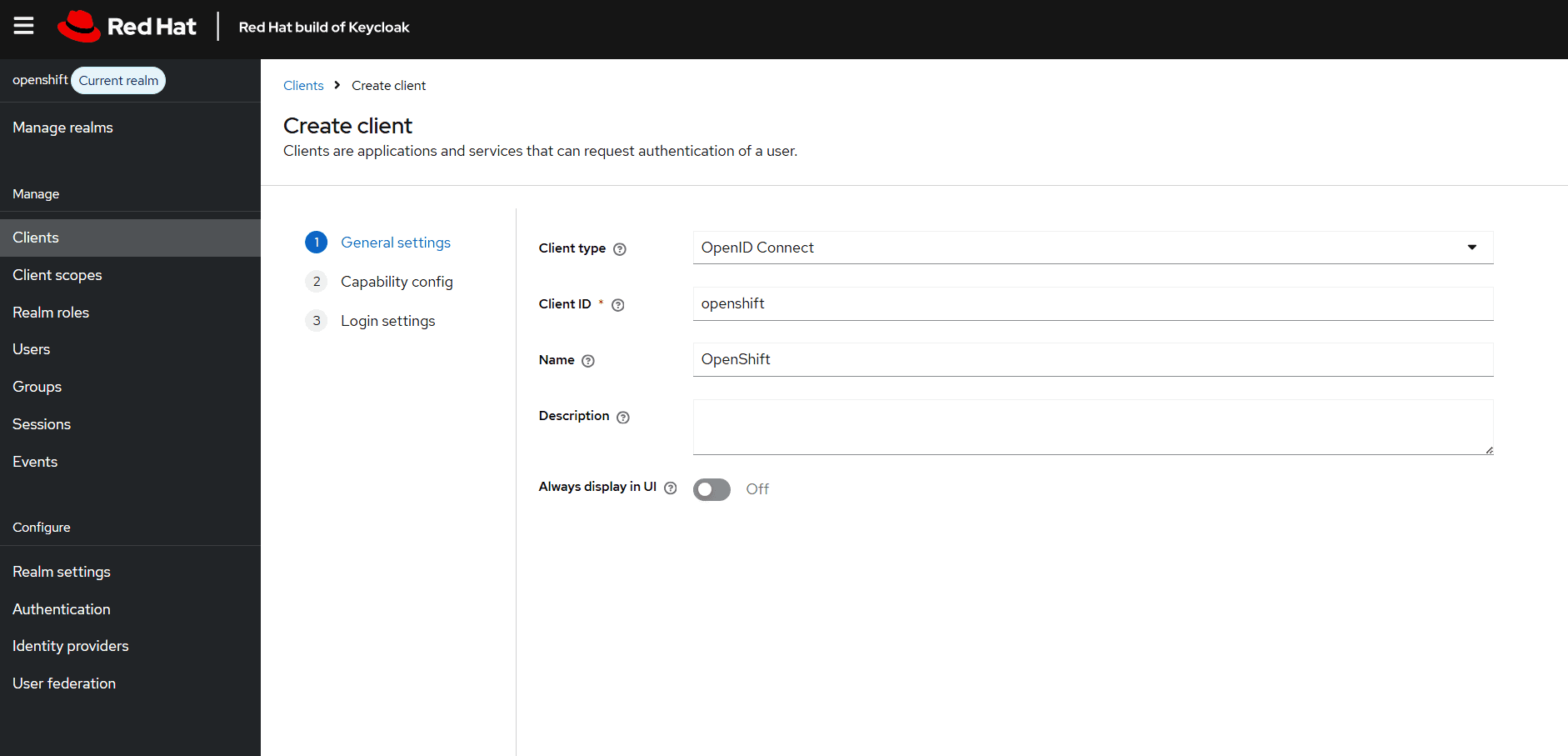

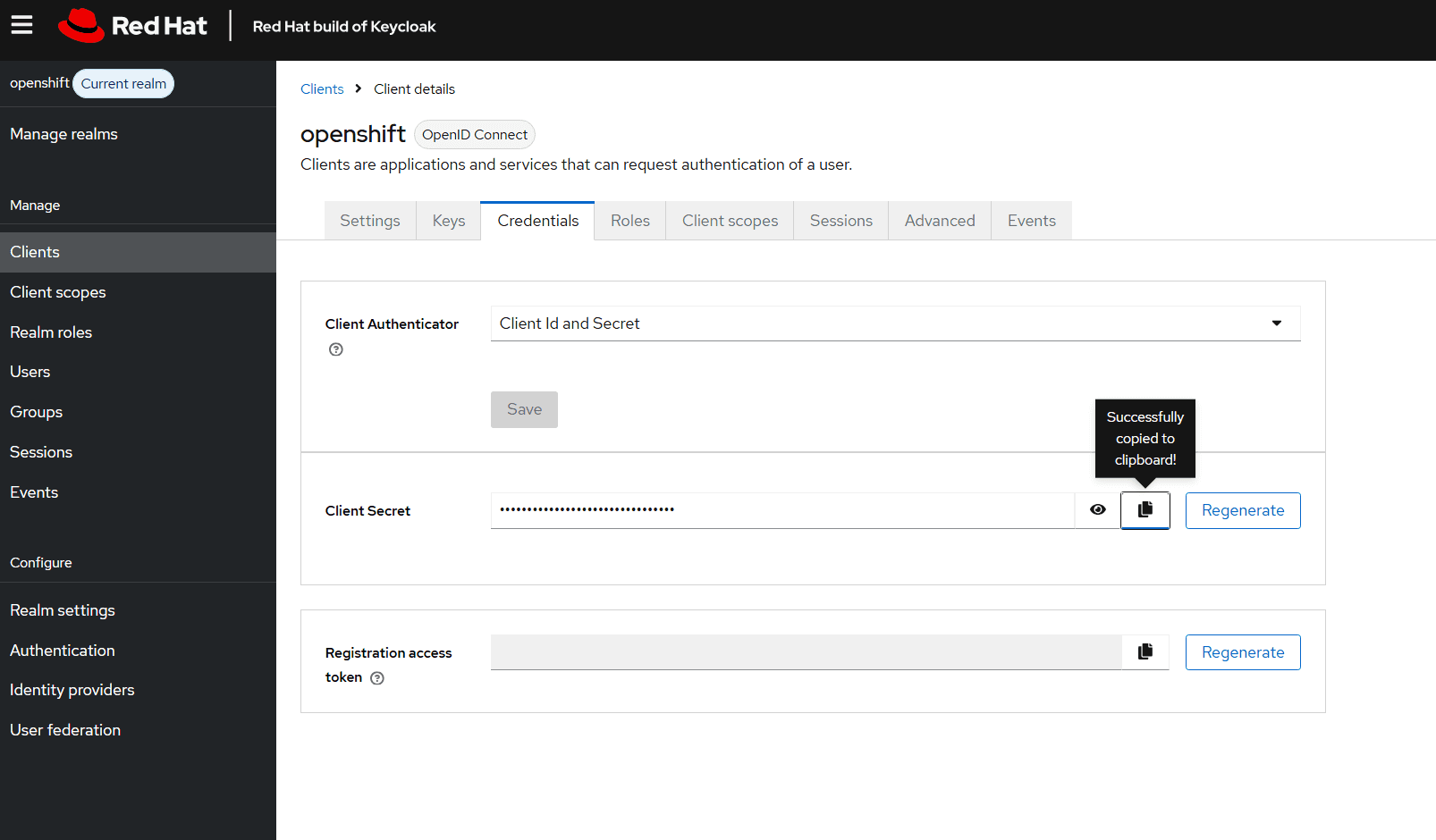

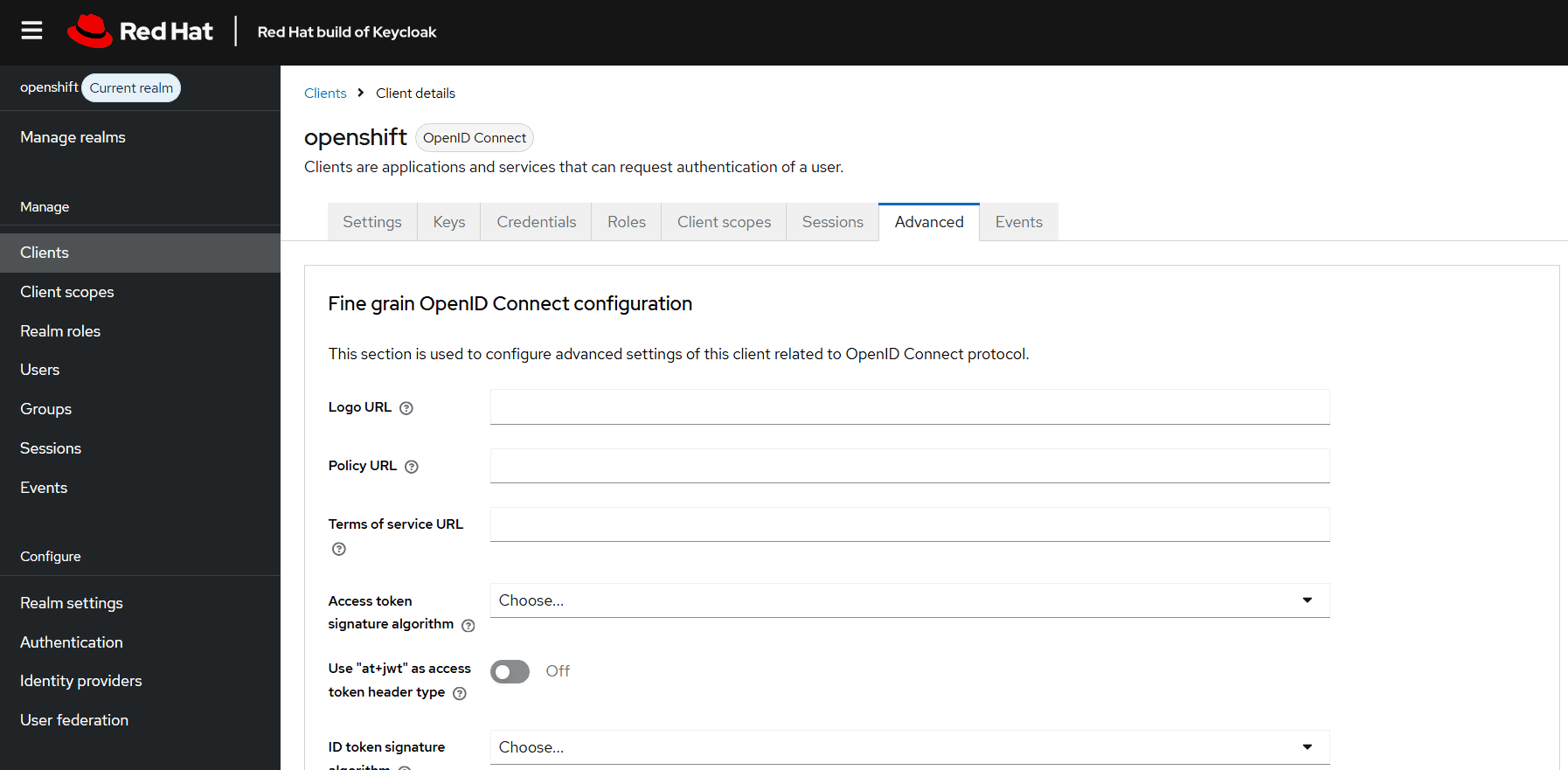

Select 'Clients' and 'Create client'. Give the client an ID and name, and select 'Next'.
Set 'Client authentication to 'On' and leave the authentication flow for the standard flow. Select 'Next'.
This next part is really important, as it's where we set the redirect URIs for OpenShift OAuth. If these are incorrect, Keycloak will prevent the login. There's two that we need to provide:
Valid redirect URIs: If my cluster console login is https://console-openshift-console.apps.cluster1.sandbox247.opentlc.com/, then this will be https://oauth-openshift.apps.cluster1.sandbox247.opentlc.com/oauth2callback/*
Web origins: This will be the same, but without
oauth2callback, so https://oauth-openshift.apps.cluster1.sandbox247.opentlc.com
Navigate to the Credentials tab and copy the OpenShift client credential:

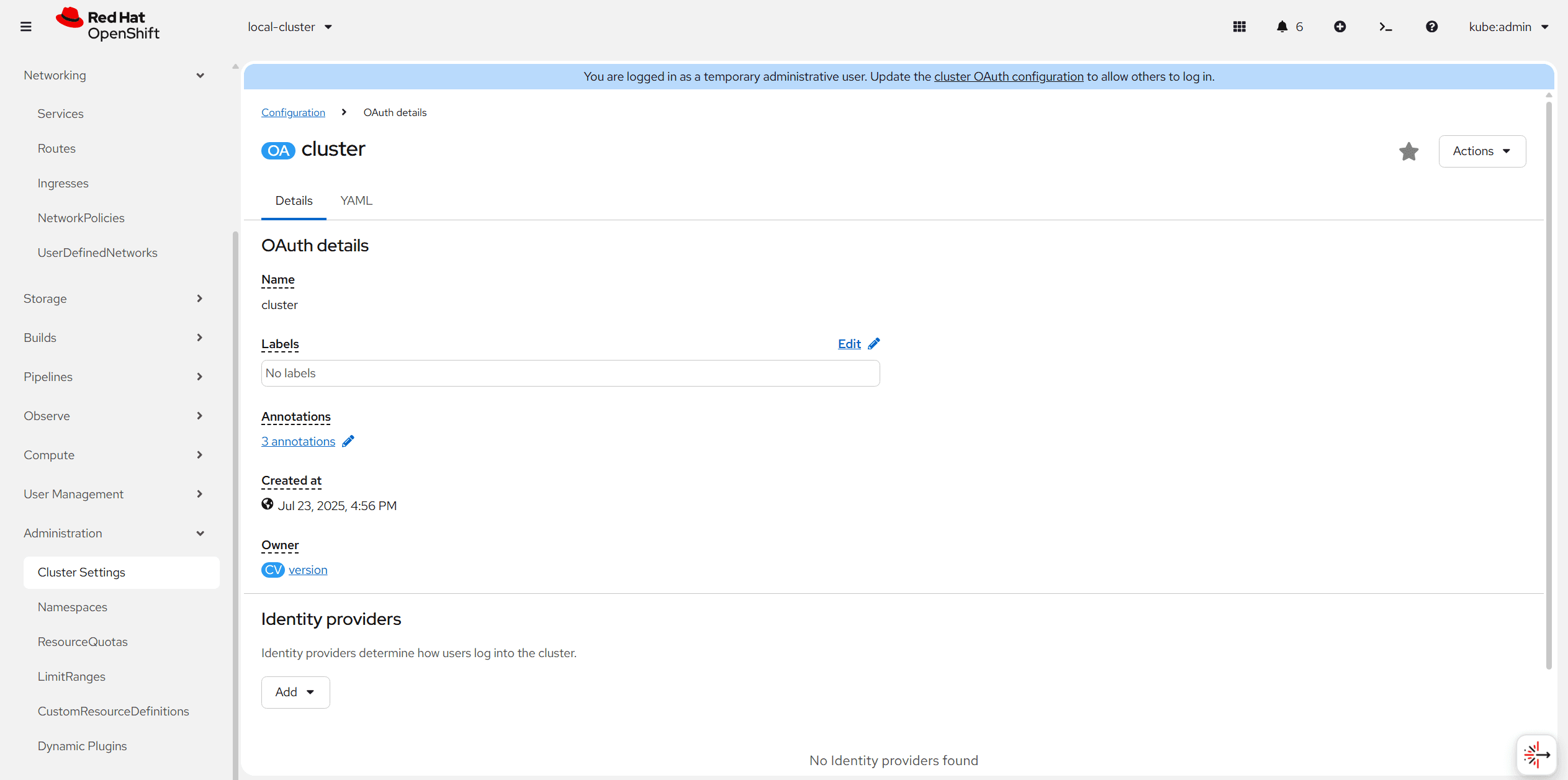

The last thing we need to do is configure the OpenShift OpenID Connect provider. You can find this in the Oauth section of the cluster administration view:

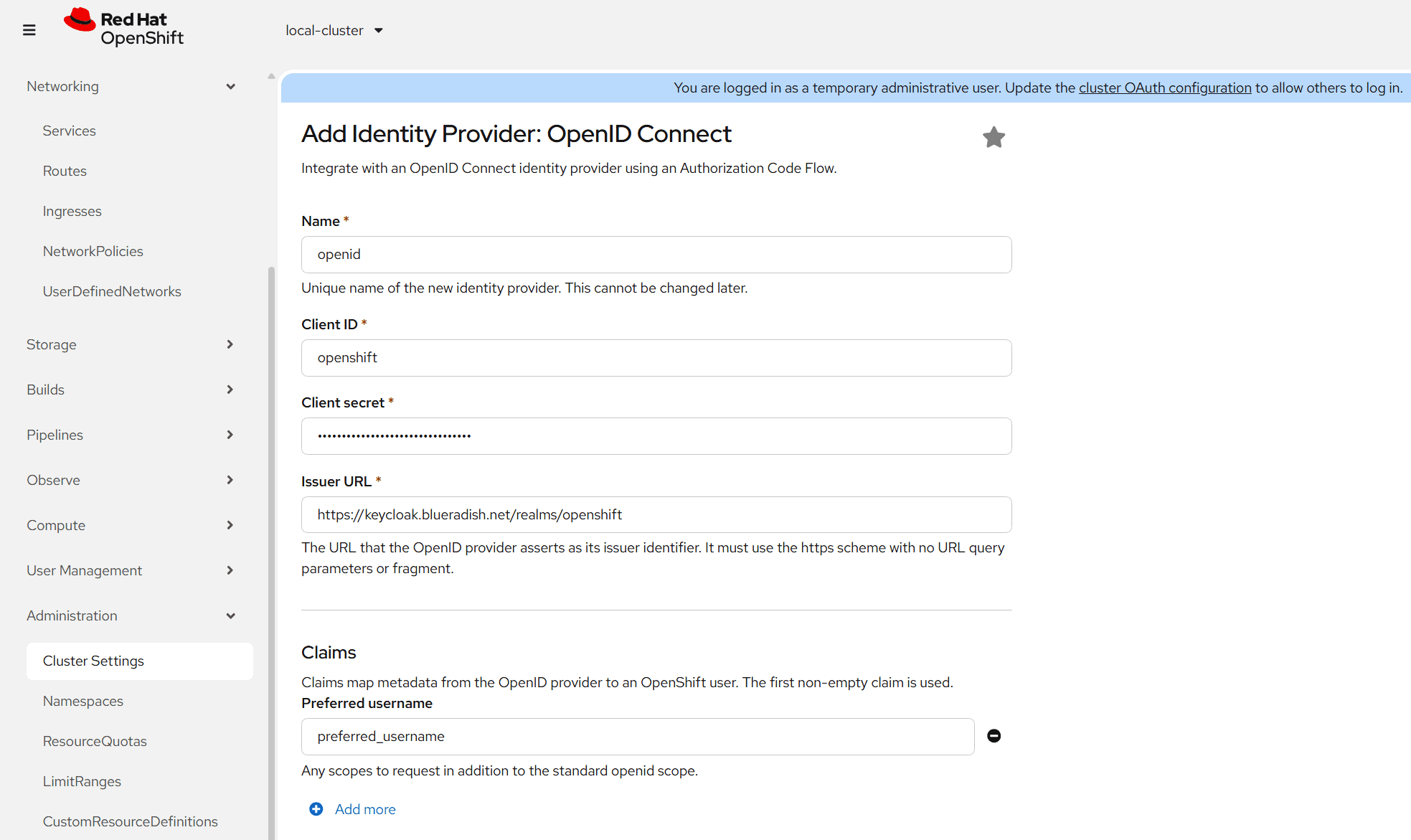

Enter the configuration from Keycloak:
- Client name: openshift
- Credentials: copied above
- Issuer: This will be the Keycloak URL, with
/realms/your-realmappended. So for me, it'shttps://keycloak.blueradish.net/realms/openshift
Leave everything else as-is, and select 'Add'.
OpenShift will now update the cluster OAuth configuration. If you check the cluster operators, you will see that the authentication operator is applying the updates:
$ oc get co
NAME VERSION AVAILABLE PROGRESSING DEGRADED SINCE MESSAGE
authentication 4.19.3 True True False 13d OAuthServerDeploymentProgressing: deployment/oauth-openshift.openshift-authentication: observed generation is 7, desired generation is 8.
baremetal 4.19.3 True False False 13d
cloud-controller-manager 4.19.3 True False False 13d
cloud-credential 4.19.3 True False False 13d
cluster-autoscaler 4.19.3 True False False 13d
config-operator 4.19.3 True False False 13d
console 4.19.3 True False False 13d
control-plane-machine-set 4.19.3 True False False 13d
csi-snapshot-controller 4.19.3 True False False 13d
Testing everything out
Great! Now we're ready to test this out.

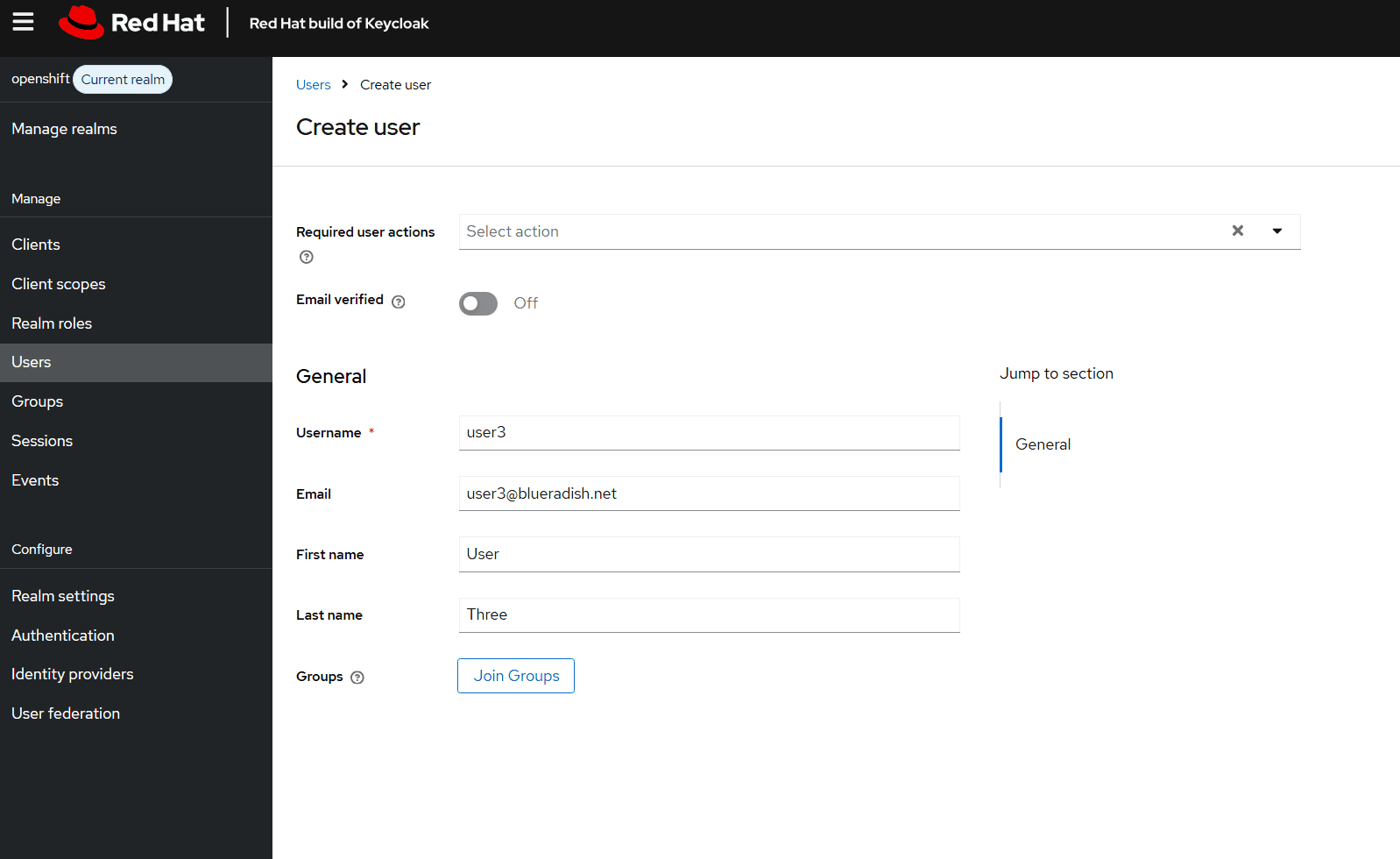

Our authentication flow matches users by Subject in the certificate, but they need to exist first in the Keycloak database. Let's create a new user in the openshift realm:

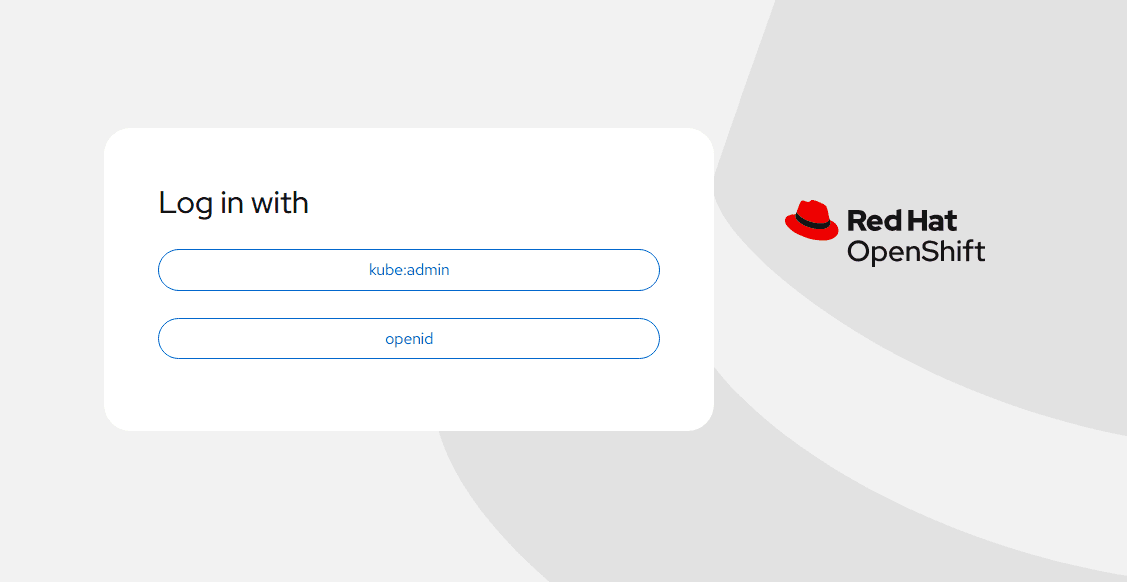

Let's give it a shot! If you log out of OpenShift, you'll notice a new login option.

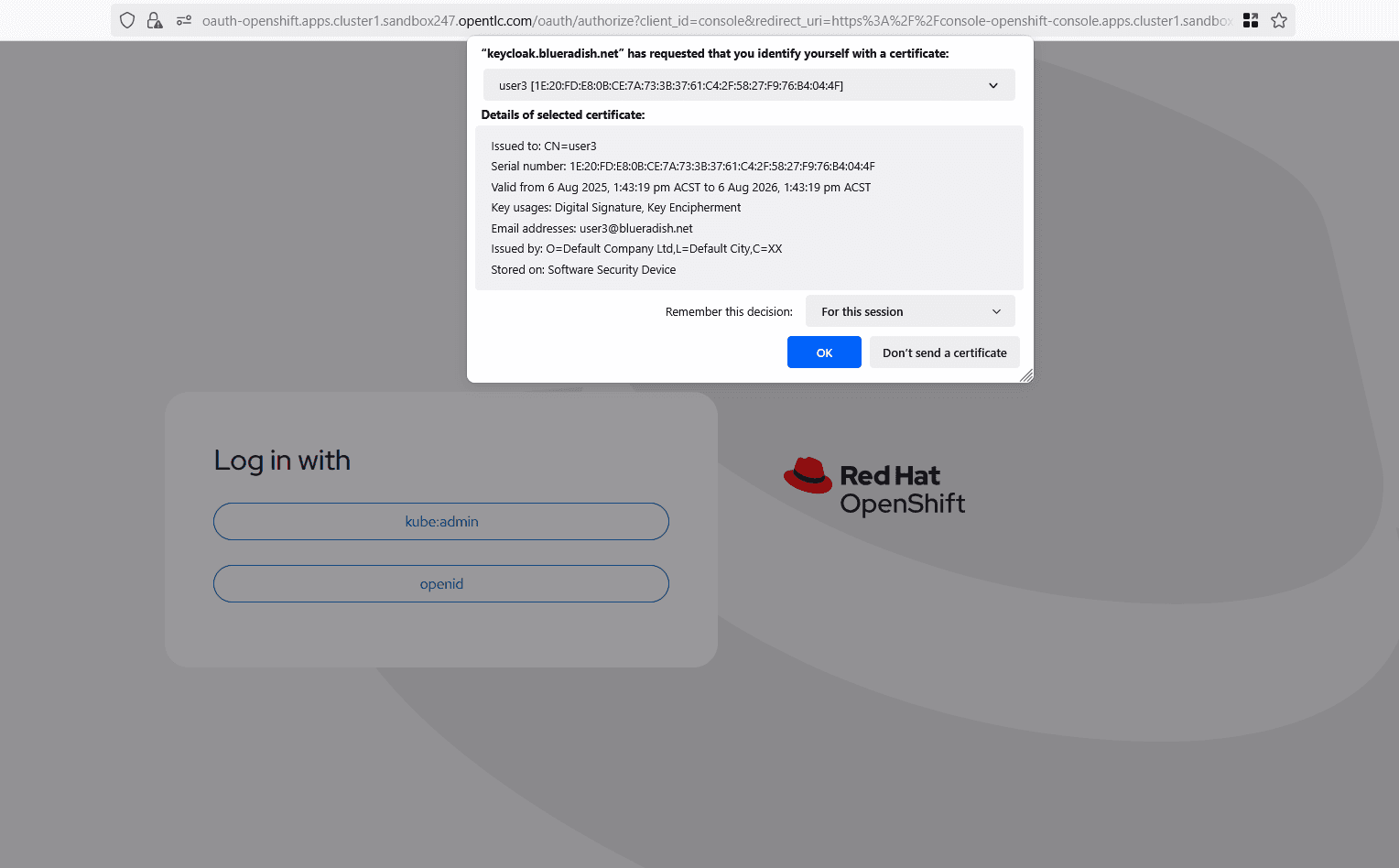

Selecting this option will prompt you for a certificate. In my case, it's selected the user3 certificate we created earlier, by default:

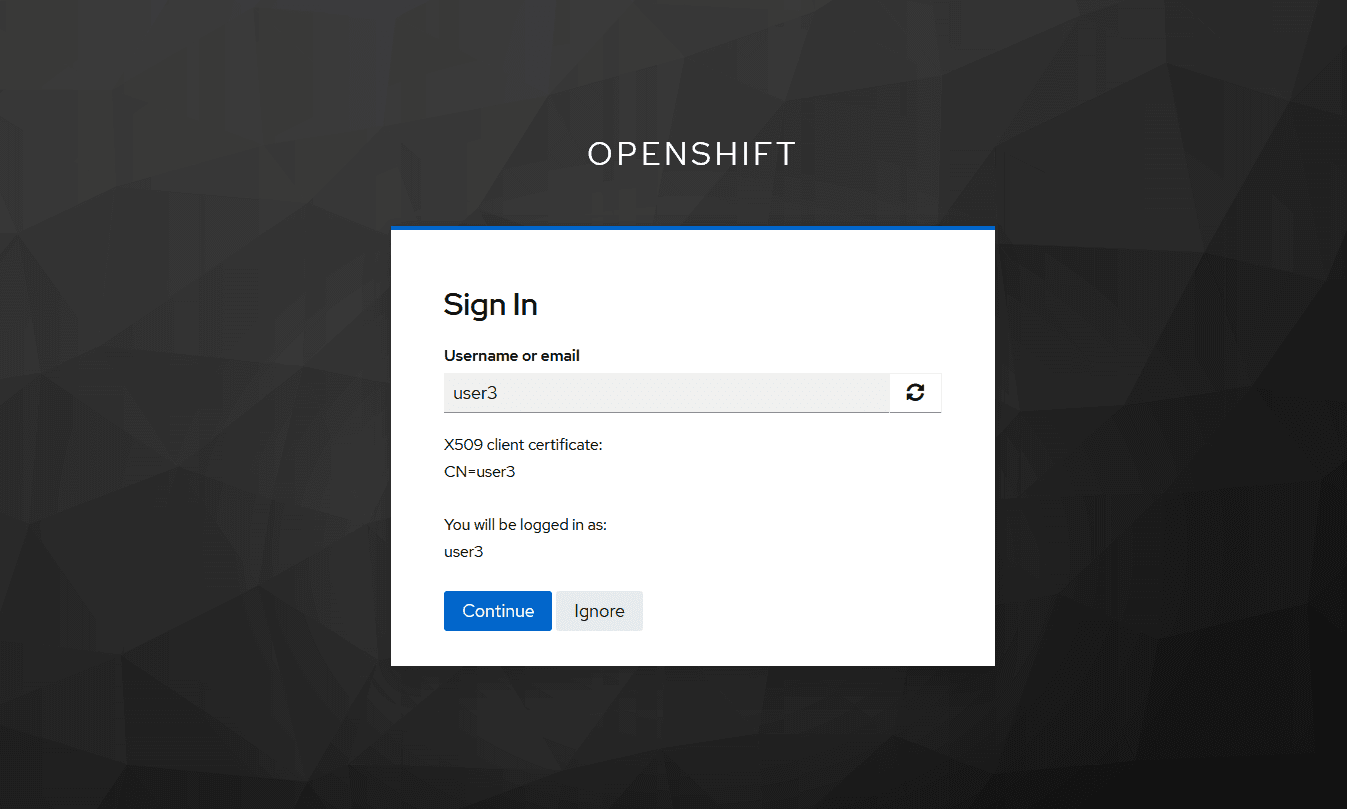

One the next page you'll be shown a screen with the user's certificate, and the user that you will be logged in as.
That's it! You can now see that I'm user3, successfully logged into OpenShift via X.509 client certificates.
Extending auth to Red Hat Advanced Cluster Security for Kubernetes (RHACS)
Red Hat Advanced Cluster Security for Kubernetes (RHACS) allows you to use OpenShift authentication. Which means we can re-use this same client certificate auth flow for RHACS too!

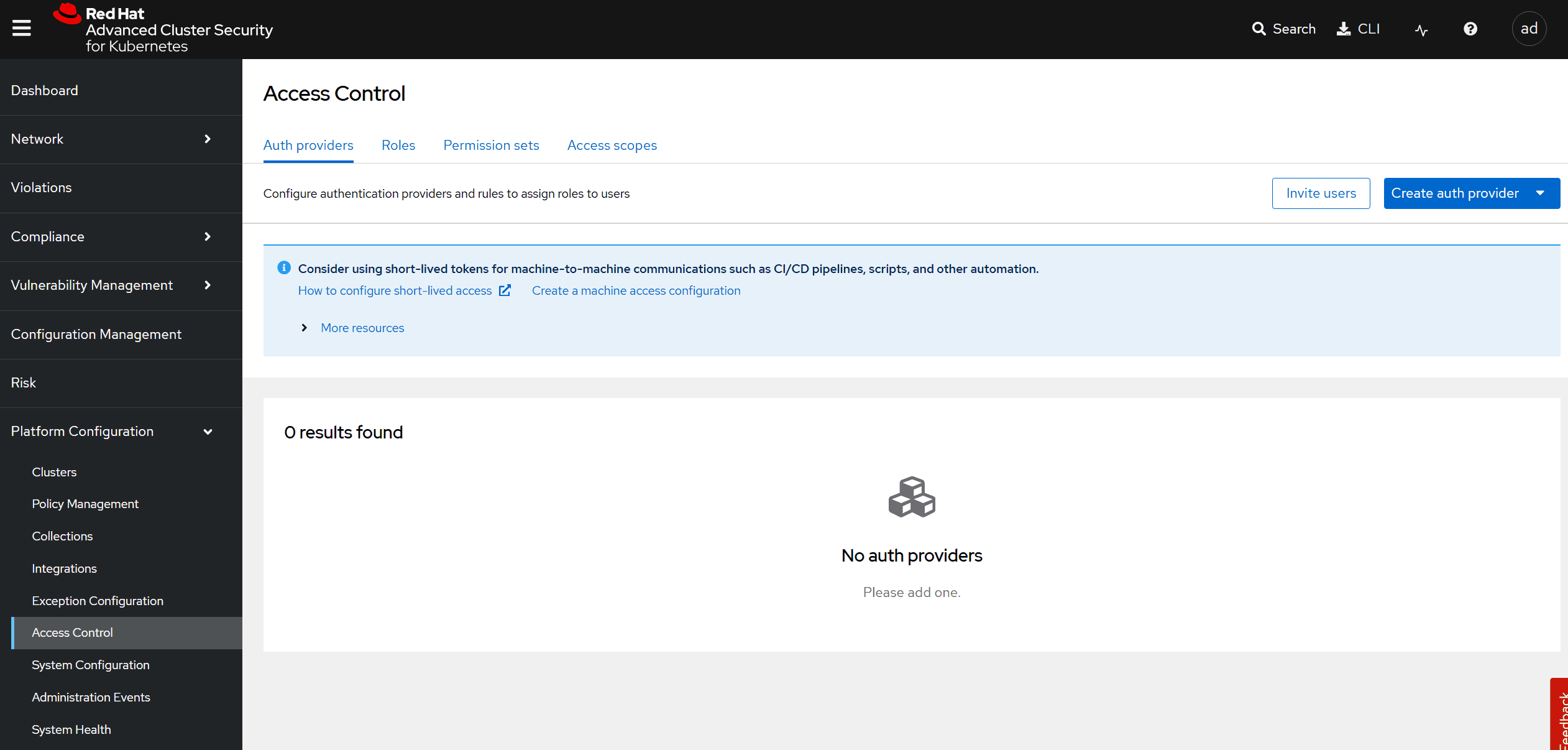

Login to RHACS and select Access Control from the Platform Configuration menu.

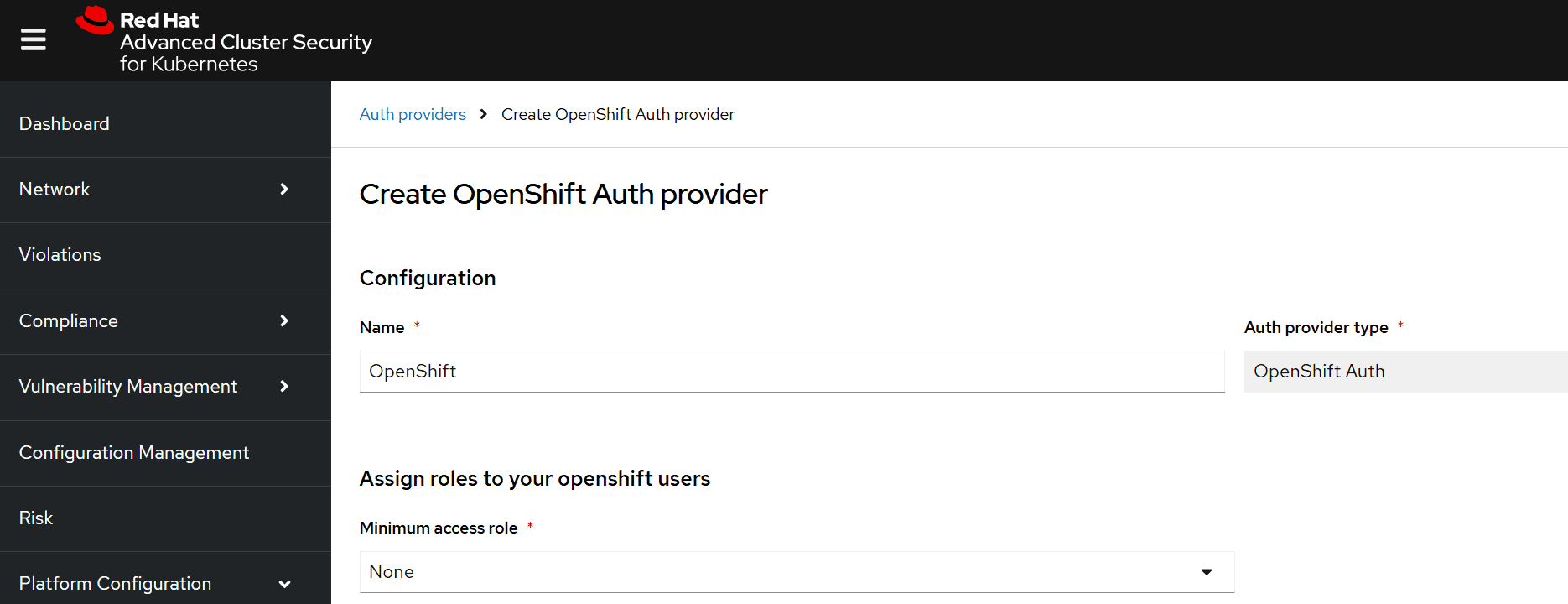

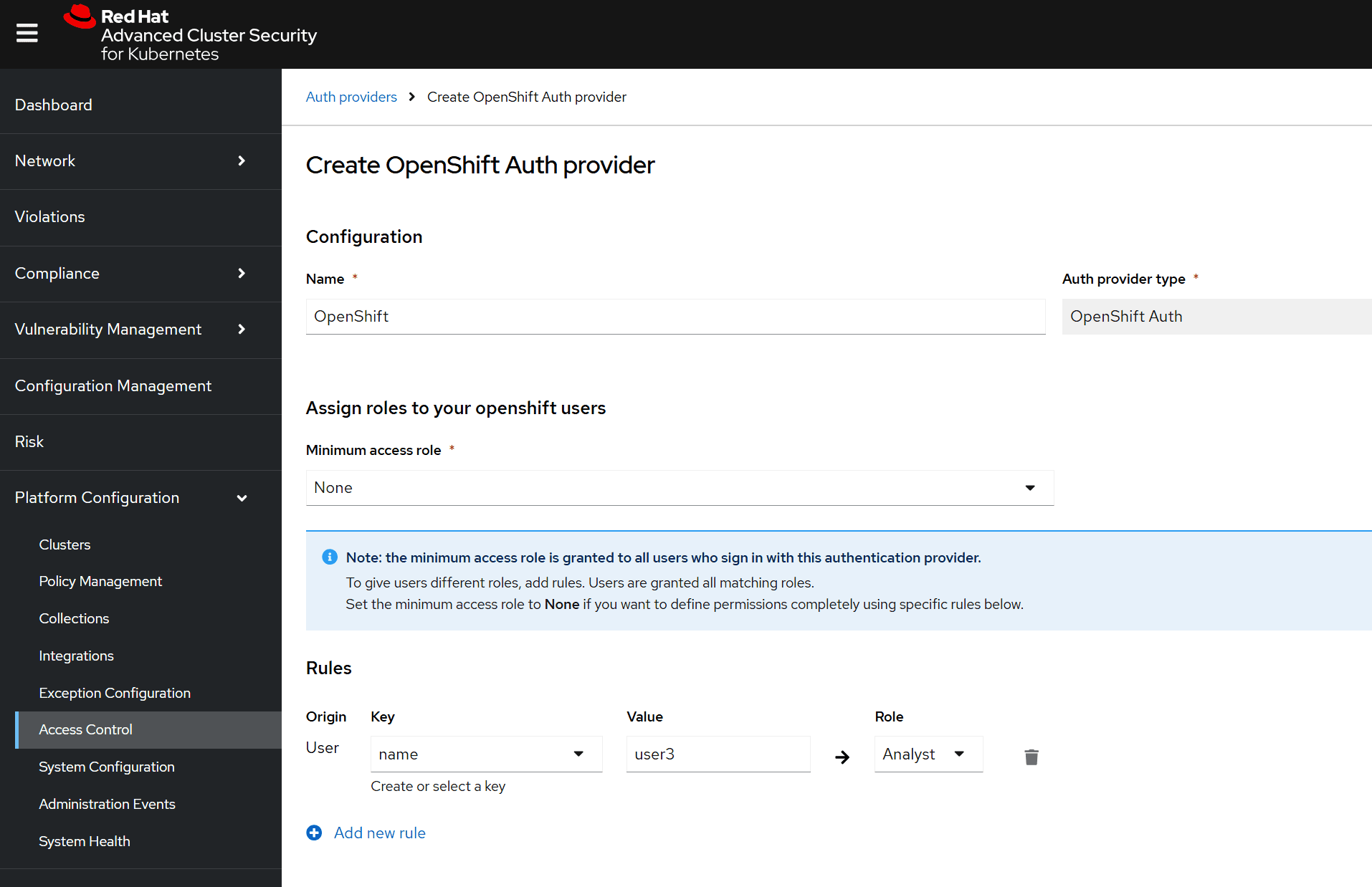

Select Create Auth Provider -> OpenShift Auth. I'm going to name this auth provider OpenShift.
RHACS allows you to set the minimum access role for all users. This means that all OpenShift users who login will be provided a 'minimum' role, as well as any additional roles specified under the 'Rules. I'm going to set the minimum access role as 'None':
The last step here is to create a rule assigning a rule for this user. I know that my user is named user3, so let's create a rule that gives this user the Analyst role when they login via X.509 auth.
Great! Let's save the config.

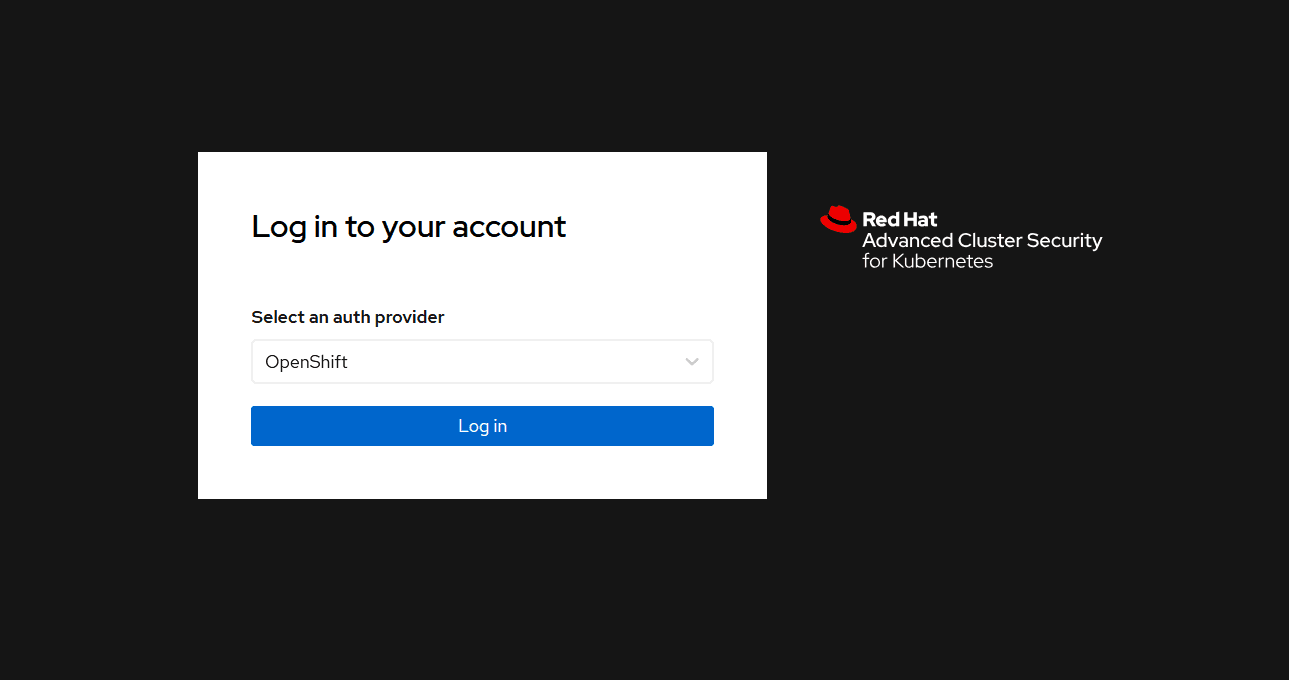

Now when you login to Red Hat Advanced Cluster Security for Kubernetes (RHACS) you should be presented an option to login with OpenShift:

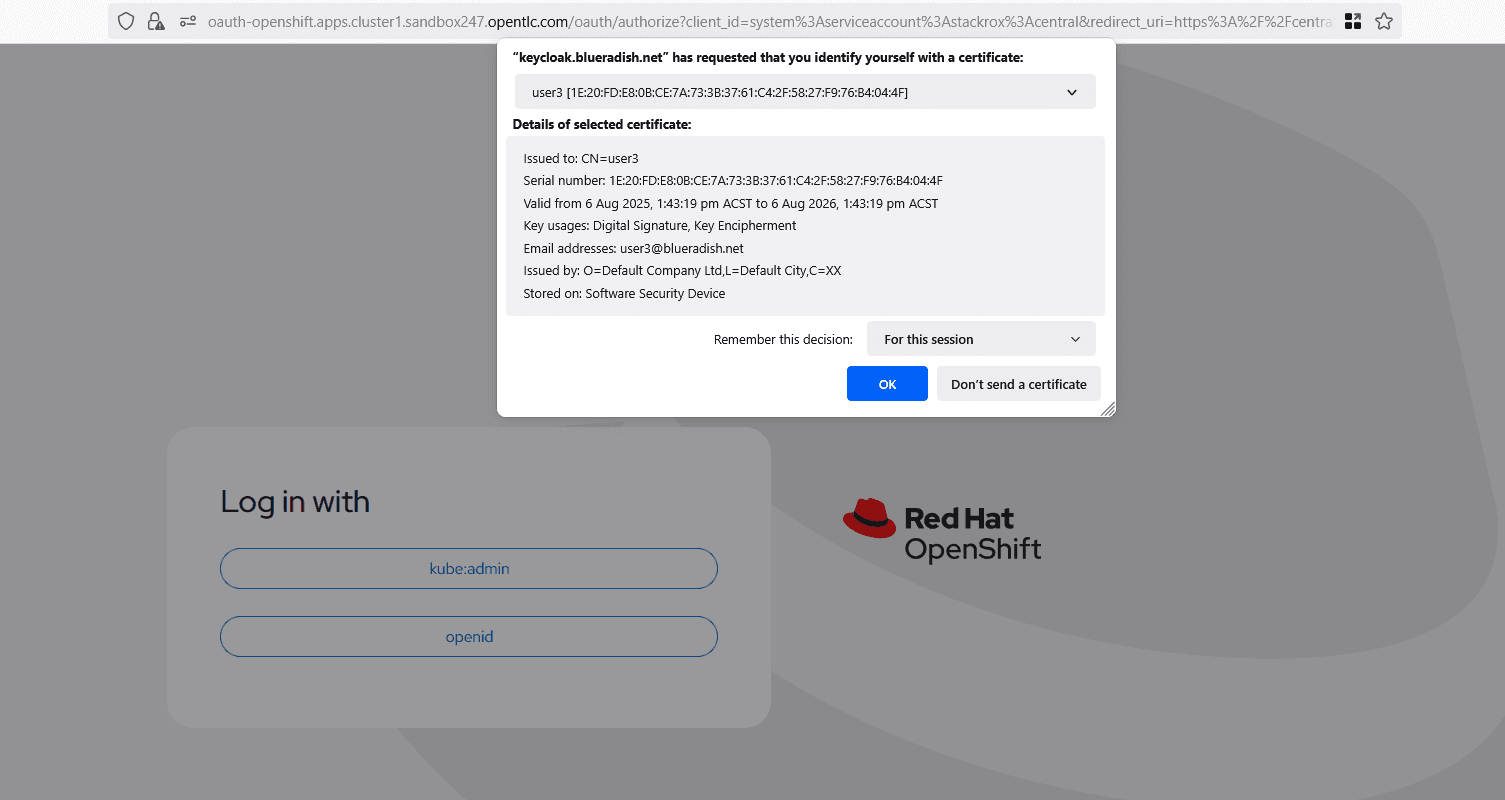

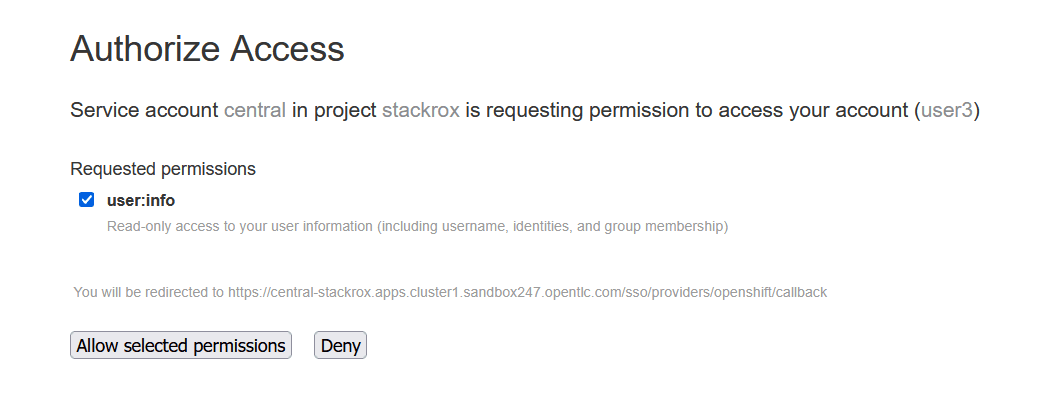

Selecting this option redirects you to OpenShift, where you can select the openid auth option. If you're prompted for a certificate again, select the user3 certificate created earlier. You'll be prompted to authorise access for this user, and simply click Allow selected permissions:

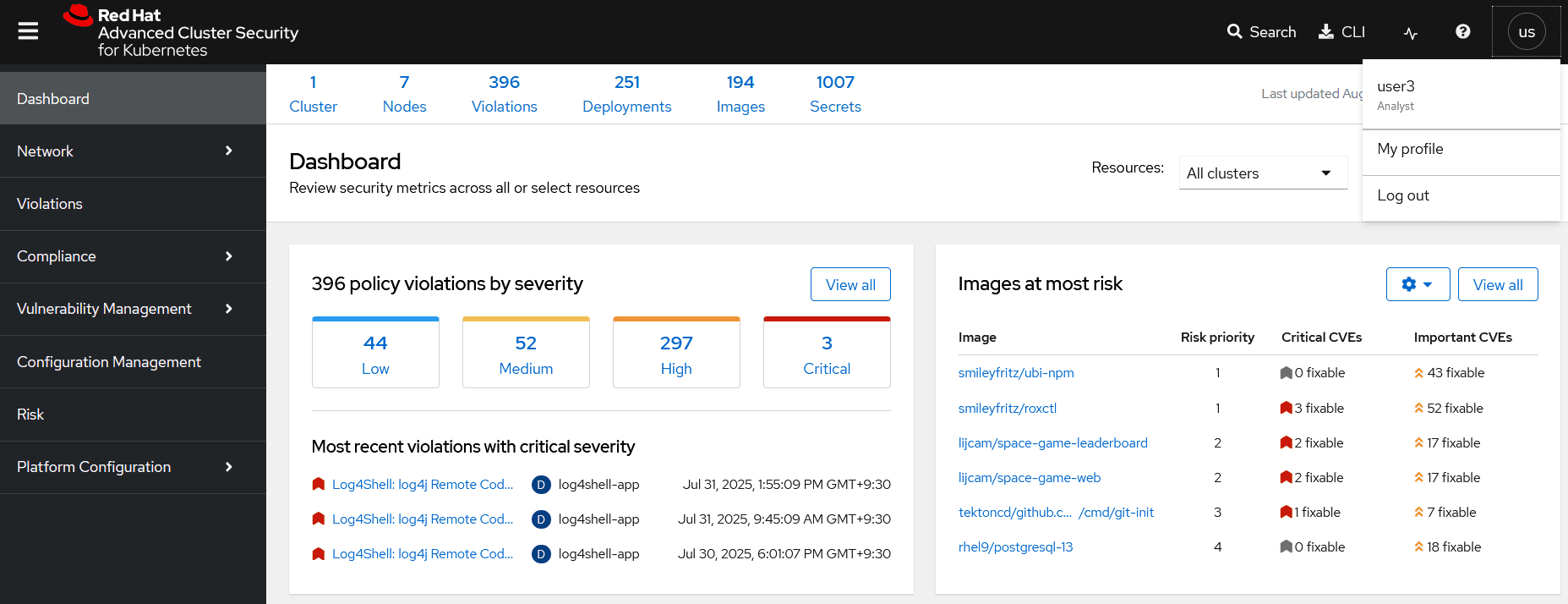

All things going well, you will be logged in as user3, and can see that the Analyst role defined in the auth rule has been correctly applied.
Wrapping up
X.509 certificates are everywhere - everytime you access a website, container image, or happen to be on a spacecraft, X.509 certificates are establishing the identity of the service you're communicating with, and protecting your data.
While X.509 certificates are usually used to identify servers, they can also be used to identify clients. X.509 client authentication is frequently used by banks and government organisations, and in this article I explored X.509 client authentication for OpenShift and Red Hat Advanced Cluster Security for Kubernetes (RHACS). I implemented this using the Red Hat Build of Keycloak, which I installed with an operator to OpenShift, and created a custom authentication flow.
There's several ways you could extend this authentication flow:
Assigning users groups in Keycloak, and tying those groups to roles in OpenShift. This allows you to centrally manage user identity and group associations, though will need you to expose group mappings in the OpenID Connect claims.
Mapping group claims to Red Hat Advanced Cluster Security for Kubernetes (RHACS) users, instead of directly tying RHACS roles to user IDs.
Logging user login / failed login events and pushing these to the SIEM, via the Keycloak RESTful API (what if someone tries to forge a certificate?)
Adding support for certificate revocation lists (CRLs), and revoking user access
I'll explore these use cases and more in future articles. Stay tuned!
