Demystifying RHACS Admission Control

Authors

I've covered Red Hat Advanced Cluster Security for Kubernetes (RHACS) in a few articles to-date:

But, I haven't covered one of the most asked-about topics - admission control! In this article I want to take a closer look at admission control, and some of the key things you need to know about using admission control with Red Hat Advanced Cluster Security for Kubernetes (RHACS).

What is admission control?

An admission controller is a core Kubernetes concept. It's a piece of code within the Kubernetes API server that checks the data arriving in a request to modify or create a resource.

Admission control mechanisms may be validating, mutating, or both. Mutating controllers may modify the data for the resource being modified; validating controllers may not. The Kubernetes project has great docs on admission controllers, which you can find here

Red Hat Advanced Cluster Security for Kubernetes (RHACS) includes a validating admission controller that can validate Kubernetes requests against RHACS policies, providing a Kubernetes-native approach to preventing vulnerable workloads running on OpenShift and Kubernetes clusters.

Understanding "hard" and "soft" enforcement

Often one of the topics that comes up in Red Hat Advanced Cluster Security for Kubernetes (RHACS) discussions is the concept of "hard" and "soft" enforcement for deployment-time policies.

When a user creates deployment on an OpenShift or Kubernetes cluster, it may violate a policy and be "soft" enforced. "Soft" enforcement means actions taken by the sensor running on secured clusters. This is usually referred to as "soft" enforcement as the deployment isn't blocked by the admission controller, but accepted, and pods are scaled down in response to policy violations.

You can see how "soft" enforcement is implemented in the StackRox codebase. It's implemented through a capability called the Enforcer, which processes alert results, and takes action if the policy should be enforced.

Here's the sensor function that takes action when a policy is violated:

if a.GetEnforcement().GetAction() == storage.EnforcementAction_UNSET_ENFORCEMENT {
    continue
}
// Do not enforce if there is a bypass annotation specified
if !enforcers.ShouldEnforce(a.GetDeployment().GetAnnotations()) {
    continue
}
switch stage {
case storage.LifecycleStage_DEPLOY:
    e.actionsC <- &central.SensorEnforcement{
        Enforcement: a.GetEnforcement().Action,
        Resource: &central.SensorEnforcement_Deployment{
            Deployment: generateDeploymentEnforcement(a),
        },
    }
...

This enables RHACS to scale pods down in response to policy violations, or what is sometimes called "soft" enforcement - the deployment isn't blocked, but the pods are scaled down.

"Hard" enforcement is when the Red Hat Advanced Cluster Security for Kubernetes (RHACS) admission controller blocks a deployment, ensuring it is never persisted to etcd, and never created on the cluster. RHACS uses a ValidatingAdmissionWebhook controller to verify that the resource being provisioned complies with the specified security policies. When the OpenShift Container Platform API (or Kubernetes API) server receives a request that matches one of the webhook rules, the API server sends an AdmissionReview request to RHACS. RHACS then accepts or rejects the request based on the configured security policies.

This is sometimes called "hard" enforcement because the deployment is blocked, and never persisted to etcd. It is not accepted to the cluster, like with "soft" enforcement controlled by the sensor.

When would soft enforcement be performed, instead of "hard" enforcement?

Usually the RHACS admission controller blocks workloads that violate deployment-time policies (when enforcing actions are configured), and "hard" enforcing these policies. However, there's a few scenarios where "soft" enforcement is performed, instead of the workload being blocked by the RHACS admission controller. We'll explore these in a few demonstrations too:

  • The admission controller is disabled. If the admission controller is disabled, deployments will not be validated. This results in the deployment being created on the cluster, and pods 'scaled to zero' by the sensor if a policy is violated.

  • The admission controller times-out. If the request takes longer than a specified time to validate - i.e. if the admission controller needs to wait for the image to be scanned - then the admission controller will "fail open" and admit the deployment. Once it is admitted, then the sensor will perform "soft" enforcement.

  • contactImageScanners is set to DoNotScanInline and the policy criteria is image-based: contactImageScanners is a pretty important option. If this is set to DoNotScanInline, then image-based criteria for policies won't be validated against deployments. The admission controller will admit the workload, and then sensor will scale the pods down. We'll see a demonstration of this later.

So really, I see the sensor-based 'scale down' of pods ("soft" enforcement) as a redundancy. If the admission controller fails open, is disabled, times out or is misconfigured, the Red Hat Advanced Cluster Security for Kubernetes (RHACS) sensor will still scale-down pods on the cluster, and ensure that vulnerable code is not running on the platform.

Deploying and configuring the RHACS admission controller

Now that we understand a little more about admission control, let's take a look at deploying the RHACS admission controller.

The admission controller is deployed by default when you deploy Secured Cluster Services via the RHACS operator. Here's the configuration:

apiVersion: platform.stackrox.io/v1alpha1
kind: SecuredCluster
metadata:
  name: stackrox-secured-cluster-services
  namespace: stackrox
spec:
  admissionControl:
    bypass: BreakGlassAnnotation
    contactImageScanners: DoNotScanInline
    listenOnCreates: true
    listenOnEvents: true
    listenOnUpdates: true
    replicas: 3
    timeoutSeconds: 10
...

Let's understand these configuration settings a little more:

  • bypass: This indicates whether the admission controller can be bypassed. It can be set to BreakGlassAnnotation, indicating that an annotation admission.stackrox.io/break-glass can be set on deployments, or Disabled, indicating that the admission controller cannot be bypassed.
  • contactImageScanners: this setting determines whether inline scanning of container images should be performed on previously unscanned images during a deployments admission review by the admission controller. It default to DoNotScanInline, but can be set to ScanIfMissing.
  • listenOnCreates: Controls whether the admission controller listens for 'create' events (e.g. creating a deployment)
  • listenOnEvents: Controls whether the admission controller listens for Kubernetes events (e.g. port-forward and exec)
  • listenOnUpdates: Controls whether the admission controller listens for 'update' events (e.g. updating a deployment). Note that this will not have any effect unless 'Listen On Creates' is set to 'true' as well.
  • replicas: this controls the number of admission controller replicas created on the cluster (defaults to three)
  • timeoutSeconds: this controls the the maximum timeout for an admissions review, upon which the admission controller failing open (i.e. admitting the Kubernetes deployment)

Configuring RHACS policies for admission control

Now that we understand a little more about RHACS admission control and "hard" and "soft" enforcement, let's take a look at admission control in action with Red Hat Advanced Cluster Security for Kubernetes (RHACS).

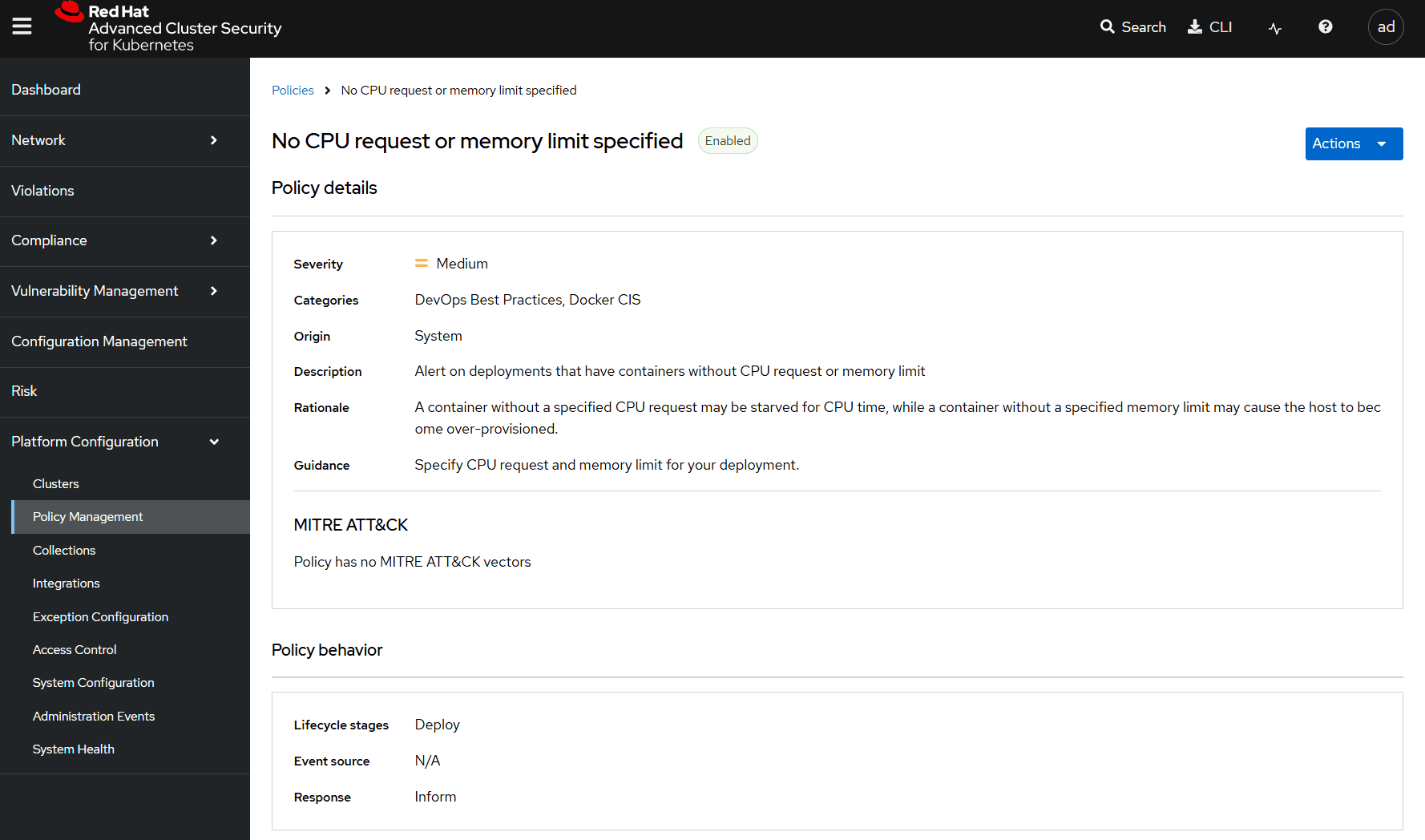

One of the default policies included with RHACS checks whether deployments have CPU and memory limits specified:

admission-control

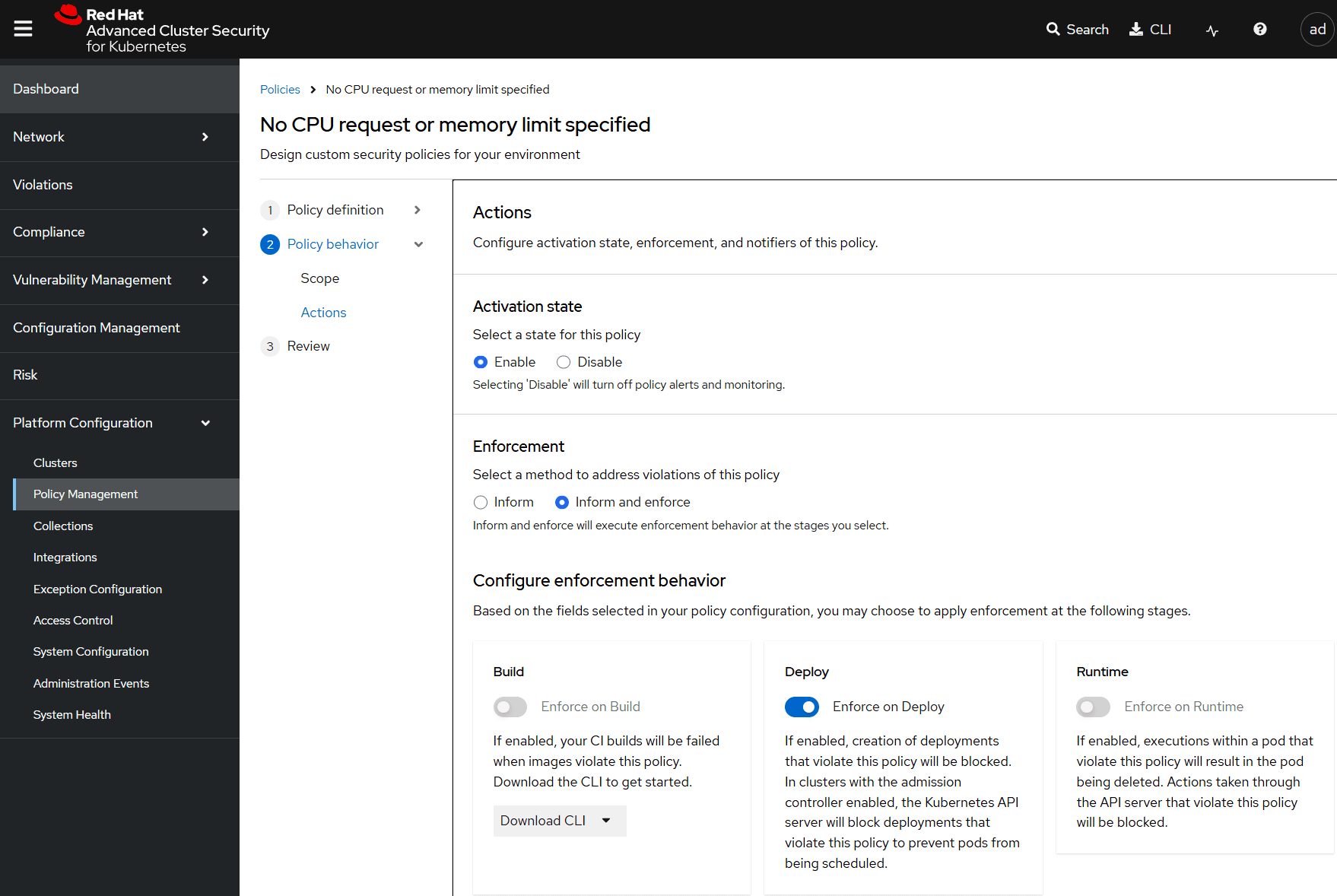

By default this policy does not perform any enforcement actions - it simply creates an alert that a deployment does not have CPU or memory limits specified. To configure this to perform both "soft" and "hard" enforcement, I simply need to toggle the Deploy enforcement action within the policy:

mem-policy-enforce

Now that the policy is enforcing, we can test out a workload without any limits:

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: ubi-test
    app.kubernetes.io/component: ubi-test
    app.kubernetes.io/instance: ubi-test
    app.kubernetes.io/name: ubi-test
    app.kubernetes.io/part-of: ubi-test
  name: ubi-test
  namespace: devops
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: ubi-test
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      annotations:
      labels:
        app: ubi-test
        deployment: ubi-test
    spec:
      containers:
      - image: quay.io/smileyfritz/ubi8:latest
        imagePullPolicy: IfNotPresent
        command:
          - "/bin/bash"
          - "-c"
          - "--"
        args:
          - "while true; do sleep 30; done;"
        name: ubi-test
        ports:
        - containerPort: 8080
          protocol: TCP
        resources: {}
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
deploy-blocked

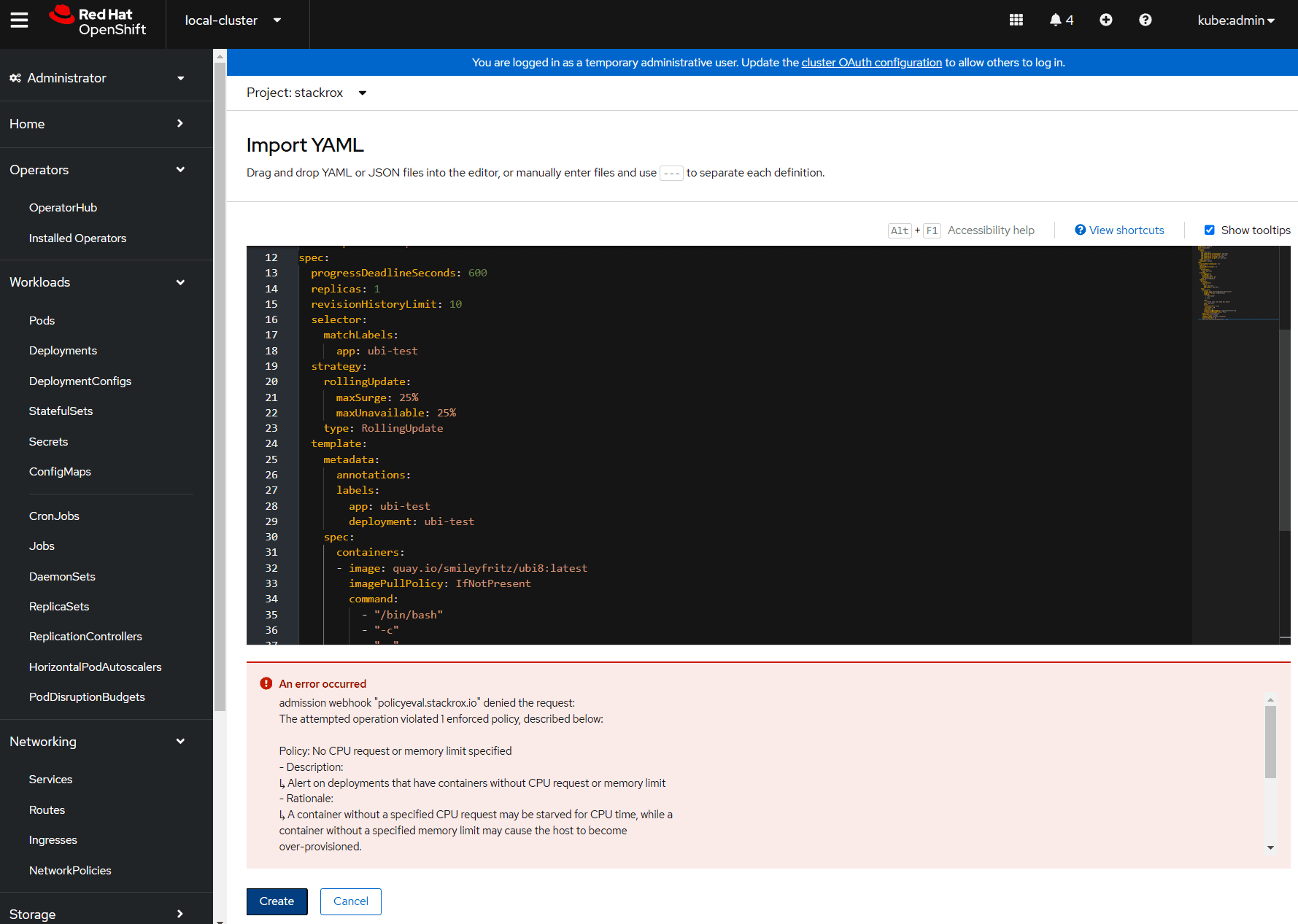

Great! Our deployment was blocked by the admission controller. We can also see this reflected in the RHACS violations page:

deploy-alert

What if we set listenOnCreates to false? I've modified the admission controller on my cluster to look like this:

spec:
  admissionControl:
    bypass: BreakGlassAnnotation
    contactImageScanners: DoNotScanInline
    listenOnCreates: false
    listenOnEvents: true
    listenOnUpdates: false
    replicas: 3
    timeoutSeconds: 10

Now if I create the same deployment, I see different behaviour:

scaled-zero1
scaled-zero2
scaled-zero3

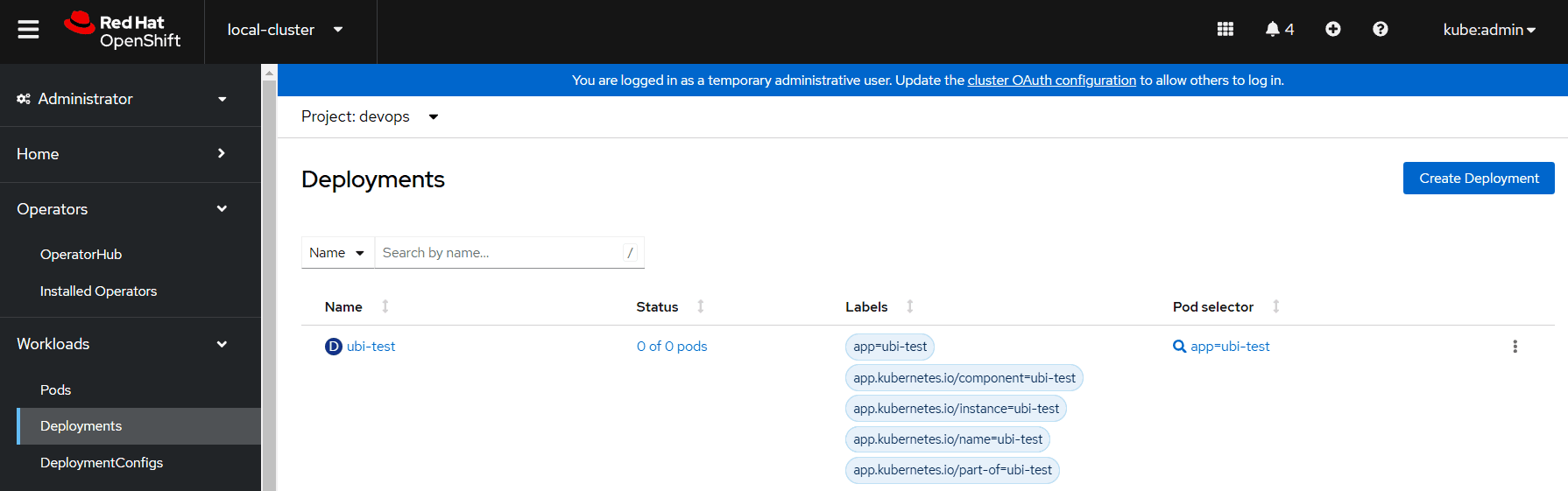

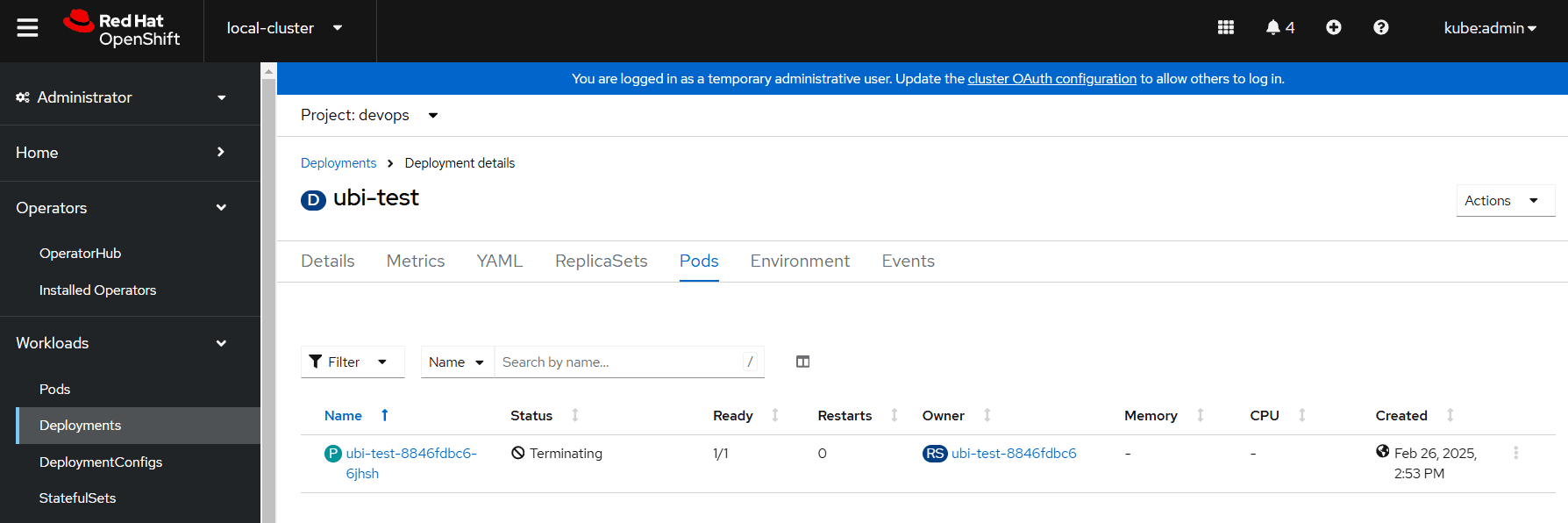

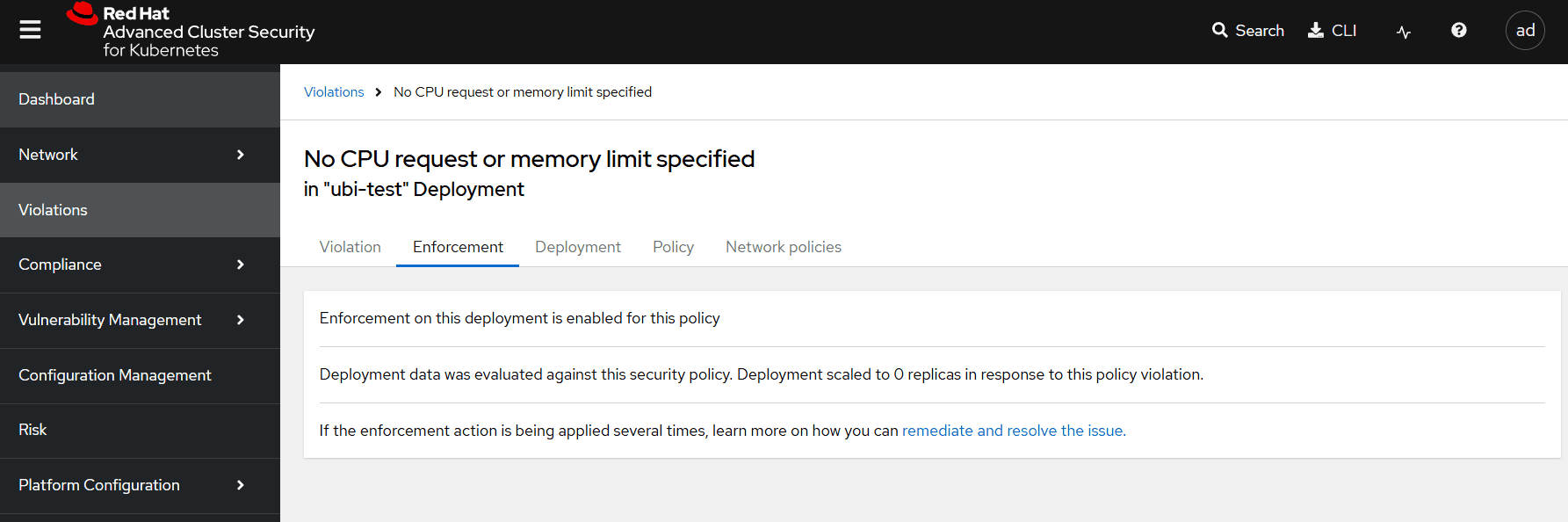

My deployment was accepted instead of being blocked, and the pods were scaled to zero! This is because I set listenOnCreates to false. This meant that the RHACS admission controller didn't validate the deployment (if listenOnCreates was true, the admission controller would have blocked the deployment), and instead the deployment was accepted, and the RHACS sensor scaled pods to zero instead ("soft" enforcement)

Enforcing a policy based on image criteria

The last policy we configured to enforce focused on the deployment spec. It checked whether the containers referenced in the deployment had CPU and memory limits specified, and if not, blocked the deployment.

Let's try a policy based on image-criteria, rather than deployment spec. I want to check if an image has the nmap-ncat package present, and if it does, to block the deployment. Why? This is a super-useful command-line tool for attackers, and could be used to support a living-off-the-land strategy on my platform.

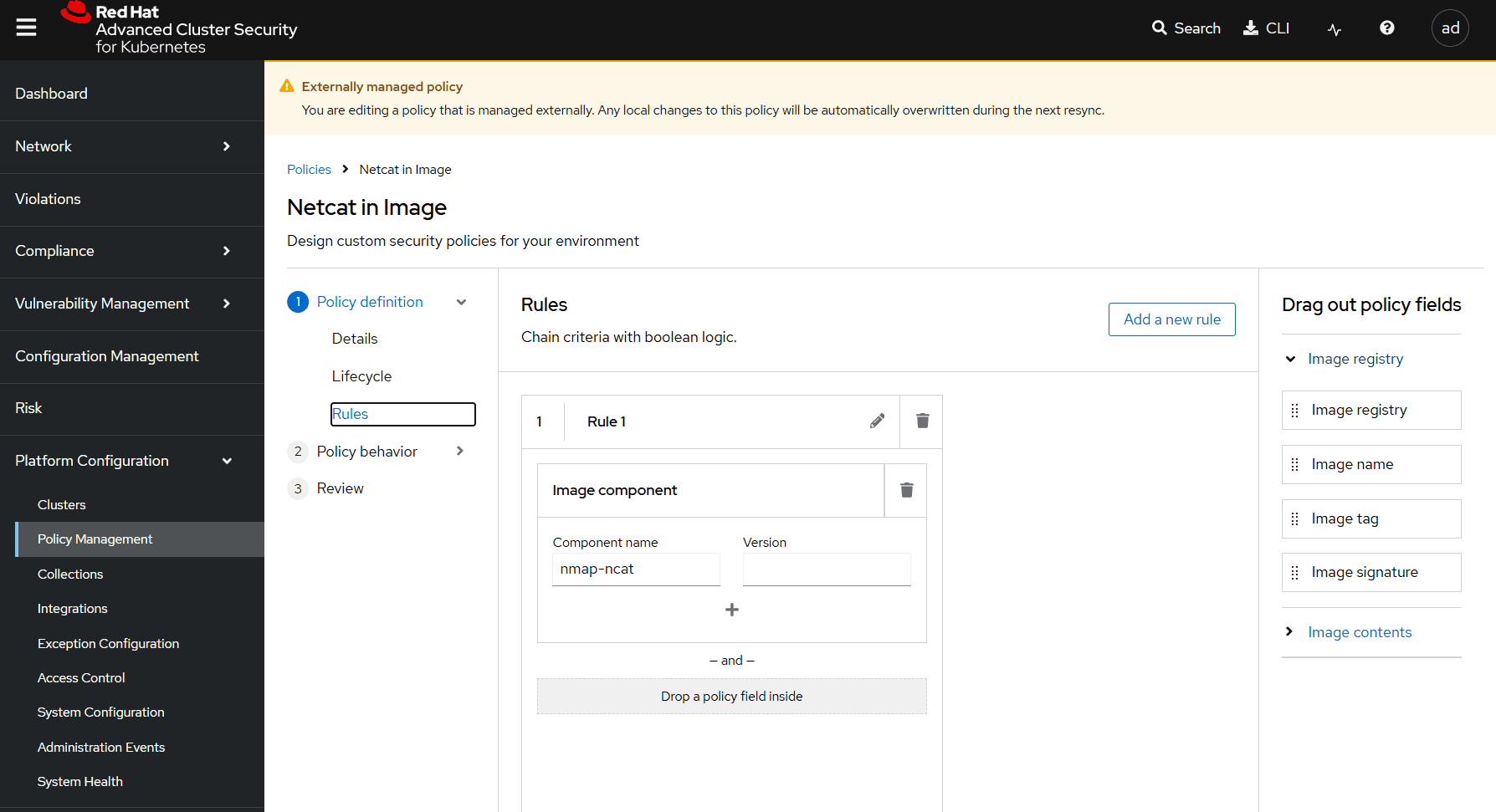

This policy checks for the nmap-ncat package in containers, and is set to enforce on both Build and Deploy (you can see that the policy is externally managed, as I'm managing this policy with GitOps)

netcat-pol1
netcat-pol2

Ok! Now let's try to deploy a container image that I know contains netcat. Before creating the deployment though, let's just make sure that the admission controller is reconfigured to listen on 'creates':

spec:
  admissionControl:
    bypass: BreakGlassAnnotation
    contactImageScanners: DoNotScanInline
    listenOnCreates: true
    listenOnEvents: true
    listenOnUpdates: true
    replicas: 3
    timeoutSeconds: 10

OK. Now let's create our known-vulnerable deployment:

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: chat-client
    app.kubernetes.io/component: chat-client
    app.kubernetes.io/instance: chat-client
    app.kubernetes.io/name: chat-client
    app.kubernetes.io/part-of: chat-client
  name: chat-client
  namespace: devops
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: chat-client
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      annotations:
      labels:
        app: chat-client
        deployment: chat-client
    spec:
      containers:
      - image: quay.io/smileyfritz/chat-client:latest
        imagePullPolicy: IfNotPresent
        command:
          - "/bin/bash"
          - "-c"
          - "--"
        args:
          - "while true; do sleep 30; done;"
        name: chat-client
        ports:
        - containerPort: 8080
          protocol: TCP
        resources: {}
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
scaled-zero5
scaled-zero5-alert

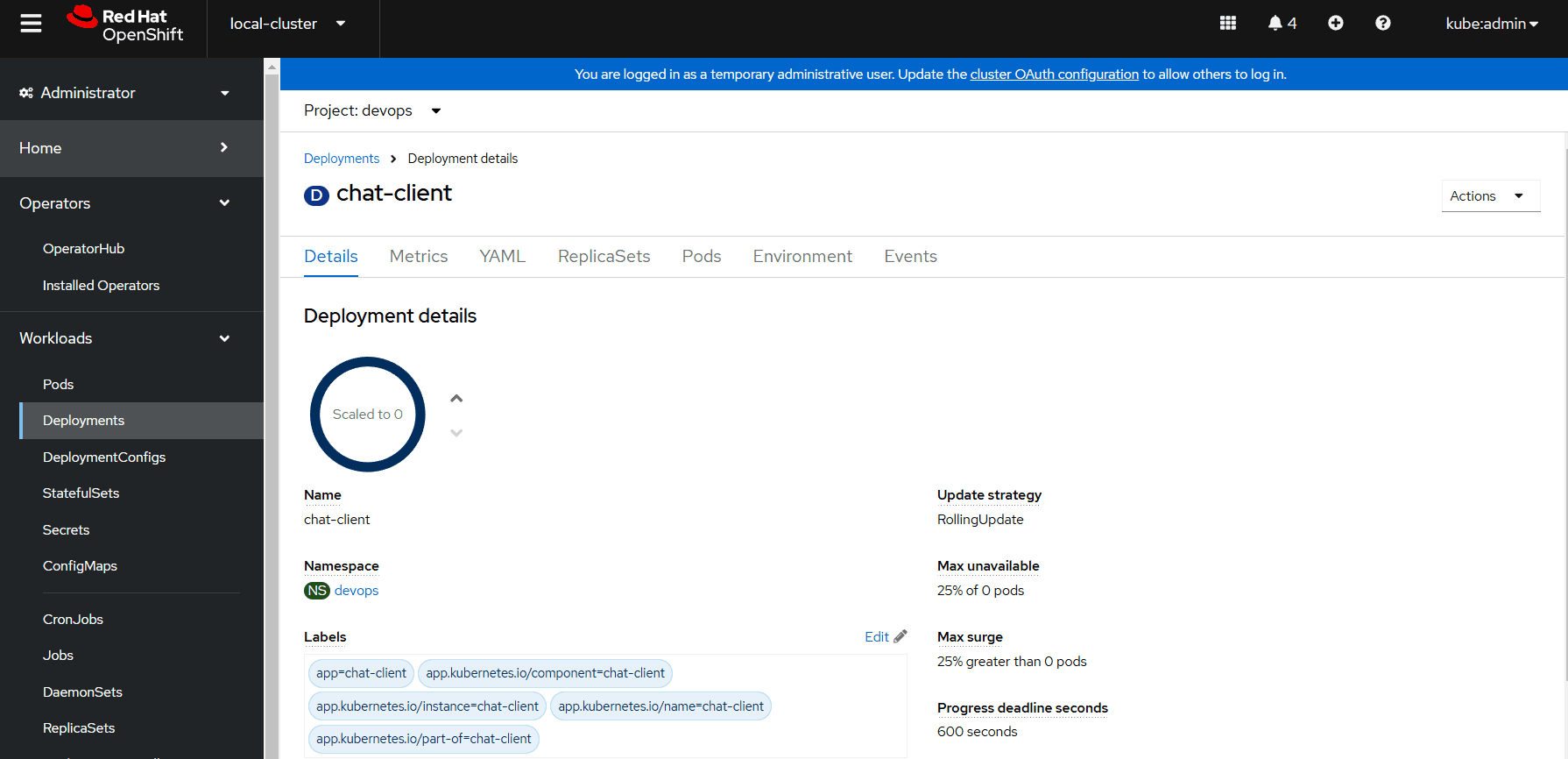

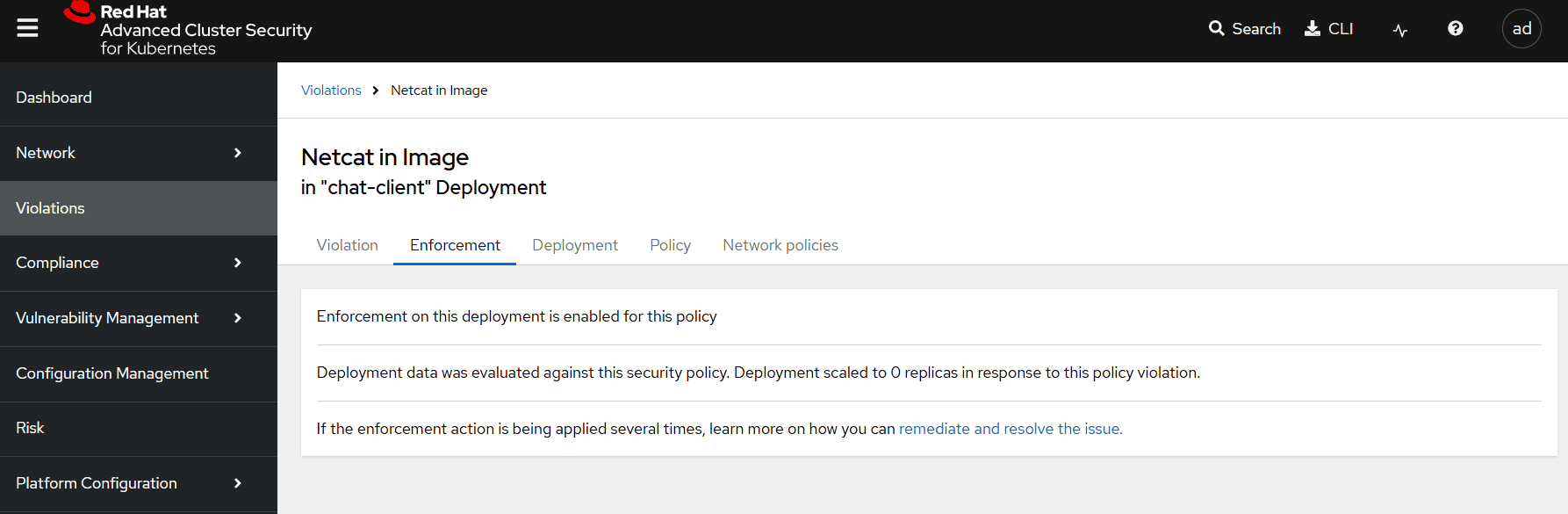

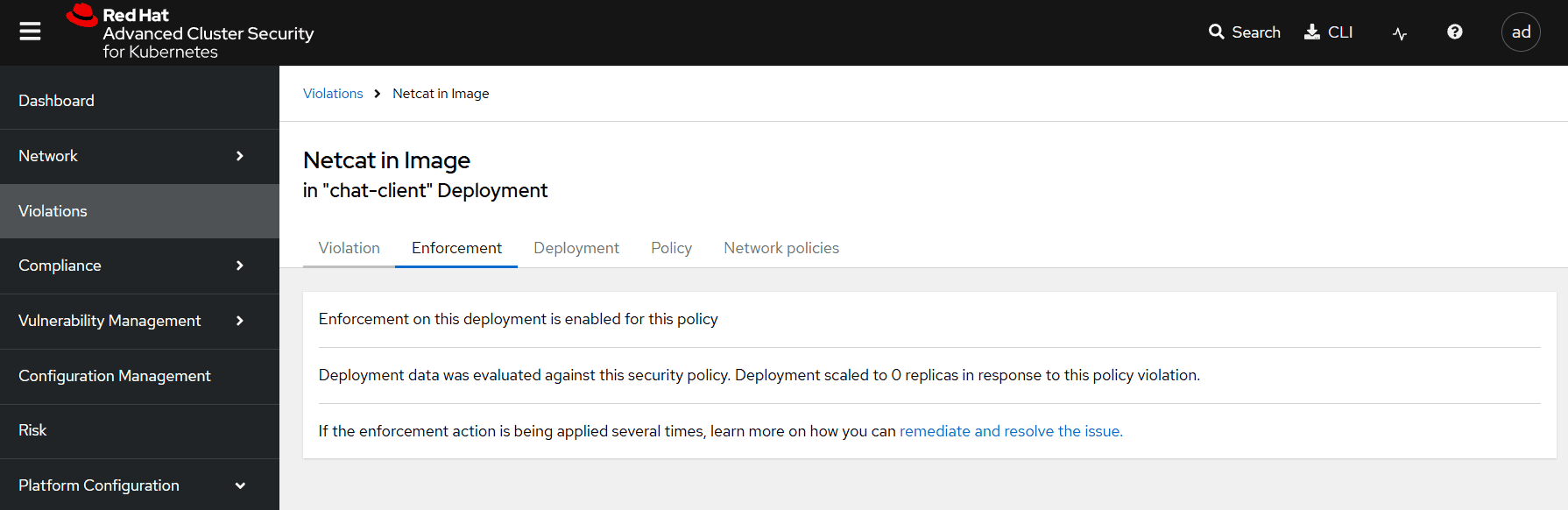

Hmm. This is interesting. My policy was set to enforce at Deploy, but the policy was "soft" enforced (by the RHACS sensor), and not "hard" enforced by the admission controller. Why?

The answer is that little-known option - contactImageScanners. To make decisions about image-based criteria, the admission controller may need to contact the RHACS image scanner, and without this setting, it can't. This means that the admission controller "failed open" in this case, admitting the workload, and the deployment was then "soft" enforced by the RHACS sensor, and scaled to zero.

Ok, let's update contactImageScanners. I'm going to set it to ScanIfMissing, indicating that the admission controller should invoke a scan for images, and wait until the scan results are available to make decisions based on image criteria.

Here's my updated admission controller spec:

spec:
  admissionControl:
    bypass: BreakGlassAnnotation
    contactImageScanners: ScanIfMissing
    listenOnCreates: true
    listenOnEvents: true
    listenOnUpdates: true
    replicas: 3
    timeoutSeconds: 10

NB: after modifying the contactImageScanners setting, you will need to destroy the admission-controller and sensor pods, and wait for them to recreate on the cluster.

Let's try the deployment again:

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: chat-client
    app.kubernetes.io/component: chat-client
    app.kubernetes.io/instance: chat-client
    app.kubernetes.io/name: chat-client
    app.kubernetes.io/part-of: chat-client
  name: chat-client
  namespace: devops
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: chat-client
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      annotations:
      labels:
        app: chat-client
        deployment: chat-client
    spec:
      containers:
      - image: quay.io/smileyfritz/chat-client:latest
        imagePullPolicy: IfNotPresent
        command:
          - "/bin/bash"
          - "-c"
          - "--"
        args:
          - "while true; do sleep 30; done;"
        name: chat-client
        ports:
        - containerPort: 8080
          protocol: TCP
        resources: {}
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30

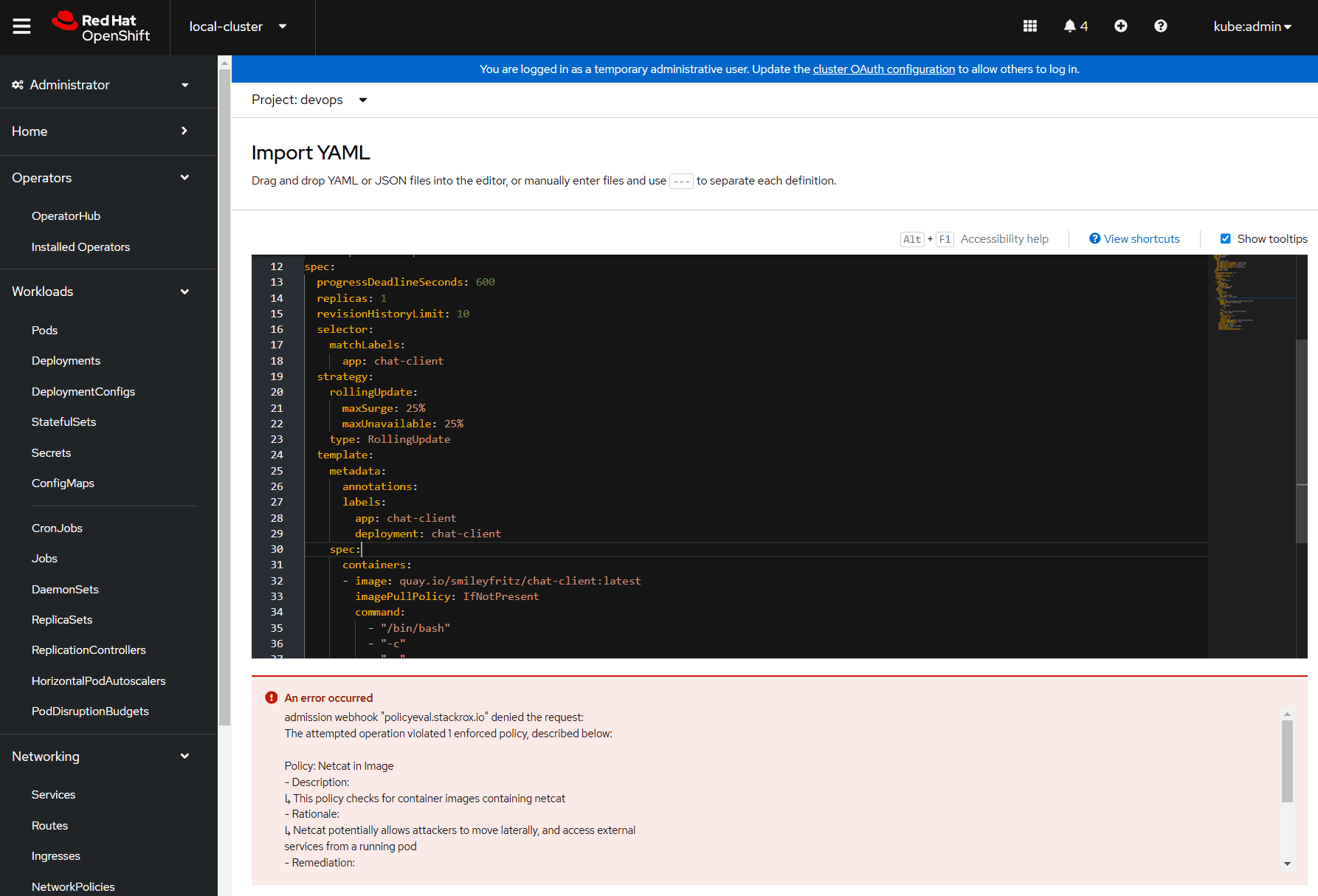

netcat-blocked1
netcat-blocked2
netcat-blocked3

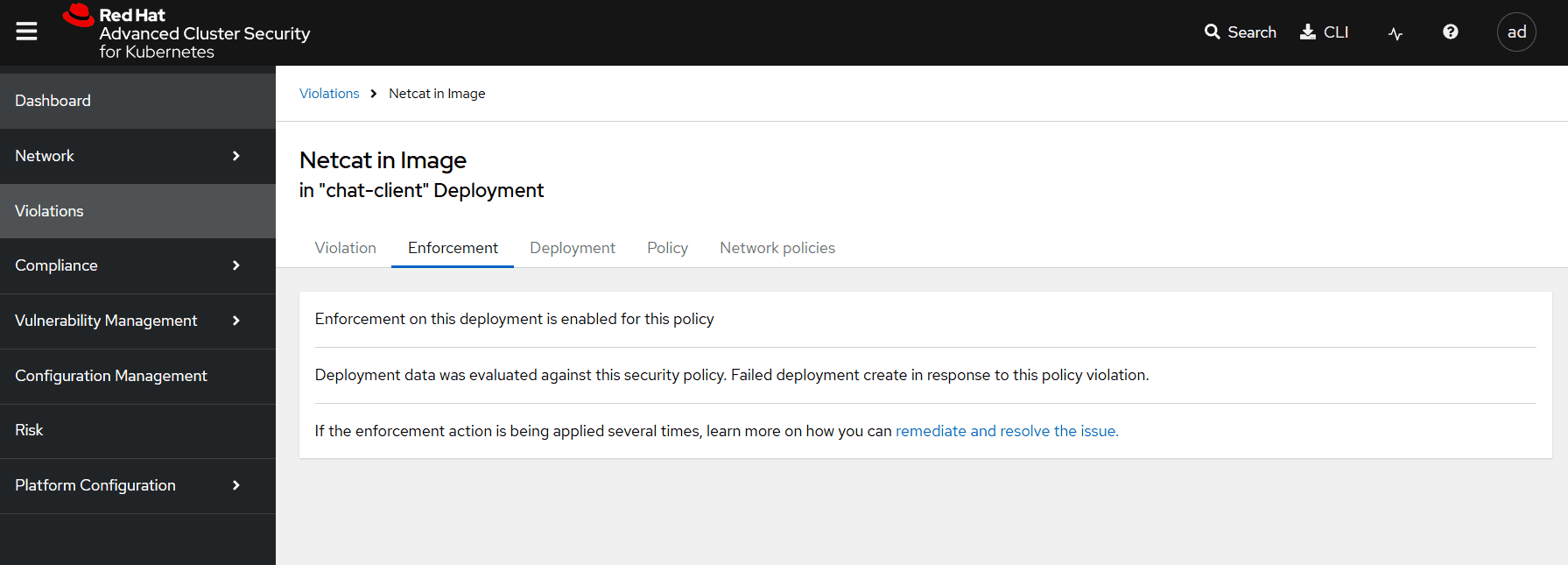

Great! By updating contactImageScanners to ScanIfMissing, the admission controller can now verify image contents, and block deployments that violate policies describing image-based criteria.

Modifying the timeout value for the admission controller

Let's explore another scenario. What happens if the admission controller times out, and "fails open"?

To force this scenario, I'm going to set the timeoutSeconds value to 1, only giving the admission controller one second to contact image scanners, or perform other activities to verify deployments.

apiVersion: platform.stackrox.io/v1alpha1
kind: SecuredCluster
metadata:
  name: stackrox-secured-cluster-services
  namespace: stackrox
spec:
  admissionControl:
    bypass: BreakGlassAnnotation
    contactImageScanners: ScanIfMissing
    listenOnCreates: true
    listenOnEvents: true
    listenOnUpdates: true
    replicas: 3
    timeoutSeconds: 1

Now let's try invoking the same image criteria-based policy and checking for netcat present in a container image:

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: chat-client
    app.kubernetes.io/component: chat-client
    app.kubernetes.io/instance: chat-client
    app.kubernetes.io/name: chat-client
    app.kubernetes.io/part-of: chat-client
  name: chat-client
  namespace: devops
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: chat-client
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      annotations:
      labels:
        app: chat-client
        deployment: chat-client
    spec:
      containers:
      - image: quay.io/smileyfritz/chat-client:latest
        imagePullPolicy: IfNotPresent
        command:
          - "/bin/bash"
          - "-c"
          - "--"
        args:
          - "while true; do sleep 30; done;"
        name: chat-client
        ports:
        - containerPort: 8080
          protocol: TCP
        resources: {}
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
timeout1
timeout2

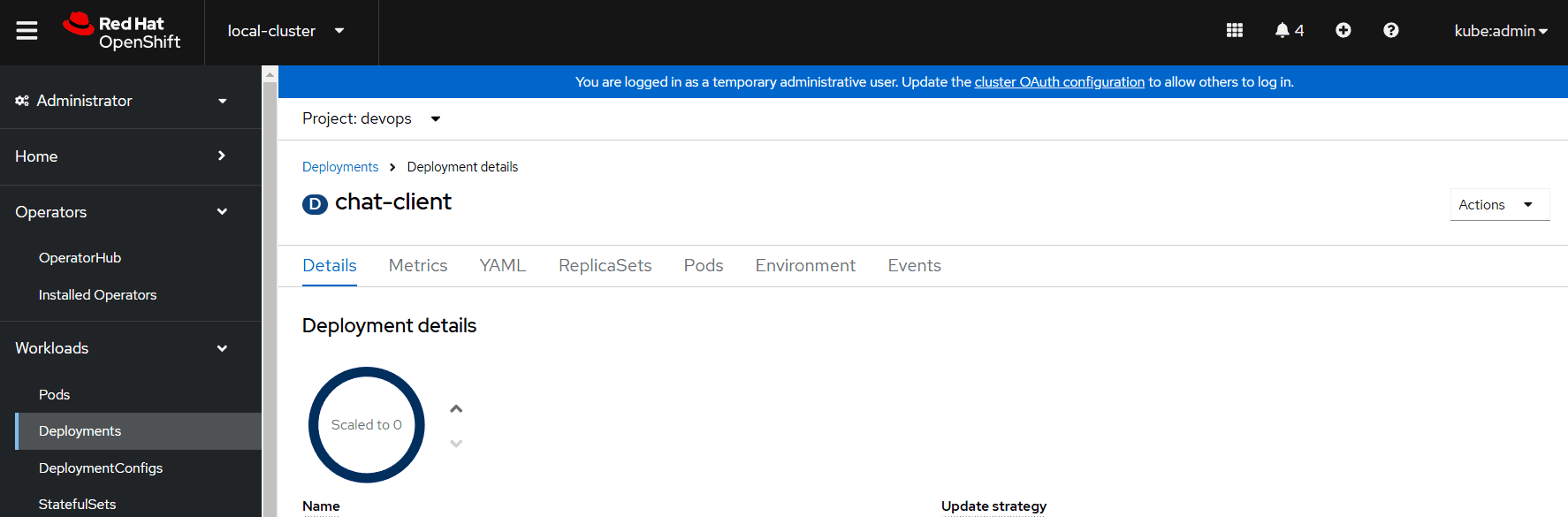

With only one second to validate the image scan, the admission controller has "timed out" - it has failed to verify the image contents in that time, and verify whether the image contains netcat. The admission controller has "failed open", admitting the workload, and the RHACS sensor has instead taken action and scaled pods to zero in response to the policy violation.

Wrap-up

This was a pretty short article, looking at a core Red Hat Advanced Cluster Security for Kubernetes (RHACS) concept, admission control. I explored the differences between "soft" and "hard" enforcement, the different configuration options available, and some of the scenarios in which "soft" and "hard" enforcement of RHACS policies takes place. I hope this has helped :)
