Exploring the CIS benchmarks and containers

Authors

The Center for Internet Security (CIS) Benchmarks provide prescriptive configuration recommendations. They're commonly used to provide consistent hardening to a server fleet or a set of applications, and are distributed free of charge in PDF format for non-commercial use.

These controls provide a consistent, validated baseline for system hardening for servers. For example, the CIS Benchmark for Red Hat Enterprise Linux (RHEL) specifies a number of controls that need to be implemented for a system to be compliant, for example:

  • Installing the sudo package
  • Configuring password policies
  • Configuring SSH options

Containers differ from servers though. I don't need sudo in a container - in fact, it's better not to have it - but it's one of the required checks in the CIS benchmark. I also shouldn't have SSH exposed inside a container, presenting another attack surface. So how are the CIS Benchmarks relevant for containers, if at all?

CIS Benchmarks for Red Hat Enterprise Linux (RHEL)

Red Hat has provided the CIS Benchmark for Red Hat Enterprise Linux (RHEL) with the scap-security-guide RPM since RHEL 8.3. This provides a number of capabilities for organisations to adopt the CIS Benchmark for RHEL:

  • An SCAP Extensible Configuration Checklist Description Format (XCCDF), that can be used to scan systems for compliance with the benchmark
  • An Ansible playbook that can be used to remediate systems that have drifted
  • Integration with the RHEL Anaconda installer, allowing you to provision a system with the CIS Benchmark for RHEL already implemented.

Using OpenSCAP tools to scan a system

Let's use the OpenSCAP tooling available with Red Hat Enterprise Linux (RHEL) to scan a system using the CIS benchmark. Firstly, you'll need to install the scap-security-guide and openscap-scanner RPMs:

$ sudo yum install scap-security-guide openscap-scanner

The scap-security-guide RPM provides Ansible playbooks, SCAP profiles (in XML format), and kickstart snippets, which can be used to remediate, scan and provision systems hardened against the CIS Benchmarks. Here's a listing of the Ansible playbooks and Kickstart snippets for the CIS Benchmarks, as well as the SCAP datastream file containing the XCCDF profiles.

$ rpm -ql scap-security-guide
...
/usr/share/scap-security-guide/ansible/rhel9-playbook-cis.yml
/usr/share/scap-security-guide/ansible/rhel9-playbook-cis_server_l1.yml
/usr/share/scap-security-guide/ansible/rhel9-playbook-cis_workstation_l1.yml
/usr/share/scap-security-guide/ansible/rhel9-playbook-cis_workstation_l2.yml
...
/usr/share/scap-security-guide/kickstart/ssg-rhel9-cis-ks.cfg
/usr/share/scap-security-guide/kickstart/ssg-rhel9-cis_server_l1-ks.cfg
/usr/share/scap-security-guide/kickstart/ssg-rhel9-cis_workstation_l1-ks.cfg
/usr/share/scap-security-guide/kickstart/ssg-rhel9-cis_workstation_l2-ks.cfg
...
/usr/share/xml/scap/ssg/content/ssg-rhel9-ds.xml
...

You can see the CIS Benchmark profiles available by using the oscap tool to inspect the ssg-rhel9-ds.xml SCAP datastream file:

$ oscap info /usr/share/xml/scap/ssg/content/ssg-rhel9-ds.xml
Document type: Source Data Stream
Imported: 2023-08-17T23:50:04

Stream: scap_org.open-scap_datastream_from_xccdf_ssg-rhel9-xccdf.xml
Generated: (null)
Version: 1.3
Checklists:
        Ref-Id: scap_org.open-scap_cref_ssg-rhel9-xccdf.xml
WARNING: Datastream component 'scap_org.open-scap_cref_security-data-oval-v2-RHEL9-rhel-9.oval.xml.bz2' points out to the remote 'https://access.redhat.com/security/data/oval/v2/RHEL9/rhel-9.oval.xml.bz2'. Use '--fetch-remote-resources' option to download it.
WARNING: Skipping 'https://access.redhat.com/security/data/oval/v2/RHEL9/rhel-9.oval.xml.bz2' file which is referenced from datastream
                Status: draft
                Generated: 2023-08-17
                Resolved: true
                Profiles:
                        ...
                        Title: CIS Red Hat Enterprise Linux 9 Benchmark for Level 2 - Server
                                Id: xccdf_org.ssgproject.content_profile_cis
                        Title: CIS Red Hat Enterprise Linux 9 Benchmark for Level 1 - Server
                                Id: xccdf_org.ssgproject.content_profile_cis_server_l1
                        Title: CIS Red Hat Enterprise Linux 9 Benchmark for Level 1 - Workstation
                                Id: xccdf_org.ssgproject.content_profile_cis_workstation_l1
                        Title: CIS Red Hat Enterprise Linux 9 Benchmark for Level 2 - Workstation
                                Id: xccdf_org.ssgproject.content_profile_cis_workstation_l2
                        ...

There's four CIS Benchmarks shipped with Red Hat Enterprise Linux (RHEL), and I'm going to perform a scan using the CIS Red Hat Enterprise Linux 9 Benchmark for Level 2 - Server profile. I can simply use the oscap CLI to kick this off:

# oscap xccdf eval --profile xccdf_org.ssgproject.content_profile_cis --results-arf /tmp/rhel-results.xml /usr/share/xml/scap/ssg/content/ssg-rhel9-ds.xml

You should start seeing the CIS Benchmark controls evaluated on the system:

...
--- Starting Evaluation ---

Title   Install AIDE
Rule    xccdf_org.ssgproject.content_rule_package_aide_installed
Ident   CCE-90843-4
Result  fail

Title   Build and Test AIDE Database
Rule    xccdf_org.ssgproject.content_rule_aide_build_database
Ident   CCE-83438-2
Result  fail

Title   Configure AIDE to Verify the Audit Tools
Rule    xccdf_org.ssgproject.content_rule_aide_check_audit_tools
Ident   CCE-87757-1
Result  fail

Title   Configure Periodic Execution of AIDE
Rule    xccdf_org.ssgproject.content_rule_aide_periodic_cron_checking
Ident   CCE-83437-4
Result  fail

Title   Configure System Cryptography Policy
Rule    xccdf_org.ssgproject.content_rule_configure_crypto_policy
Ident   CCE-83450-7
Result  pass

Once the scan is complete, the results will be listed in Asset Reporting Format (ARF):

# head /tmp/rhel-results.xml
<?xml version="1.0" encoding="UTF-8"?>
<arf:asset-report-collection xmlns:arf="http://scap.nist.gov/schema/asset-reporting-format/1.1" xmlns:core="http://scap.nist.gov/schema/reporting-core/1.1" xmlns:ai="http://scap.nist.gov/schema/asset-identification/1.1">
  <core:relationships xmlns:arfvocab="http://scap.nist.gov/specifications/arf/vocabulary/relationships/1.0#">
    <core:relationship type="arfvocab:createdFor" subject="xccdf1">
      <core:ref>collection1</core:ref>
    </core:relationship>
    <core:relationship type="arfvocab:isAbout" subject="xccdf1">
      <core:ref>asset0</core:ref>
    </core:relationship>
  </core:relationships>

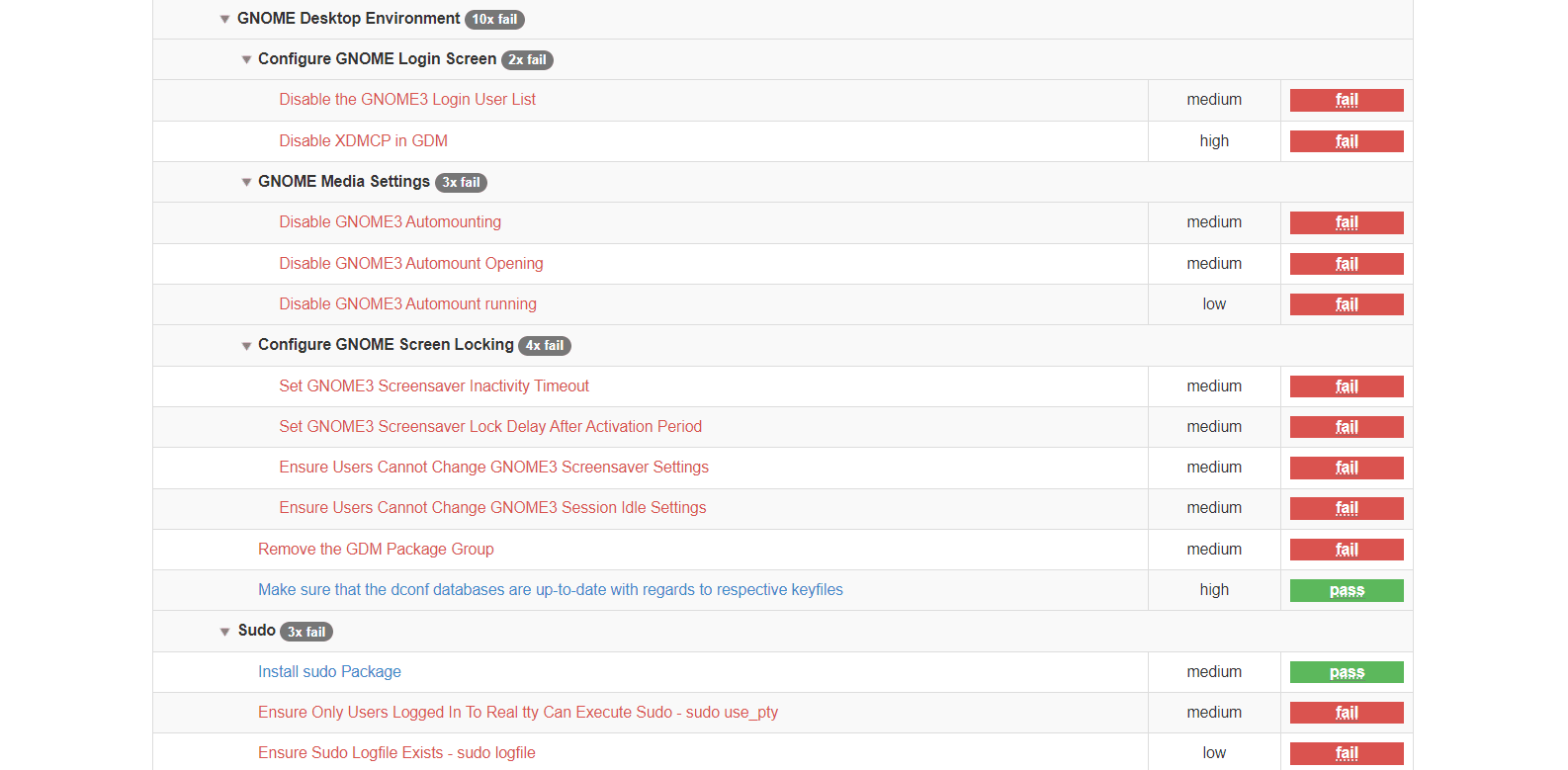

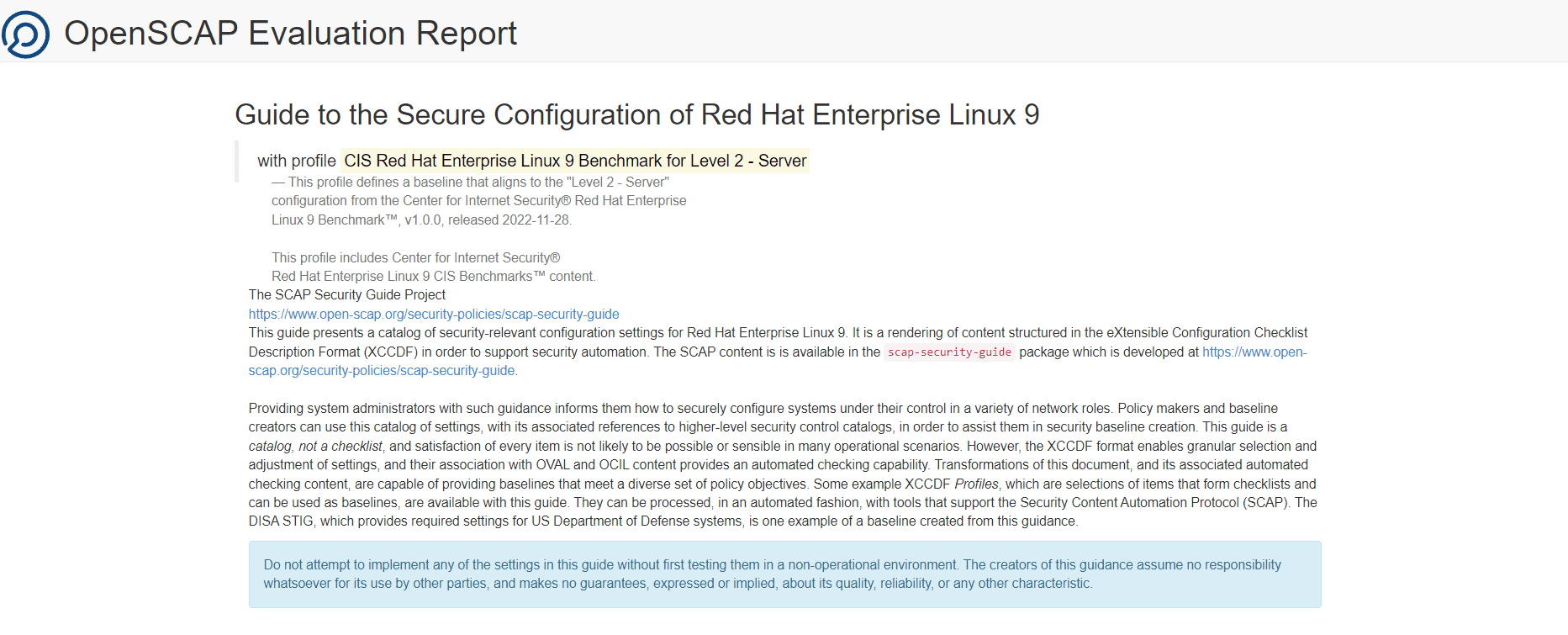

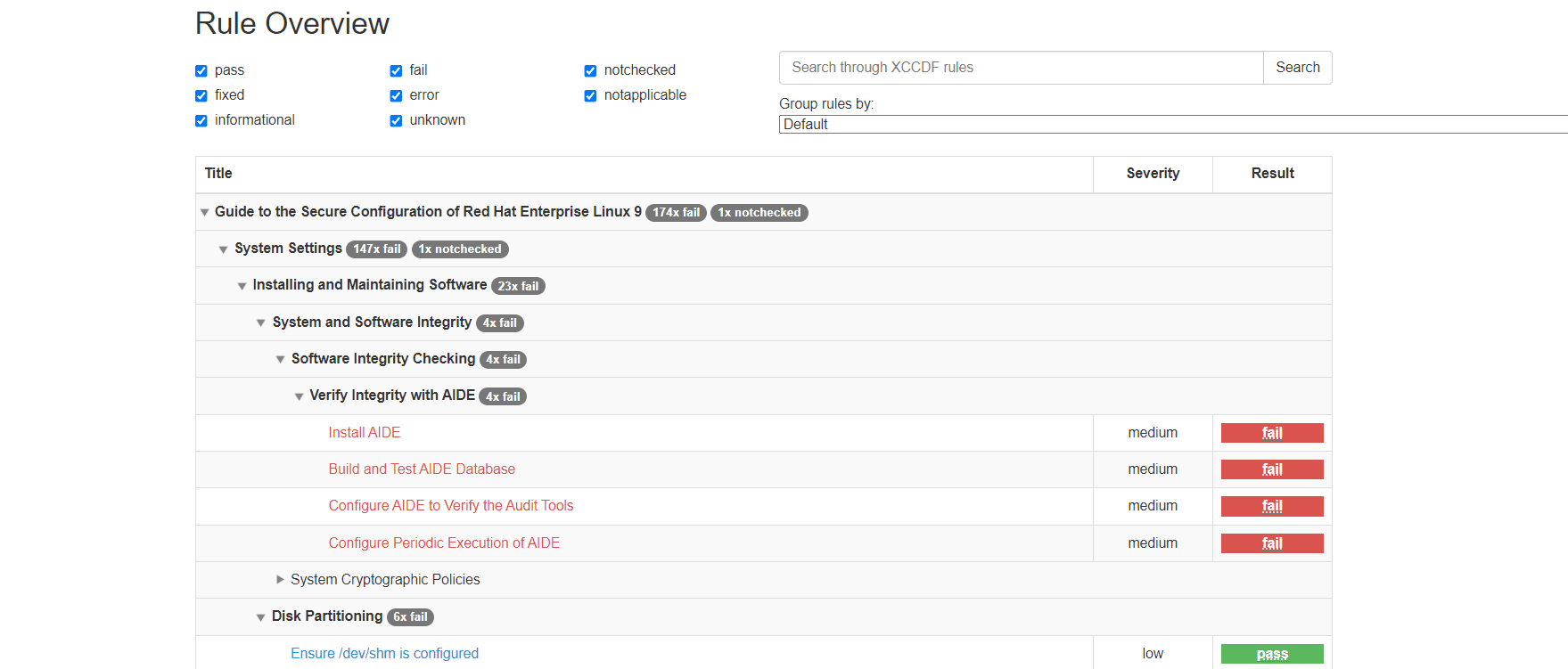

You can use the oscap CLI to generate a HTML report from the results, and I've added mine here for you to inspect.

oscap xccdf generate report arf-results.xml > results.html
rhel4
rhel2
rhel3
rhel1

CIS Benchmarks and containers

If the CIS Benchmark applies to RHEL, does it then also apply to RHEL-based containers? I would argue for a lot of the controls the answer is a resounding 'no'. Let's explore!

I can use the oscap-podman tool to perform a CIS scan of a container image, similar to how we scanned a RHEL system. To scan a Red Hat Universal Base Image (UBI) with oscap-podman, I first need to pull it down:

$ sudo -i
# podman pull registry.access.redhat.com/ubi9:latest

As this is a RHEL-based image, I'm going to use the CIS L2 benchmark for RHEL for this scan:

$ oscap info /usr/share/xml/scap/ssg/content/ssg-rhel9-ds.xml
Profiles:
...
                        Title: CIS Red Hat Enterprise Linux 9 Benchmark for Level 2 - Server
                                Id: xccdf_org.ssgproject.content_profile_cis

I can then grab the image ID and perform a scan, using the same SCAP content we used to scan a RHEL system:

# podman images | grep ubi9
registry.access.redhat.com/ubi9/ubi                                   latest                2a2c2b7af8db  4 months ago   217 MB

# oscap-podman 2a2c2b7af8db xccdf eval --results-arf /tmp/results.xml --profile xccdf_org.ssgproject.content_profile_cis /usr/share/xml/scap/ssg/content/ssg-rhel9-ds.xml

When the scan completes, you should have an SCAP results file available in Asset Reporting Format (ARF), the same as the RHEL scan above:

# head /tmp/results.xml

<?xml version="1.0" encoding="UTF-8"?>
<arf:asset-report-collection xmlns:arf="http://scap.nist.gov/schema/asset-reporting-format/1.1" xmlns:core="http://scap.nist.gov/schema/reporting-core/1.1" xmlns:ai="http://scap.nist.gov/schema/asset-identification/1.1">
  <core:relationships xmlns:arfvocab="http://scap.nist.gov/specifications/arf/vocabulary/relationships/1.0#">
    <core:relationship type="arfvocab:createdFor" subject="xccdf1">
      <core:ref>collection1</core:ref>
    </core:relationship>
    <core:relationship type="arfvocab:isAbout" subject="xccdf1">
      <core:ref>asset0</core:ref>
    </core:relationship>
  </core:relationships>

You can then use the oscap tool to create a HTML report, also like I've done above:

# oscap xccdf generate report /tmp/results.xml > arf-report.html

Let's dig through the results.

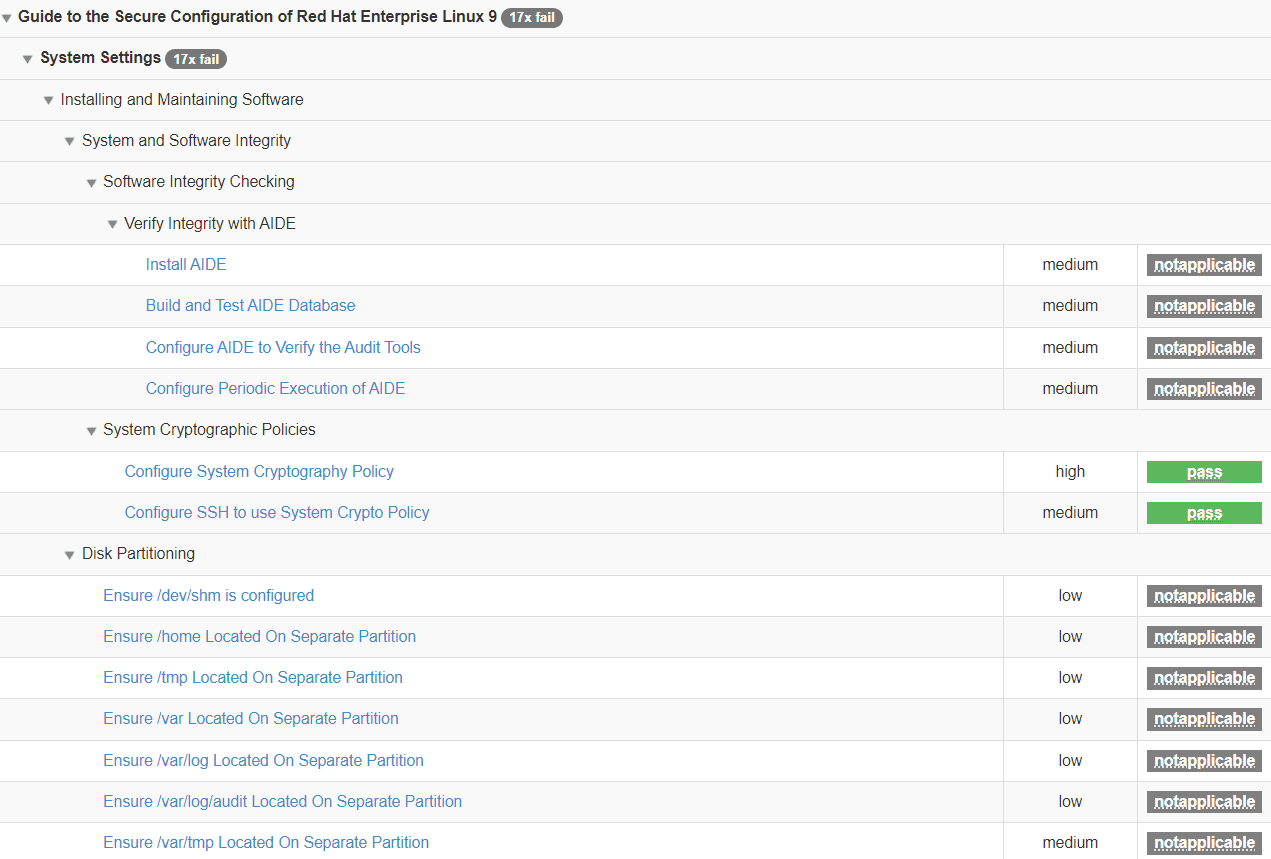

Firstly, you can see that a lot of the System Settings are reported as notapplicable. This is because these CIS Benchmark configuration checks are not relevant inside a container environment. Disk partitioning doesn't make sense inside a container environment, neither does installing the Advanced Intrusion Detection Environment (AIDE), and watching for changed files. The Configure SSH to use System Crypto Policy check is passing here - but we should remove sshd from the container and make sure it's not exposing SSH!

results1

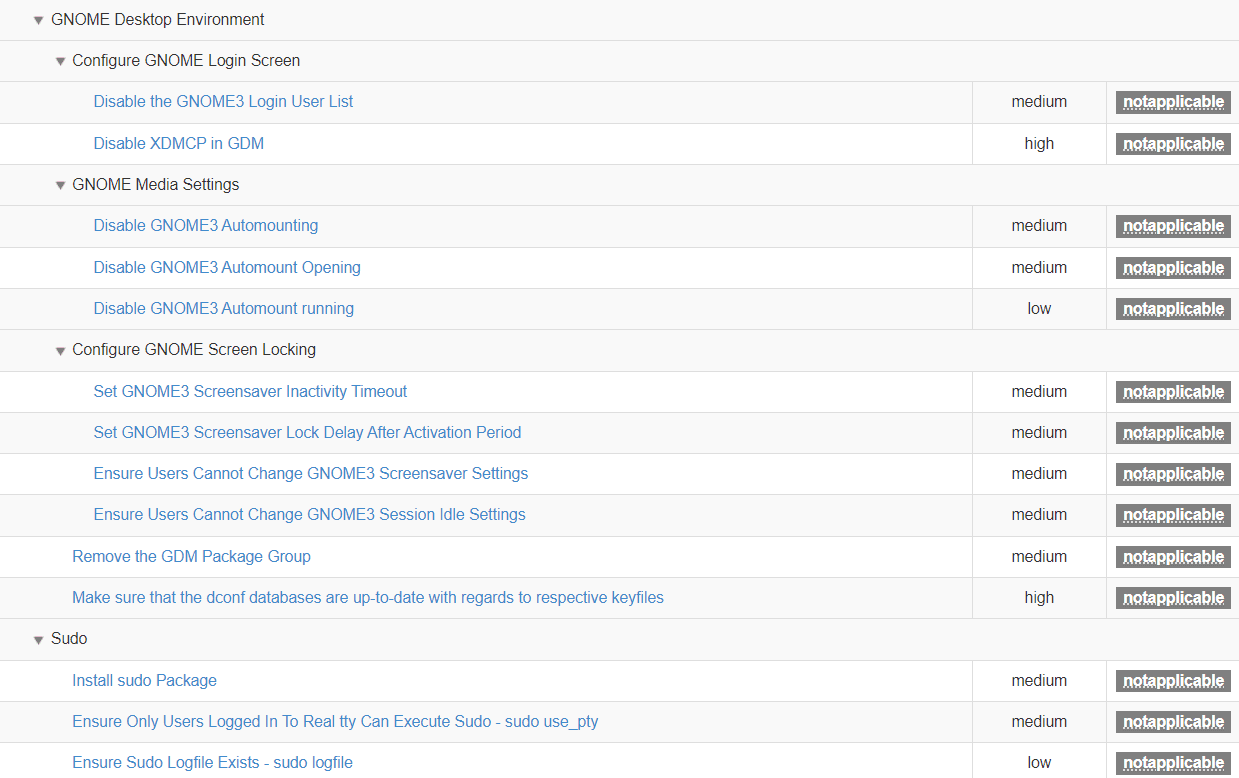

Digging further through the results, we can also see that the GNOME checks are all reported as notapplicable, as are the sudo rules. This container image doesn't have sudo installed:

$ podman run registry.access.redhat.com/ubi9:latest sudo
Error: crun: executable file `sudo` not found in $PATH: No such file or directory: OCI runtime attempted to invoke a command that was not found

Which is great - because there's no reason I should really need to run sudo inside a container.

results2

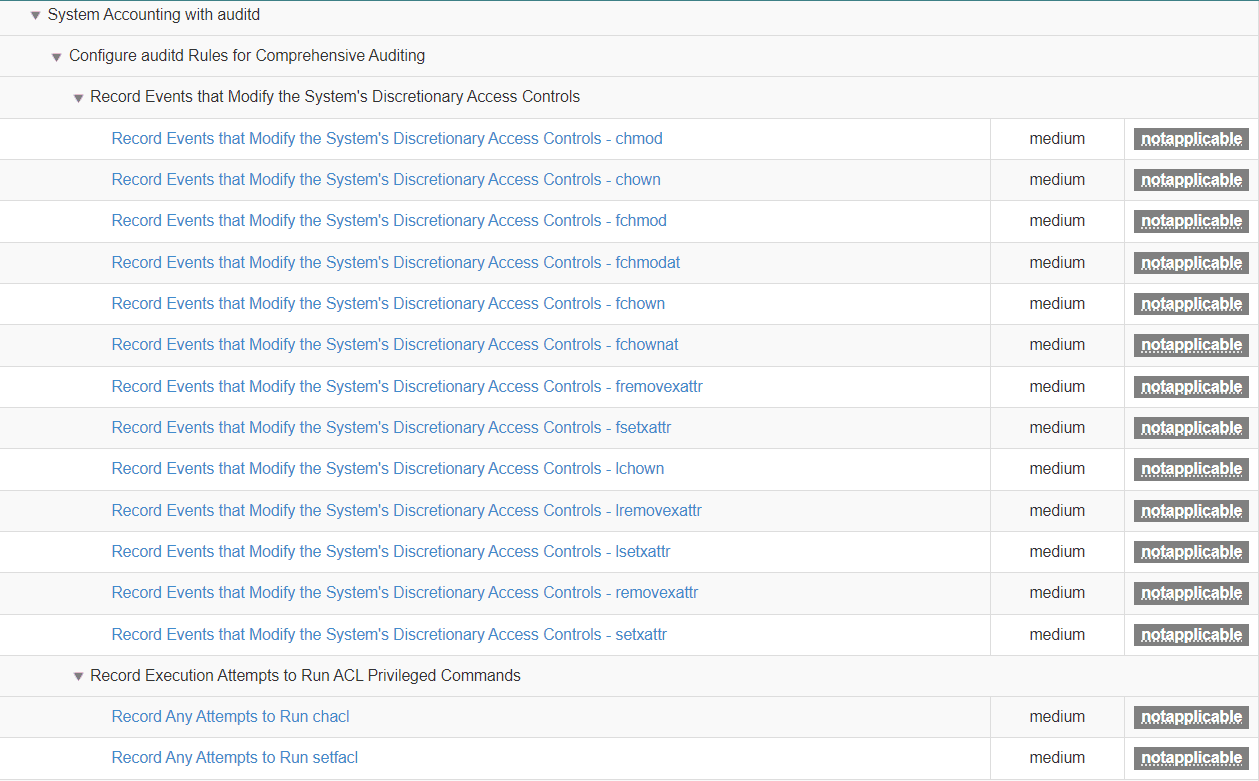

We can also see that all of the auditd checks are also listed as not applicable - because auditd doesn't run in the container, but on the OpenShift node.

results3

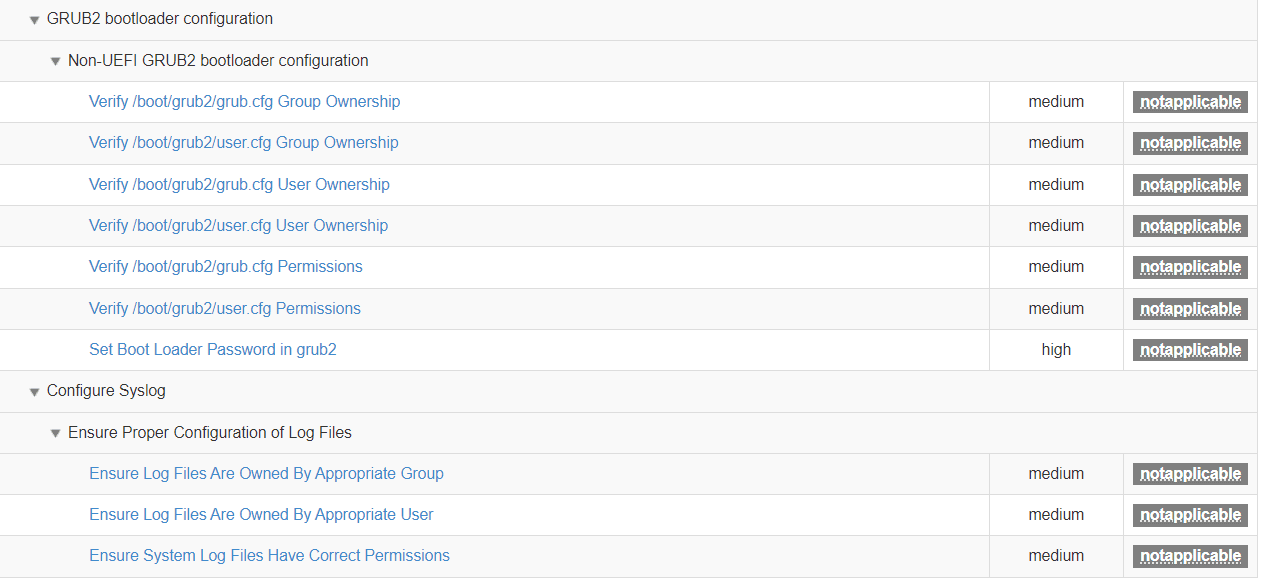

... and the same for the GRUB2 and Syslog configuration:

results4

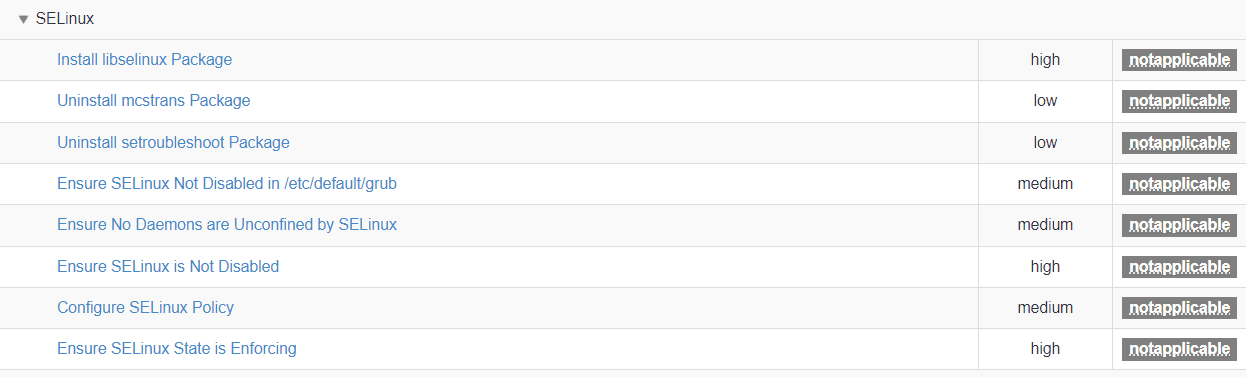

SELinux checks are also listed as notapplicable. OpenShift enforces SELinux policy at the nodes, and SELinux has no place in the container.

results5

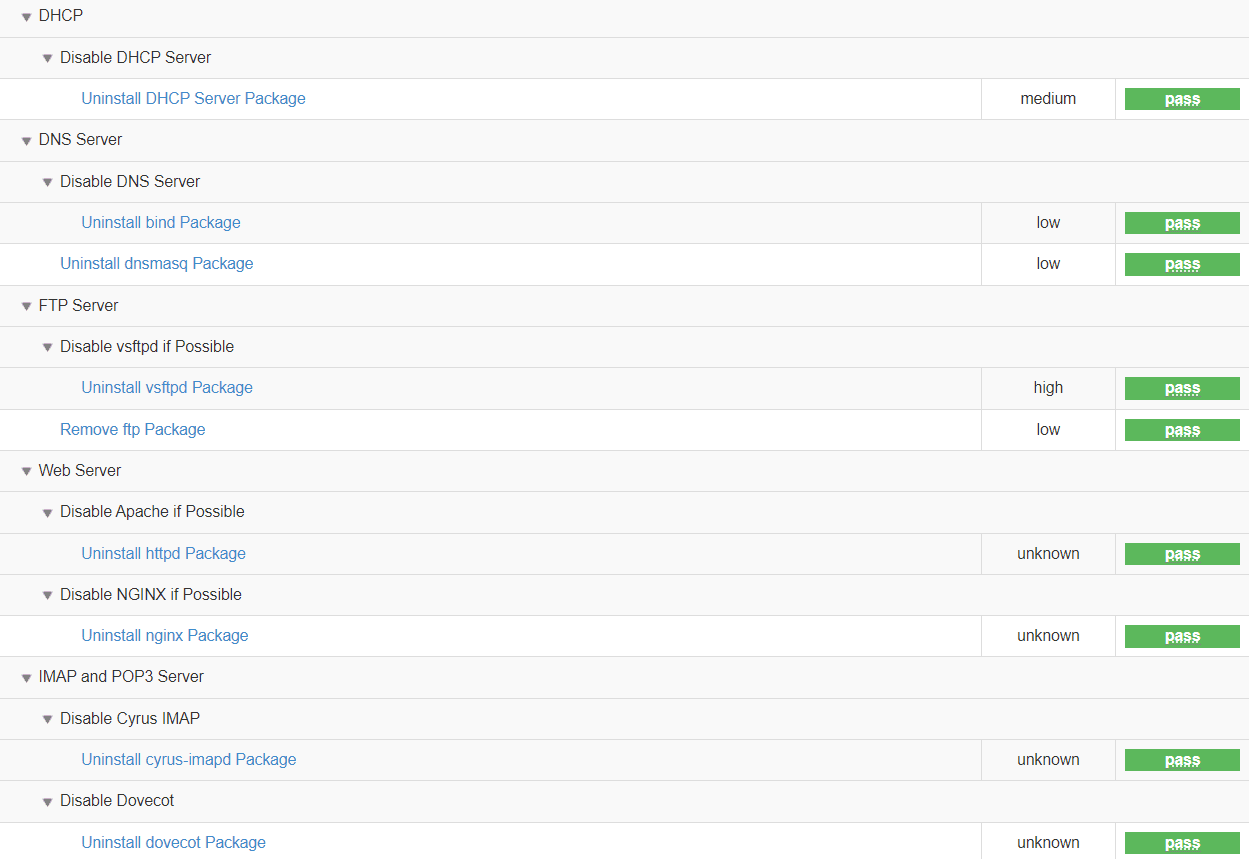

I would suggest that the only checks it really makes sense to implement from the CIS Benchmark would be the checks validating that certain packages are not installed. You can see some examples here:

results6

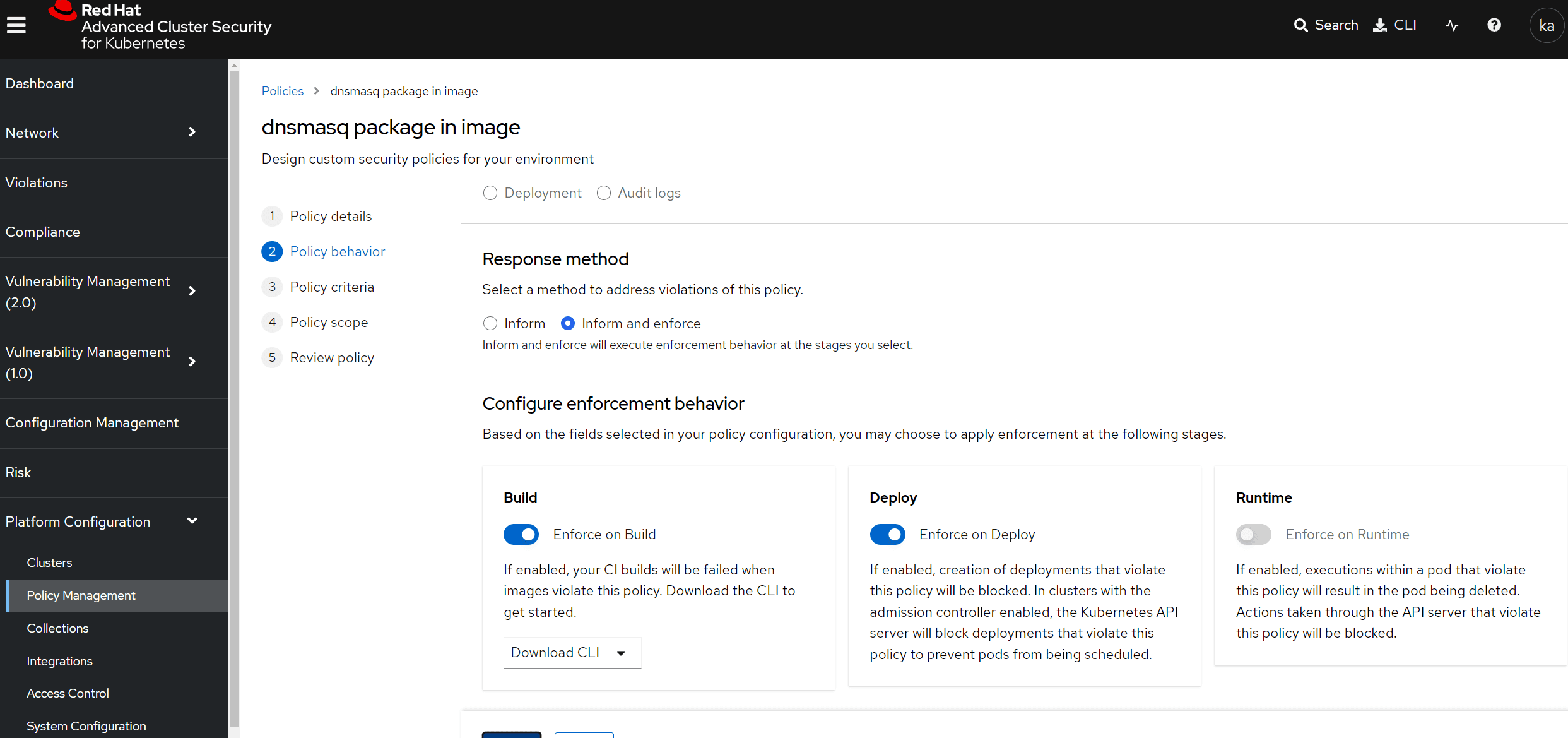

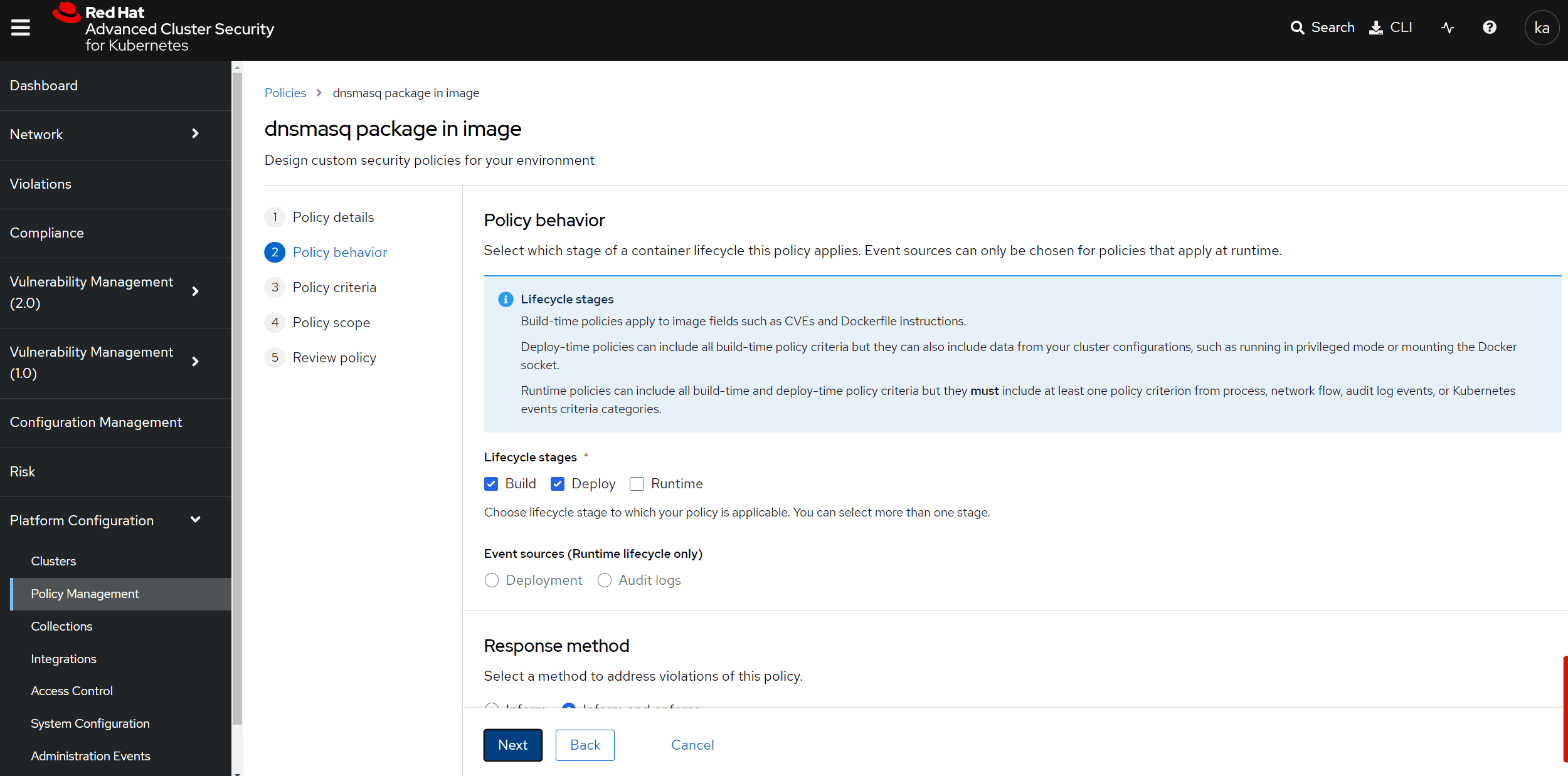

You could use oscap-podman to do this with a customised SCAP profile, like we've done here. Or, you could create a new policy in Red Hat Advanced Cluster Security for Kubernetes (RHACS) that checks this at deployment and build-time, and can be integrated with CI/CD pipelines via roxctl. For example, here's a policy that checks whether the dnsmasq package is present in a container image:

dnsmasq1
dnsmasq2
dnsmasq3
dnsmasq4

Here's a JSON representation of this policy, which you can import directly into a Red Hat Advanced Cluster Security for Kubernetes (RHACS) instance:

{
    "policies": [
        {
            "id": "6cf986c6-6356-43a8-932d-afcb1f580acb",
            "name": "dnsmasq package in image",
            "description": "Alert on deployments with the dnsmasq package present",
            "rationale": "Removing dnsmasq is one of the CIS Benchmark controls for Red Hat Enterprise Linux (RHEL)",
            "remediation": "Run `sudo dnf erase dnsmasq` in the image build for production containers.",
            "disabled": false,
            "categories": [
                "Security Best Practices"
            ],
            "lifecycleStages": [
                "BUILD",
                "DEPLOY"
            ],
            "eventSource": "NOT_APPLICABLE",
            "exclusions": [
                {
                    "name": "",
                    "deployment": {
                        "name": "master-etcd-openshift-master-.*",
                        "scope": {
                            "cluster": "",
                            "namespace": "kube-system",
                            "label": null
                        }
                    },
                    "image": null,
                    "expiration": null
                },
                {
                    "name": "",
                    "deployment": {
                        "name": "token-refresher",
                        "scope": {
                            "cluster": "",
                            "namespace": "openshift-monitoring",
                            "label": null
                        }
                    },
                    "image": null,
                    "expiration": null
                },
                {
                    "name": "",
                    "deployment": {
                        "name": "csi-azuredisk-node-win",
                        "scope": {
                            "cluster": "",
                            "namespace": "kube-system",
                            "label": null
                        }
                    },
                    "image": null,
                    "expiration": null
                }
            ],
            "scope": [],
            "severity": "MEDIUM_SEVERITY",
            "enforcementActions": [
                "FAIL_BUILD_ENFORCEMENT",
                "SCALE_TO_ZERO_ENFORCEMENT",
                "UNSATISFIABLE_NODE_CONSTRAINT_ENFORCEMENT"
            ],
            "notifiers": [],
            "lastUpdated": "2023-11-27T12:16:51.003715212Z",
            "SORTName": "",
            "SORTLifecycleStage": "",
            "SORTEnforcement": false,
            "policyVersion": "1.1",
            "policySections": [
                {
                    "sectionName": "",
                    "policyGroups": [
                        {
                            "fieldName": "Image Component",
                            "booleanOperator": "OR",
                            "negate": false,
                            "values": [
                                {
                                    "value": "dnsmasq="
                                }
                            ]
                        }
                    ]
                }
            ],
            "mitreAttackVectors": [],
            "criteriaLocked": false,
            "mitreVectorsLocked": false,
            "isDefault": false
        }
    ]
}

Wrapping up

In this article I've looked at the Center for Internet Security (CIS) Benchmarks. I looked at how to use the OpenSCAP tooling and SCAP datastreams provided with Red Hat Enterprise Linux (RHEL) to scan a system against a benchmark, and create reports.

I also looked at whether the benchmarks are applicable for container images. I think the answer is 'no' for a lot of controls, with the exception of those looking at package installation. I showed an example of a Red Hat Advanced Cluster Security for Kubernetes (RHACS) policy that can detect package installation during CI/CD pipeline builds or at deployment time.
